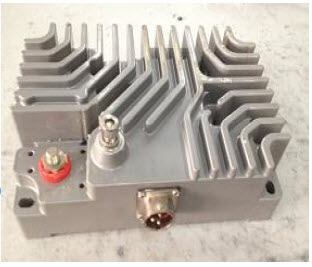

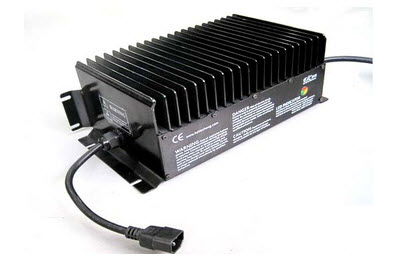

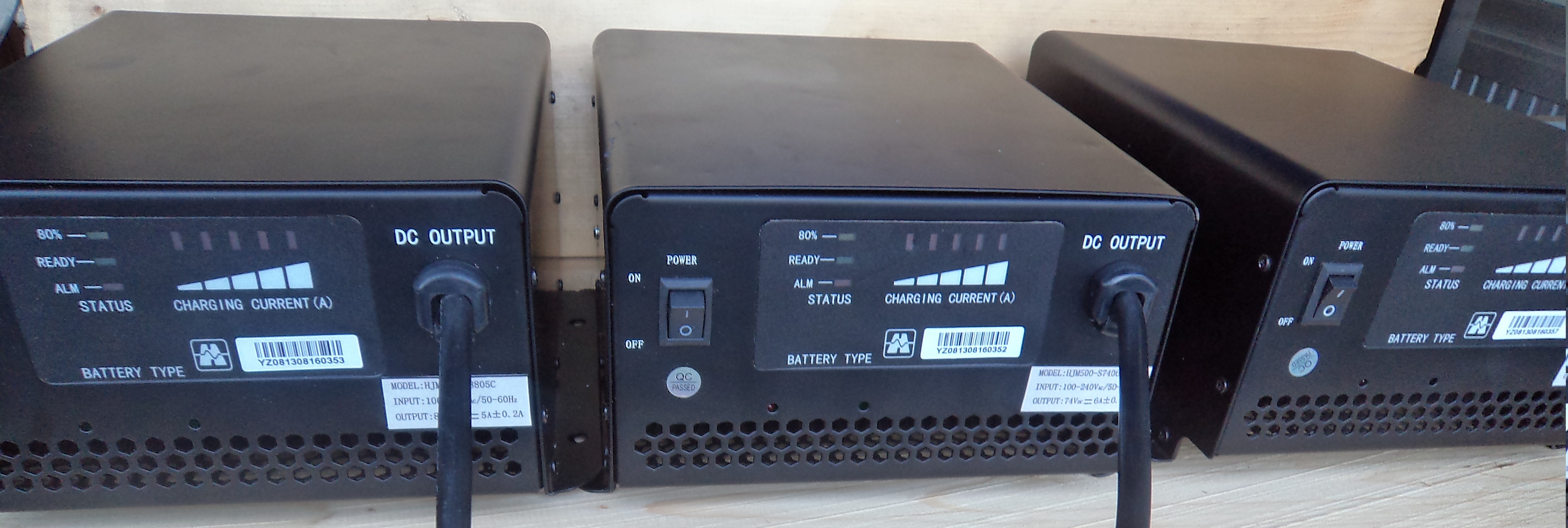

500Watt Series LiFe Charger, Size 210x175x110mm, Weight = 3.5kg.
4S, 12V-pack, 30A
8S, 24V-pack, 15A
12S, 36V-pack, 10A
16S, 48V-pack, 7A
20S, 60V-pack, 6A
24S, 72V-pack, 5A

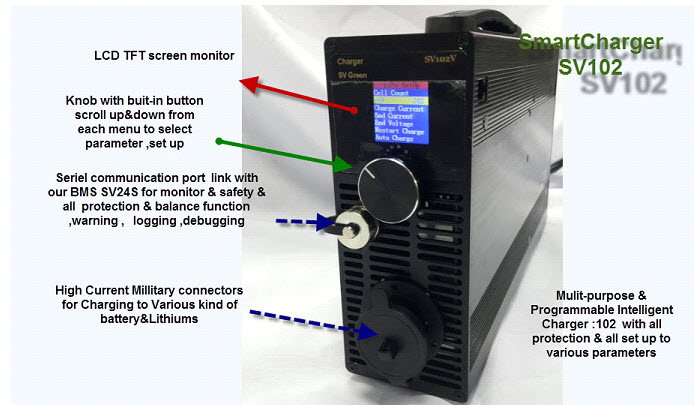

" Intelligent Smart Charger SV102 " ( with safety communication link to BMS SV24S)
Programmable ,set up Various parameter and cut-off voltage , over volt limit cut-off , ETC for Various kind of Lithium cell type power continuous 1500w-1800w with internal programmable power supply. |
|
 |
Battery Auto Charger Quick - charge(BFC Type / CAN BUS Type)
LiFe_Auto Charger Ecconomy Type Click Here
 |

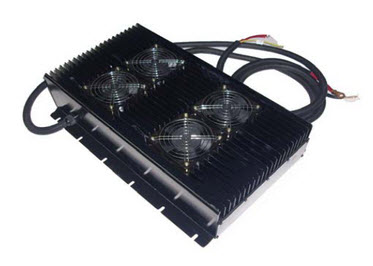

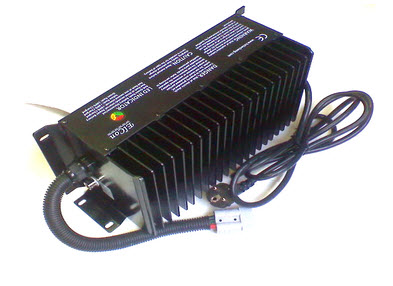

700W HF battery charger
|

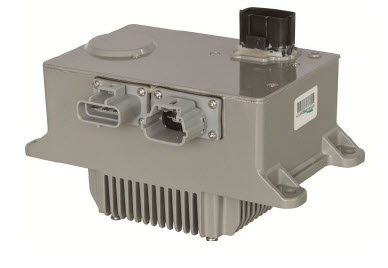

1.8KW HF/PFC Battery Charger
Size (mm)：203(L) × 135(W) × 125(H)
Net Weight：4kg
|

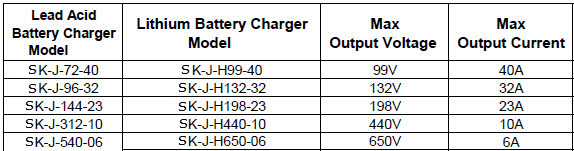

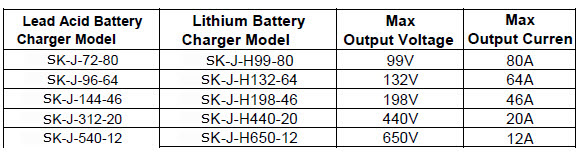

1.8KW Charger SK-J Sereis On Board Battery ChargerTechinical Data:
AC Input Voltage Range AC85V~AC265V
AC Input Frequency 45~65 Hz
AC Power Factor ≥0.98
Full Load Efficiency ≥93％
Mechanical Shock
& Vibration QC/T 895-2011
Resistance Level
Environmental
Enclosure IP67
Operating Temperature-40℃~+55℃ (-40℉~+131℉)
Storage Temperature -40 ℃ ~+100 ℃ (-40 ℉~+212℉)
Cooling Method Force Air Cooling
Control Method(Only
for Lithium battery)
1) With CAN BUS
2) Enable Wire
|

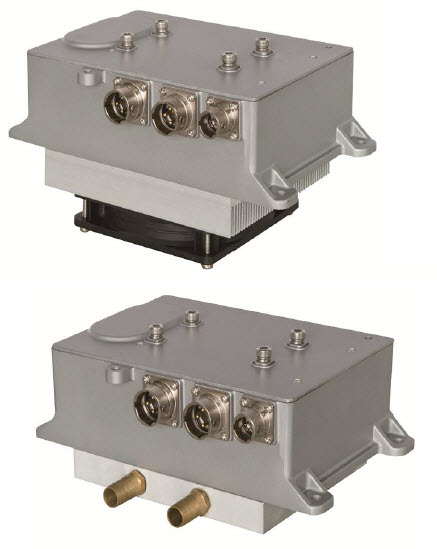

3.3KW HF/PFC Battery Charger
Size (mm)：239(L) × 108.5(W) × 131(H)
Net Weight: 6kg |
3.3KW Charger SK-J Sereis On Board Battery Charger
Techinical Data:
AC Input Voltage
Range AC85V~AC265V
AC Input 45~65 Hz
AC Power Factor ≥0.98
Full Load ≥93％
Mechanical Shock
& Vibration QC/T 895-2011
Resistance Level
Cooling Method 1)Force Air Cooling
2) Liquid Cooling
Environmental
Enclosure IP67
Operating Temperature -40℃~+55℃ (-40℉~+131℉)
Storage 1)Natural Cooling 2)Enforce
Temperature Air Cooling 3) Liquid Cooling
The Output for
Accessory Power 12V 5A OR 24V 5A
Control
Method(Only for Lithium battery)
1) With CAN BUS
2) Enable Wire
|

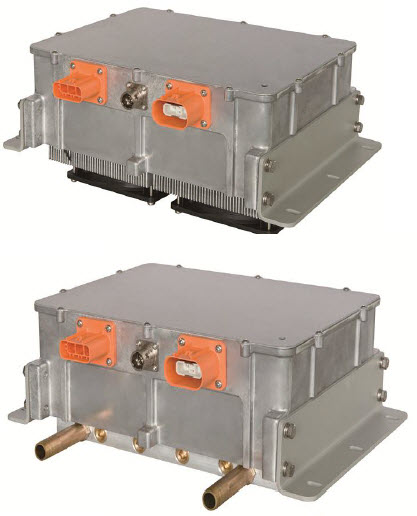

6.6KW HF/PFC Battery Charger
Size (mm)：335(L) × 230(W) × 160(H)
Net Weight: 15kg |
6.6KW Charger SK-J Sereis On Board Battery Charger
Techinical Data:
AC Input Voltage Range AC85V~AC265V
AC Input Frequency 45~65 Hz
AC Power Factor ≥0.98
Full Load Efficiency ≥93％
Mechanical Shock
& Vibration Resistance Level QC/T 895-2011
Cooling Method
1)Force Air Cooling
2) Liquid Cooling
Environmental IP67
Operating Temperature -40℃~+55℃ (-40℉~+131℉)
Storage Temperature
1)Natural Cooling
2)Enforce Air Cooling
3)The Output for Liquid Cooling 12V 5A OR 24V 5A
Accessory Power
Control Method(Only for
Lithium battery)
1) With CAN BUS
2) Enable Wire
|
1KW DC/DC Converter
Size (mm)：180(L) × 130(W) × 63(H)
Net Weight：2.65kg |

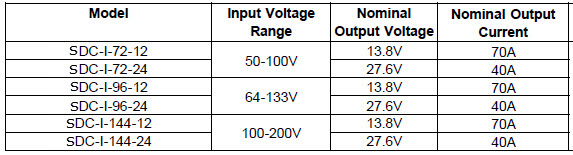

1KW DC/DC Converter SDC-J Series DC/DC Converter
Max Output Power: 1000W
Nominal Output Current(@12V): 70A
Nominal Output Current(@24V): 40A
Max Efficiency ≥93％
Voltage Regulation ≤1.5%
IP Standard: IP67
Operating Temperature: -40℃~+60℃
Storage Temperature: －45～105℃
Insulation Resistance: In the environment of (23±2) ℃ and moisture at 80%-90%
Noisy Distance in 1.5m,Noisy≤50dB
Control Method: Natural Cooling
|

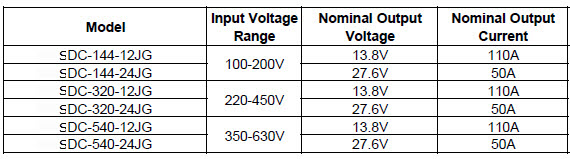

1.5KW DC/DC Converter
Size (mm)：222(L) × 109(W) × 79(H)
Net Weight：4kg |
1.5KW DC/DC Converter SDC-J Series DC/DC Converter
Max Output Power: 1500W
Nominal Output Current(@12V): 110A
Nominal Output Current(@24V): 50A
Max Efficiency ≥93％
Voltage Regulation ≤1.5%
IP Standard: IP67
Operating Temperature: -40℃~+60℃
Storage Temperature: －45～105℃
Insulation Resistance: In the environment of (23±2) ℃ and moisture at 80%-90%
Noisy Distance in 1.5m,Noisy≤50dB
Cooling Method: 1)Natural Cooling 2)Enforce Air Cooling 3) Liquid Cooling
Control Method: 1) No Enable 2)12V/24V Enable 3) CAN Protocol
|

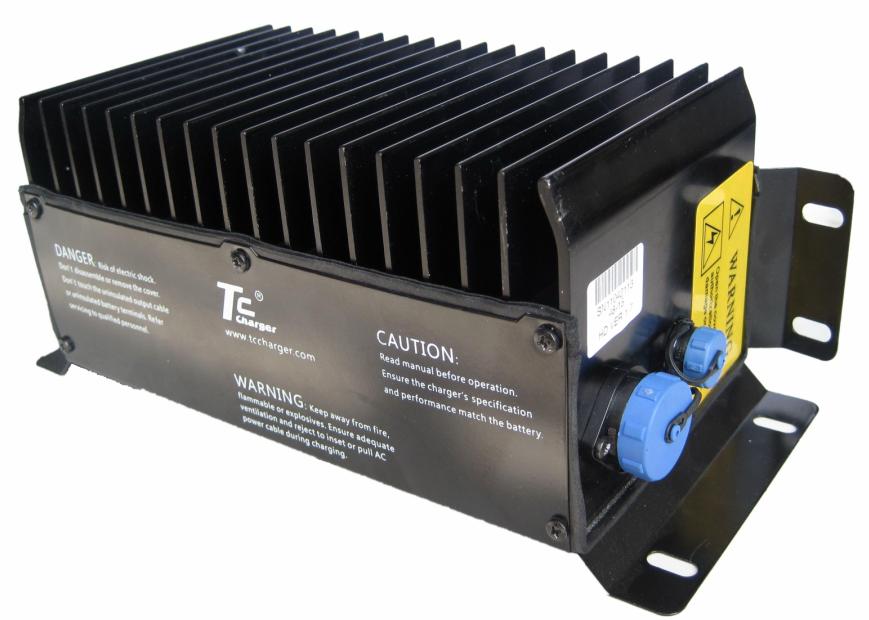

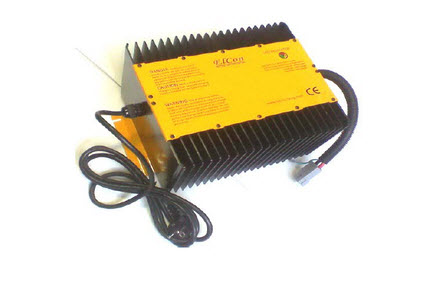

1500W BFC Charger of LithiunBatt
|
Specification |
Model |
Output Voltage-Nominal |
Output Voltage-Maximun |
Output Current-Maximun |
TCCH-24-40 |
24V |
35V |
40A |
TCCH-36-33 |
36V |
51V |
33A |
TCCH-48-25 |
48V |
65V |
25A |
TCCH-60-20 |
60V |
90V |
20A |
TCCH-72-16 |
72\V |
104V |
16A |
TCCH-84-14 |
84V |
114V |
14A |
TCCH-96-12 |
96V |
130V |
12A |
TCCH-120-10 |
120V |
161V |
10A |
TCCH-144-08 |
144V |
203V |
8A |
TCCH-156-07 |
156V |
217V |
7A |
TCCH-192-6.2 |
192V |
258V |
6.2A |
TCCH-240-05 |
240V |
320V |
5A |
|
2000W BFC Charger of LithiunBatt
|
Specification |
Model |
Output Voltage-Nominal |
Output Voltage-Maximun |
Output Current-Maximun |
TCCH-48-35 |
48V |
66V |
35A |
TCCH-60-30 |
60V |
83V |
30A |
TCCH-72-25 |
72V |
96V |
25A |
TCCH-84-21 |
84V |
112V |
21A |
TCCH-96-18 |
96V |
130V |
18A |
TCCH-108-16 |
108V |
145V |
16A |
TCCH-120-15 |
120V |
168V |
15A |
TCCH-144-12 |
144V |
192V |
12A |
TCCH-156-11 |
156V |
208V |
11A |
TCCH-168-10 |
168V |
234V |
10A |
TCCH-180-09 |
180V |
243V |
9A |
TCCH-192-09 |
192V |
258V |
9A |
TCCH-216-08 |
216V |
290V |
8A |
TCCH-288-06 |
288V |
389V |
6A |
TCCH-312-5.5 |
312V |
417V |
5.5A |
|
3000W BFC Charger of LithiunBatt
|
Specification |
| Model |
Output Voltage-Nominal |
Output Voltage-Maximun |
Output Current-Maximun |
TCCH-24-80 |
24V |
35V |
80A |
TCCH-36-66 |
36V |
51V |
66A |
TCCH-48-50 |
48V |
65V |
50A |
TCCH-60-40 |
60V |
90V |
40A |
TCCH-72-32 |
72V |
104V |
32A |
TCCH-84-28 |
84V |
114V |
28A |
TCCH-96-24 |
96V |
130V |
24A |
TCCH-120-20 |
120V |
161V |
20A |
TCCH-144-16 |
144V |
203V |
16A |
TCCH-156-14 |
156V |
217V |
14A |
TCCH-192-12.4 |
192V |
258V |
12.4A |
TCCH-240-10 |
240V |
320V |
10A |
|
4000W BFC Charger of LithiunBatt
|
Specification |
| Model |
Output Voltage-Nominal |
Output Voltage-Maximun |
Output Current-Maximun |
TCCH-48-70 |
48V |
66V |
70A |
TCCH-60-60 |
60V |
83V |
60A |
TCCH-72-50 |
72V |
96V |
50A |
TCCH-84-42 |
84V |
112V |
42A |
TTCH-96-36 |
96V |
130V |
36A |
TCCH-108-32 |
108V |
145V |
32A |
TCCH-120-30 |
120V |
168V |
30A |
TCCH-144-24 |
144V |
192V |
24A |
TCCH-156-22 |
156V |
208V |
22A |
TCCH-168-20 |
168V |
234V |
20A |
TCCH-180-18 |
180V |
243V |
18A |
TCCH-192-18 |
192V |
258V |
18A |
TCCH-216-16 |
216V |
290V |
16A |
TCCH-288-12 |
288V |
389V |
12A |
TCCH-312-11 |
312V |
417V |
11A |
|
6000W BFC Charger of LithiunBatt
|
Specification |
| Model |
Output Voltage-Nominal |
Output Voltage-Maximun |
Output Current-Maximun |
TCCH-48-105 |
48V |
66V |
105A |
TCCH-60-90 |
60V |
83V |
90A |
TCCH-72-75 |
72V |
96V |
75A |
TCCH-84-63 |
84V |
112V |
63A |
TCCH-96-54 |
96V |
130V |
54A |
TCCH-108-48 |
108V |
145V |
48A |
TCCH-120-45 |
120V |
168V |
45A |
TCCH-144-36 |
144V |
192V |
36A |
TCCH-156-33 |
156V |
208V |
33A |
TCCH-168-30 |
168V |
234V |
30A |
TCCH-180-27 |
180V |
243V |
27A |
TCCH-192-27 |
192V |
258V |
27A |
TCCH-216-24 |
216V |
290V |
24A |
TCCH-288-18 |
288V |
389V |
18A |
TCCH-312-16.5 |
312V |
417V |
16.5A |
|
8000W BFC Charger of LithiunBatt
|
Specification |
| Model |
Output Voltage-Nominal |
Output Voltage-Maximun |
Output Current-Maximun |
TCCH-48-140 |
48V |
66V |
140A |
TCCH-60-120 |
60V |
83V |
120A |
TCCH-72-100 |
72V |
96V |
100A |
TCCH-84-84 |
84V |
112V |
84A |
TCCH-96-72 |
96V |
130V |
72A |
TCCH-108-64 |
108V |
145V |
64A |
TCCH-120-60 |
120V |
168V |
60A |
TCCH-144-48 |
144V |
192V |
48A |
TCCH-156-44 |
156V |
208V |
44A |
TCCH-168-40 |
168V |
234V |
40A |
TCCH-180-36 |
180V |
243V |
36A |
TCCH-192-36 |
192V |
258V |
36A |
TCCH-216-32 |
216V |
290V |
32A |
TCCH-288-24 |
288V |
389V |
24A |
TCCH-312-22 |
312V |
417V |
22A |
|
|
