Multi axis units
High load capacity, speed and precision.


INTRODUCTION - Multi-axis-units

Advantages :
high dynamic load capacity achieved by steel profiles
high load capacity, speed and precision
simple, modular and less costly design
better resistant against dust and dirt
less maintenance needed
short delivery times


INTRODUCTION - <br> <br> Multi-axis-units

SLE - 0Load capacity up to 100 kg



SLE - 2Load capacity up to 1000 kg



SLE - 3Load capacity up to 2000 kg



ALE Load capacity up to 100 kg



DLE Load capacity up to 1000 kg

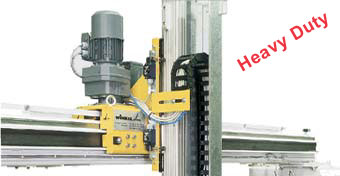

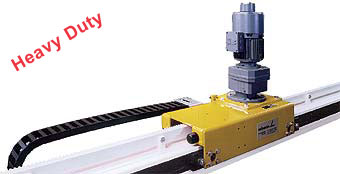

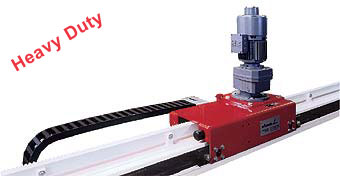

Type Heavy Duty
Payload in kg, Z-axis
Repeatability*
Speed
Applications
SLE-0
100
up to
± 0,5 mm

up to
2m/s

Handling: foundries,
building material industry,
glass industry

SLE-2
1000
SLE-3
2000
*=Repeatability at positioning from one side

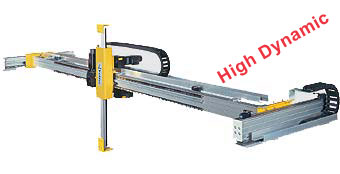

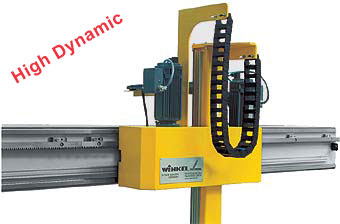

Type High Dynamic
Payload in kg, Z-axis
Repeatability*
Speed
Applications
ALE
100
up to
± 0,1 mm

up to
3 m/s

Handling: robot industry,
car manufacturing

DLE-125
125
DLE-400
400
DLE-1000
1000
*=Repeatability at positioning from one side
