Combined Bearings
Lifting and handling in a economical way.

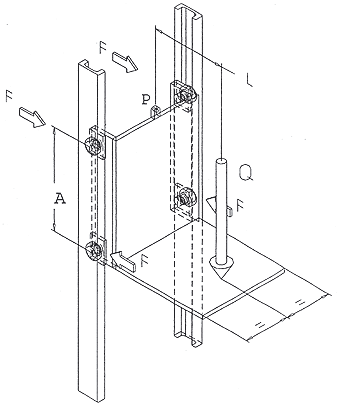

Dimensioning /calculation of the reel load



Q = Load capacity (N)
L = Load distance to suspension point (mm)
P = Suspension point
A = Bearing distance (mm) recommended 500-1000 mm

Formula
F max [N] = (Q * L) / (2 * A)

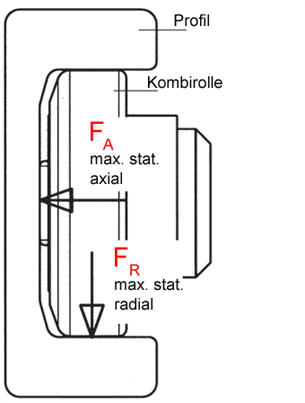

stat.radial

To avoid wear out in the profile, which is not hardened, the pressure between bearing and profile should be max.
P zul = 860 N/mm² for Nb-profiles (St.0-St.6 + PR0-PR6)
P zul = 750 N/mm² for all profiles except Nb-series.
Here indicated are F max stat radial + axial for each bearing.

Selection of bearings over the hertzian pressure


Radial Bearing
Combined
Bearing

Axial Bearing
fix
Combined
Bearing

Axial Bearing
adjustable
Combined
Bearing

Axial Bearing
adjustable
Combined
Bearing with
eccentric
bearing
Combined
Bearing with
combined
bolt
FR KN

max. stat.
radial
FA KN

max. stat.
axial
Profiles
-
4.052 P
-
-
-
-
0,80
0,40
A
-
-
-
4.053
-
-
-
-
5,23
1,68
S
-
-
(PR) 2.054
(PR) 4.054
(PR) 4.454
(PR) 4.072
JC 4.054
KB (PR) 4.072
9,40
3,10
0 NB
PR 0 NB
-
(PR) 2.055
(PR) 4.055
(PR) 4.455
(PR) 4.073
JC 4.055
KB (PR) 4.073
11,30 (8,59)
3,73 (2,86)
1 NB
PR 1 NB
(3018)
(PR) 2.056
(PR) 4.056
(PR) 4.456
(PR) 4.074
JC 4.056
KB (PR) 4.074
11,72
3,87
2 NB
PR 2 NB
-
-
4.057
4.057
4.075
-
-
(8,92)
(2,97)
-
-
(3019)
(PR) 2.058
(PR) 4.058
(PR) 4.458
(PR) 4.076
JC 4.058
KB (PR) 4.076
20,47 (15.57)
6,76 (5,19)
3 NB
PR 3 NB
(3020)
-
4.059
4.059
4.077
-
-
(15,47)
(5,15)
-
-
(2912)
-
4.060
4.060
4.078
-
-
(16,49)
(5,49)
-
-
(3100)
(PR) 2.061
(PR) 4.061
(PR) 4.461
(PR) 4.0784
JC 4.061
KB (PR) 4.0784
21,68
7,16
4 NB
PR 4 NB
-
(PR) 2.062
(PR) 4.062
(PR) 4.462
(PR) 4.079
JC 4.062
KB (PR) 4.079
30,92 (23,52)
10,20 (7,84)
5 NB
PR 5 NB
(3353)
(PR) 2.063
(PR) 4.063
(PR) 4.463
-
JC 4.063
-
54,02
17,80
6 NB
PR 6 NB
-
-
-
-
(PR) 4.080
-
KB (PR) 4.080
37,81
17,80
6 NB
PR 6 NB
-
-
-
4.089
-
-
-
41,71
13,91
10
-
-
-
-
4.090
-
-
-
58,00
19,40
16
-
-
-
-
4.091
-
-
-
84,00
28,00
18
-
-
-
-
4.092
-
-
-
101,50
33,90
28
-
-
-
-
4.093
-
-
-
139,40
46,50
36
42
-
