Multi axis units
High load capacity, speed and precision.

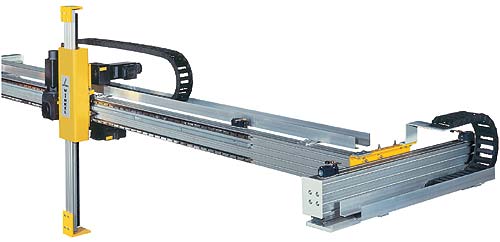

Aluminium linear unit Type ALE


with rack and pinion drive or timing belt drive

Technical characteristics:
Load capacity: 100 kg
Speed: max. 3 m/sec horizontal
max. 2 m/sec vertical
Repeatability: ± 0.2 mm (PR-linear system)
Stroke: 6 m

Longer axis modules on request.

The advantages:
high load capacity, speed and precision
simple, modular and less costly design
short delivery times
