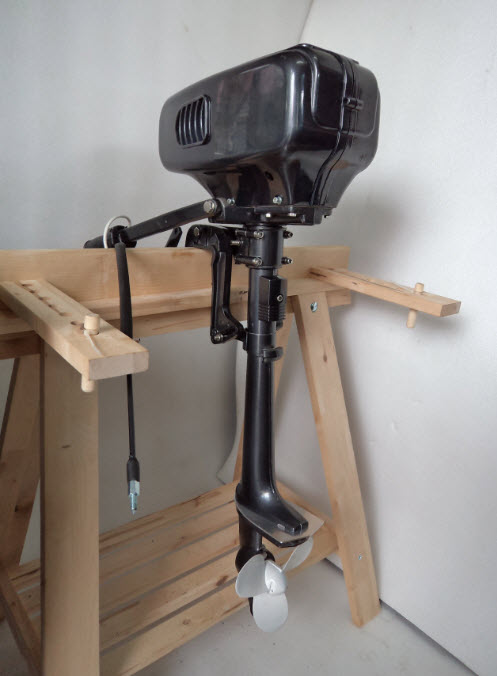

Electric Outboard Motors

Designed to be quiet for environmentally sensitive waters, these 1HP horsepower Electric Outboard Motors provides plenty of power for trolling and primary propulsion. Conventional construction and design provides trusted reliability.

• Motor: Water-cooled brushless,High efficiency ,Water coooled at motor base and fan (AIR) Cooled@ Rear Motor
• Voltage: 48 Volts DC,or 60 VDC
• Rated Current: 20A,Peak Current = 50A. (1 HP Version)
• Rated Current: 45A,Peak Current = 100A. (2 HP Version)
• Designed for salt water or fresh water use
• Included BLDC (Brushless)Controller,Thtottle,Switches (ON/OFF),Reverse ,Horn.

Model: 1 HP Tiller Short Shaft & 2 HP Tiller short shaft
  Dolphin 1 (1HP) Dolphin 2 (2HP)


Shaft Length: 25.88 inches (660 mm)

DC Volt Meter: Included on Cover

Weight: 10.4 kg.

Blade Diameter = 190 MM (7.45inches)

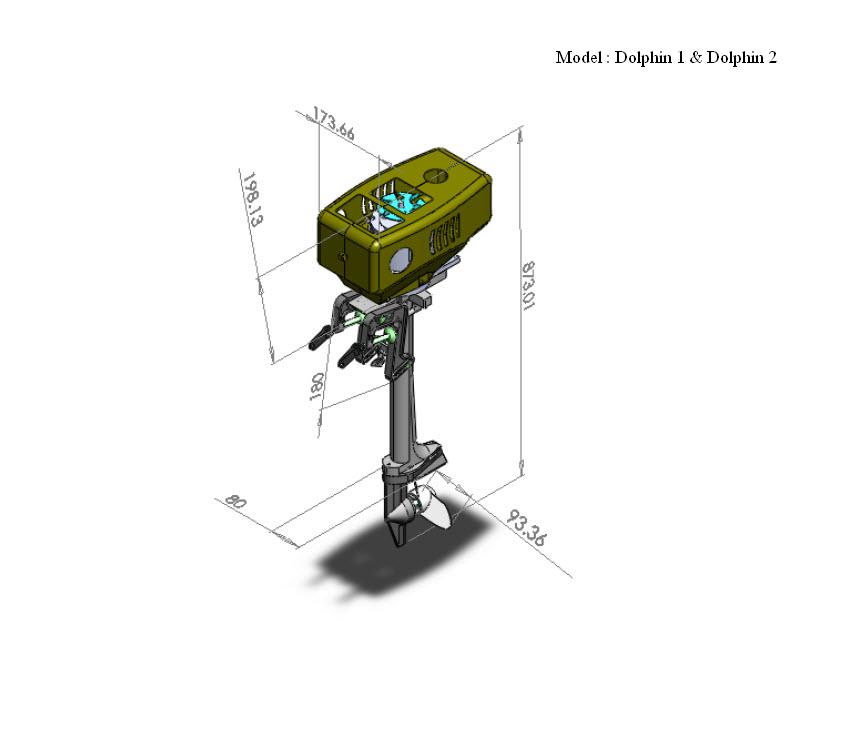

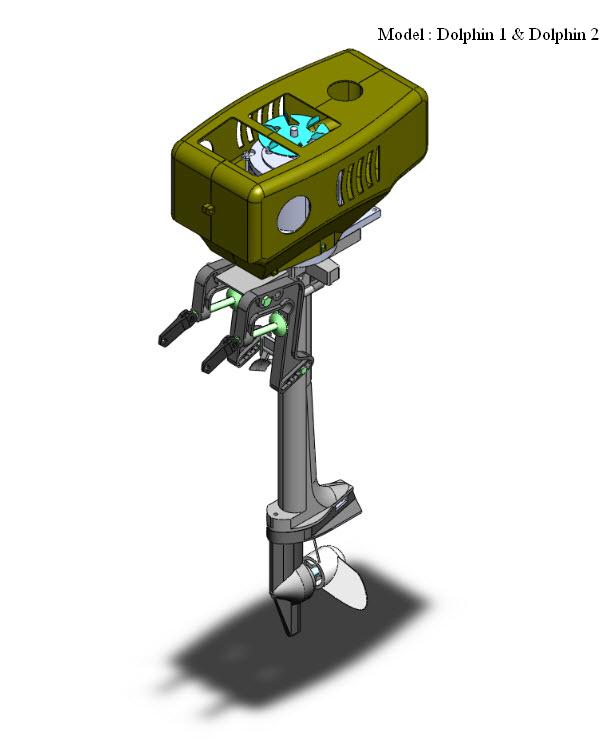

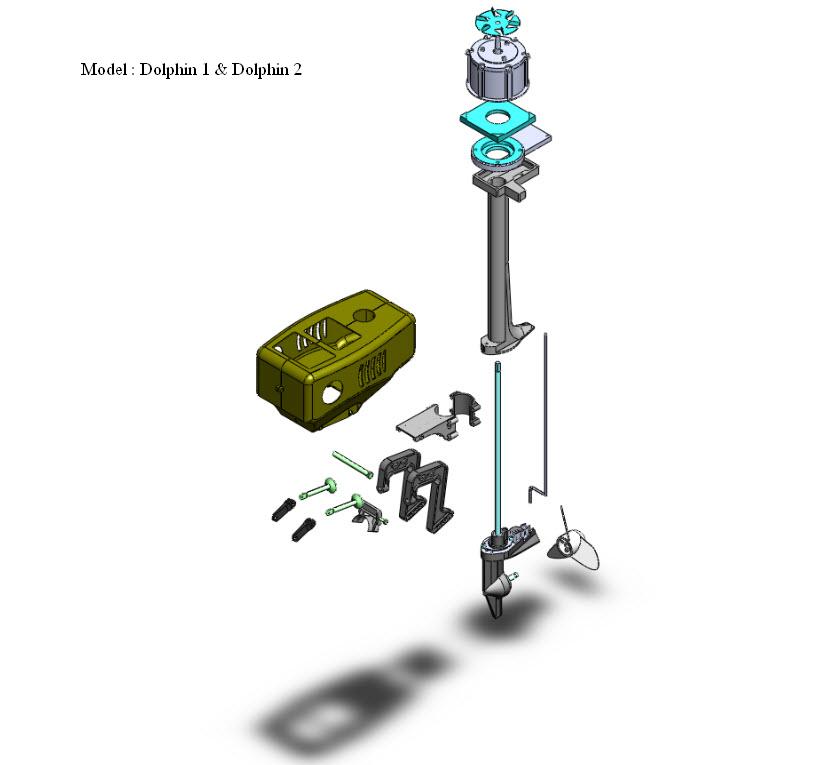

Drawings Model: 1 HP Tiller Short Shaft
