AC SERVO
AC/DC DSP Servo Amplifier and Software
  • Fast, precise servo setup and tuning.
  • Auto Phasing & Auto Tuning
  • Exceptional positioning accuracy & repeatability.
  • Optional output filter to minimize noise.
    Standard quadrature output from linear encoder feedback input.
    • 7xx8 Data Sheet
    7xx8 & Motion Explorer™ Manual
    Development Kit

    7xx8 Model Specification Overview
    Model
    Power
    Supply
    Current
    Cont./Peak
    Motor
    Watts/HP
    Size (in.)
     7228AC
     +32 to +132VAC
     10/20
    1kW/1.4
     7.50 x 6.94 x 2.72
     7428AC
     +32 to +264VAC
     10/20
     2kW/1.76
     7.50 x 6.94 x 2.72
     7228DC
     +45 to +186VDC
     10/20
     1kW/1.4
     7.00 x 5.55 x 2.00
     7428DC
     +45 to +373VDC
     10/20
     2kW/2.7
     7.00 x 5.55 x 2.00


      Motor Specifications


    Important: Motor files require Adobe Acrobat Reader to be viewed.


    Model Key Specifications

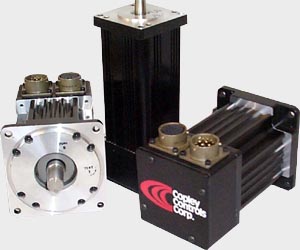

    NEMA Size 16 Motors
    CBL160BE-002 DC Brushless Servo Motor
  • 10:1 Gear Ratio
  • 600 rpm Rated speed (Gear output )
  • 142 oz-in Continuous stall torque (Gear output )
  • 427 oz-in Peak Torque (Gear output )
    • CBL162BE-001 DC Brushless Servo Motor
  • 6000 rpm Rated speed
  • 44 oz-in Continuous stall torque, 220 oz-in Peak Torque
  • Brushless slotless design for negligible detent torque and
       reduced torque ripple
    • CBL162BE-003 DC Brushless Servo Motor
  • 10' Cable hard wired, Shaft with Flat
  • 6000 rpm Rated speed
  • 44 oz-in Continuous stall torque, 220 oz-in Peak Torque
  • Brushless slotless design for negligible detent torque and
       reduced torque ripple

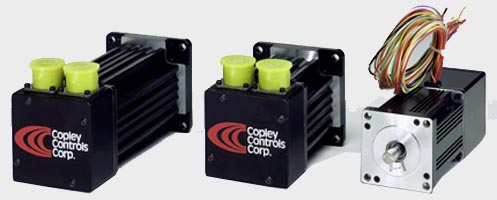

    • CBL162BE-004&5 DC Brushless Servo Motor
  • 10’ Cable hard wired, Shaft with Flat
  • Connectors per Lockheed Specification.
  • 6000 rpm Rated speed
  • 44 oz-in Continuous stall torque, 220 oz-in Peak Torque
    • CBL162BE-006 DC Brushless Servo Motor
  • 6000 rpm Rated speed
  • 44 oz-in Continuous stall torque, 220 oz-in Peak Torque
  • Brushless slotless design for negligible detent torque and
       reduced torque ripple
    • NEMA Size 23 Motors
    All feature brushless slotless design for negligible detent torque and
    educed torque ripple.
    CBL231AE-002 DC Brushless Servo Motor
  • 6000 rpm Rated speed
  • 50 oz-in Continuous stall torque, 230 oz-in Peak Torque
    • CBL232AE-001 DC Brushless Servo Motor
  • 4500 rpm Rated speed
  • 92 oz-in Continuous stall torque, 460 oz-in Peak Torque
    • CBL232BE-001 DC Brushless Servo Motor
  • 6000 rpm Rated speed
  • 98 oz-in Continuous stall torque, 477 oz-in Peak Torque
    • CBL233AE-001 DC Brushless Servo Motor
  • 2800 rpm Rated speed
  • 144 oz-in Continuous stall torque, 700 oz-in Peak Torque
    • CBL233BE-001 DC Brushless Servo Motor
  • 6000 rpm Rated speed
  • 140 oz-in Continuous stall torque, 685 oz-in Peak Torque
    • NEMA Size 34 Motors
    All feature brushless slotless design for negligible detent torque and
    reduced torque ripple.
    CBL341FE-001 DC Brushless Servo Motor
  • 6000 rpm Rated speed
  • 102 oz-in Continuous stall torque, 307 oz-in Peak Torque
    • CBL341FE-003 DC Brushless Servo Motor
  • IP65 Protection against a low pressure jet of water
  • 6000 rpm Rated speed
  • 102 oz-in Continuous stall torque, 307 oz-in Peak Torque
    • CBL343GE-001 DC Brushless Servo Motor
  • 4500 rpm Rated speed
  • 288 oz-in Continuous stall torque, 864 oz-in Peak Torque
    • CBL344FE-002 DC Brushless Servo Motor
  • IP65 Protection against a low pressure jet of water
  • 2365 rpm Rated speed
  • 320 oz-in Continuous stall torque, 960 oz-in Peak Torque
    • CBL344FE-003 DC Brushless Servo Motor
  • Includes Brake
  • IP65 Protection against a low pressure jet of water
  • 2365 rpm Rated speed
  • 320 oz-in continuous stall torque, 960 oz-in Peak Torque

    •
