Planetary Gearheads offer higher torque performance capabilities for our NEMA 23 frame step motors, both round frame designs and POWERMAX II. These precision speed reducers ensure smooth and accurate operation along with high reduction ratios. They are designed for quick, easy installation and long, maintenance-free service that will optimize your motion control scheme. Planetary gearheads are available alone or factory mounted to steppers.
    However you measure performance, these gearheads have the muscle. Coupled with our patented step motor Sigmax technology they extend dynamic output torques up to 4,240 oz-in. Available in one, two and three stage modular designs with standard ratios to 125:1, low backlash and high torsional stiffness plus case hardened gears and life-time lubrication, they are backed by a two year warranty.
Features Benefits
One, two and three stage designs
Broad torque range selection with ratios to 125:1
Modular design
Economical
Low backlash
Precise motion control
Case hardened gears, high load carrying capacity, sealed bearings, life-time lubrication
Long, trouble-free service life
High efficiencies
High power transfer capabilities

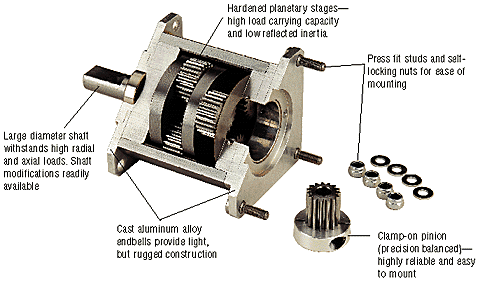

Large diameter shaft withstands high radial and axial loads - cast aluminum endbells
Rugged, reliable construction
IP56 protection
Protection from internal moving parts - also watertight
High torque to weight and torque to size ratios
High performance in compact sizes
Press fit studs and self-locking nuts
Quick, easy installation
Input speeds to 4000 RPM
Broad performance
Output shaft modifications readily available
To meet your application specific requirements
Factory mounted to motor or as gearhead only
To adapt to a variety of needs


    • Compact design
    • Life-time lubrication-no maintenance
    • High torque to weight and torque to size ratios
    • Modular construction
    • IP56 protection
    • Input/output rotate in same direction



Sample Model Number Code

These charts identify the components of typical model number codes for Planetary Gearheads.

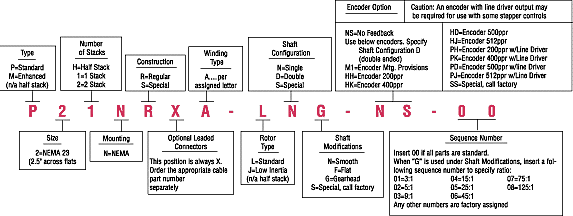

For factory mounted gearheads to: POWERMAX II® STEP MOTORS

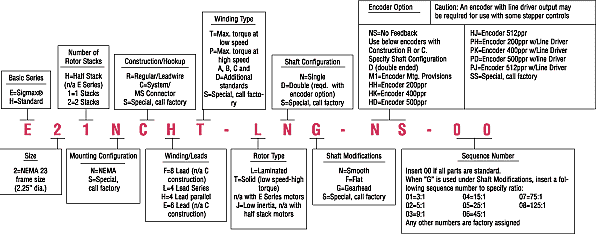

For factory mounted gearheads to: GENERAL AND SPECIAL PURPOSE STEP MOTORS

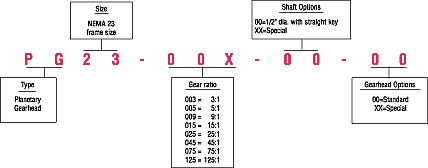

For: GEARHEAD ONLY (motor pinion and mounting hardware included)
