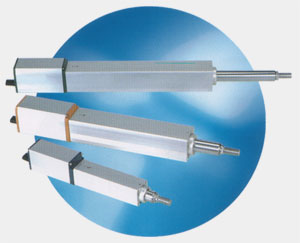

DSC series are servo cylinders which make it to be economic linear motion system, with adoption of step motor and simple mechanism structure.
They are optimal for feeding, picking & placing and transferring system.

Features

  • Multi-point position control
  • Easy operation, simple set-up
  • Optimal for economic robot system

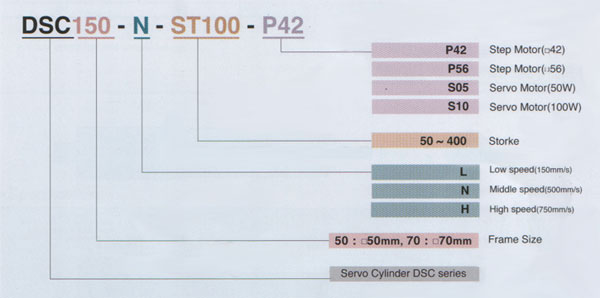

  • Model designation




    Specification

    Model

    DSC50

    DSC70

    Remar

    Applied
    moto
    r

    Servo Motor

    50W

    100W



    Step Motor

     42

    56



    Ball Screw Lead(mm)

    3

    10



    Maximum speed(mm/s)

    150

    500

    For servo motor application

    Force(kgf)

    30.5

    18.4

    For servo motor application

    Stroke(mm)

    50~300

    50~400



    Repeatability(mm)

    ±0.03

    ±0.03



    Applied controller

    iMAX-P Series

    When applying Servo Motor

    iS-J Series

    When applying Step Motor
