• Up to 32/32 I/O
  • 24V, 0.5A per output
  • Small footprint: 101 x 65.5. x 59 mm3

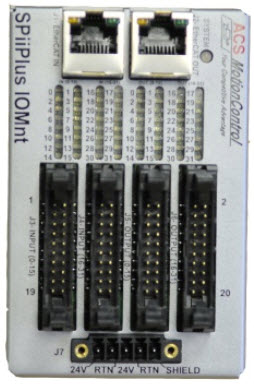

The SPiiPlus IOMnt line of EtherCAT® digital I/O modules offers an economical and compact design with up to 32 inputs and 32 outputs (24Vdc/0.5A each) with minimal power dissipation. There are four 20-pin connectors, one per 16 channels. It enables secure connection of plug connectors using insulation displacement contact, such as ribbon cables, thus significantly simplifying the wiring of many I/Os. 64 LEDs display the logical states of the inputs and outputs.

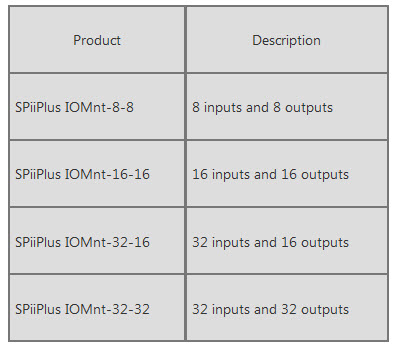

The SPiiPlus IOMnt line includes the following modules:








Download SPiiPlusIOMnt datasheet
Download Certificate of Conformity IOMnt / NTM-8
