EtherCAT Digital I/O Module
EtherCAT ® Digital I/O Modules

  • Powerful Digital I/O Modules For EtherCAT Network
  • Up to 32 Inputs and 32 Outputs
  • Compact and Cost effective

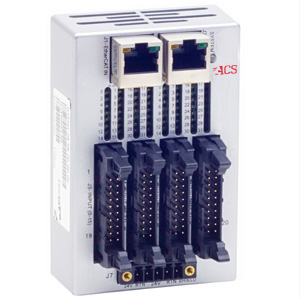

The IOMNT line of EtherCAT digital I/O modules offer an economical and compact design with up to 32
inputs and 32 outputs (24Vdc/0.5A each) with minimal power dissipation. There are four 20-pin connectors,
one per 16 channels. It enables secure connection of plug connectors using insulation displacement
contact, such as ribbon cables, thus significantly simplifying the wiring of many I/Os. 64 LEDs display the
logical states of the inputs and outputs.
