Most Powerful Motion Controller and EtherCAT Network Manager
The Most Powerful Motion Controller and EtherCAT® Network Manager

SPiiPlusES as a DS402 Multi-Axis EtherCAT® Drive node
- Can be managed by any EtherCAT Automation Controller
- Up to 8 axes utilizing standard DS402 CoE drive commands
- Up to 64 axes utilizing manufacturer's specific DS402 CoE drive commands
- Distributed clock
- Up to 5kHz EtherCAT cycle rate.

SPiiPlusES as an EhertCAT® master
- Identical to SPiiPlusEC, powerful EtherCAT Motion Controller
- Up to 64 axes and many I/Os
- Up to 5kHz EtherCAT cycle rate.
- for cable failure detection and recovery
- Can be synchronized to the distributed clock of the external network

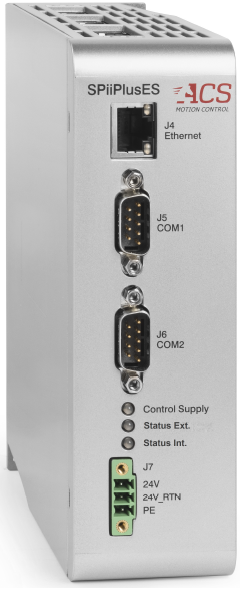

The SPiiPlusES is a high performance programmable motion controller and EtherCAT Master that can be connected as a node to any EtherCAT network utilizing the standard DS402 CAN Over EtherCAT (CoE) protocol. To the external EtherCAT Master it looks like a highly programmable multi-Axis motor drive

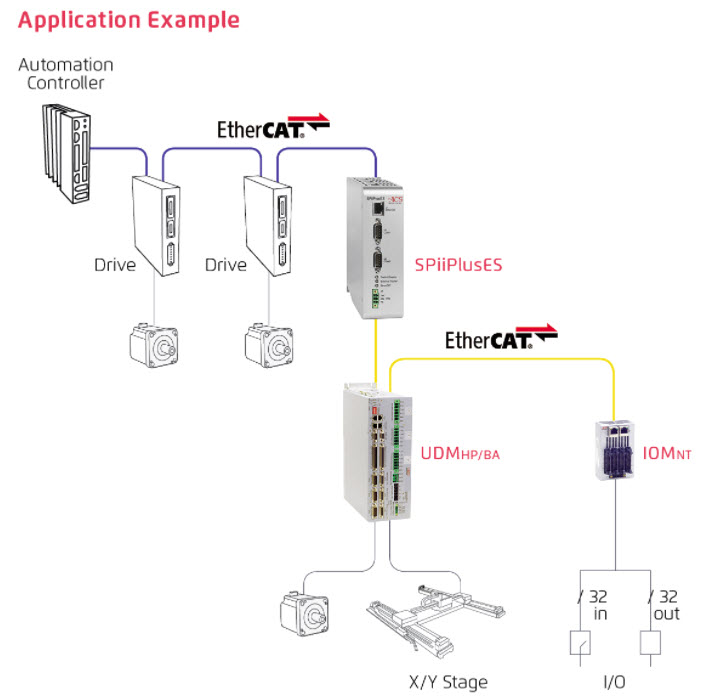

The SPiiPlusES expands the capability of any EtherCAT Automation Controller to manage up to 64 axes and thousands of I/O utilizing ACS EtherCAT sub-network. With up to 8 drives/axes, standard DS402 commands are used. For additional drives/axes, up to 64, DS402 manufacturer’s specific commands are used. It supports distributed clock and the ability to synchronize the two EtherCAT networks. Any application in the fields of Semiconductors, Laser micro-machining, Electronics manufacturing, digital printing and more, that uses an EtherCAT automation controller will benefit from the unique and advanced capabilities of ACS programmable motion controller and wide range of drives to enhanced accuracy and throughput.
Number of Axes
As a Master: Up to 64 axes
As a slave: Up to 8 axes, Thousands of I/O’s.

Motion Types
-Multi-axis point-to-point, jog, tracking and sequential multi-point motion
- Multi-axis segmented motion with look-ahead
- Arbitrary path with PVT cubic interpolation
- Third order profiles (S-curve)
- Smooth on-the-fly change of target position or velocity
- Inverse/Forward kinematics and coordinate transformations (at application level)
- Master-slave with position and velocity locking (electronic gear/cam)

ACSPL+ powerful motion language
--- Real-time program(s) execution
--- Up to 64 simultaneously running programs / threads
NC programs (G-code)
C/C++, .NET and many others standard languages

Host Communication Channels
Serial: two RS-232. Up to 115,200 bps
Ethernet: One, 100/1000 Mbs

EtherCAT ports
Communication with an External EtherCAT Master:
EtherCAT in & EtherCAT Out, RJ45 conenctors
As an EtherCAT Master:
(optional) - Automatic network failure detection and recovery using ring topology and redundancy

Processor: Intel® Atom™ N2600 1.6 GHz
Memory: RAM- 1Gb , Flash memory- 512MB
Cycle rate: 1, 2, 4, 5 kHz (as a function of number of axes)

Power Supply
24Vdc ± 10%, 0.8A
Protection: reverse polarity

Operating Temperature: 0°C to +50°C
Storage Temperature: -25°C to +60°C
Humidity (operating range):5% to 90% non-condensing

158 x 45 x 125 mm3

700 gr.

Din rail mounting kit: Part Number DINM-13-ACC (included)
