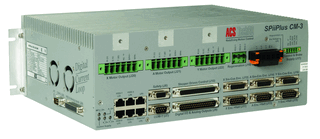

SPiiPlus CM


High Performance Multi-Axis Motion Controllers with Integrated Digital Drives


  • Two or three Internal Digital Drives with space vector modulation
  • Controls up to eight axes by external P/D Stepper drives, or HSSI-ED2 module
  • Meets the requirements of the most demanding applications without compromising accuracy or throughput
  • 20kHz deterministic sampling rate, independent of the number of axes
  • Two power levels: 5A (10A peak) and 10A (20A peak)
  • Drive supply: single phase 100Vac to 240Vac (90Vdc to 125Vdc) or low voltage (ordering option) 24Vdc-120Vdc or three phase 230Vac phase-to-phase
  • Supports a wide range of motion modes, including point-to-point, jog, segmented, master-slave, and arbitrary path with PVT cubic interpolation
  • Third-order profile generation with on-the-fly velocity, acceleration, jerk and target position changes
  • Sub-nanometer resolution using optional Sin-Cos encoders with a multiplier factor up to 65,536.
  • High sample rate with digital, incremental encoders for all axes
  • Simultaneous host communication through 10/100 baseT Ethernet or RS-232/422
  • Powerful I/O handling with advanced PLC capabilities
  • Position Event Generator (PEG) with sub-microsecond delay
  • Position registration (MARK) with sub-microsecond delay
  • Powerful ACSPL multi-tasking and programming language
  • Advanced PIV algorithm, notch and low pass filters, feature 20kHz execution rate for all control loops
  • Full suite of software tools for setup, tuning, application development and troubleshooting
  • Unique multi-axis motion simulator for rapid application development
  • Distributed axes and I/O expansion with HSSI-IO16 and HSSI-ED2 modules
  • C/C /VB Library support for Windows 98/NT/2000/ME/XP, Venturecom RTX and On-Time
  • Extensive COM libraries for Visual Basic™, LabView™ and more
  • Manufactured under ISO 9001: 2000 certified quality management system, meeting stringent safety and EMC standards and is CE marked
