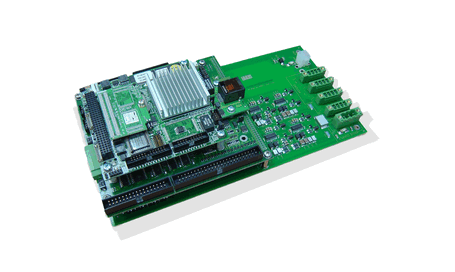

SPiiPlus LF - CM

Key Features:

  • Low cost and small footprint SPiiPlus 2 and 4 axis control module
  • PLCopen compliant. Can be programmed in any of the five IEC61131-3 standard PLC languages
  • Outstanding servo performance with sampling rate of 20kHz on all axes
  • Support one and three - phase motors; drive supply up to 60Vdc, peak phase current: 5 Amps.
  • Supported by ACS’ advanced SPiiPlus software tools

The SPiiPlus-LF-CM 2 or 4-axis control module combines the powerful SPiiPlus controller and 2,4 universal PWM drives. It was designed to address the needs of cost sensitive applications where space is at a premium. The SPiiPlus-LF-CM is more than just a control module; with its PLC programming and CANOpen master capabilities it can actually control your whole machine. The SPiiPlus-LF-CM is PLCopen compliant, in addition to ACSPL+ motion programming language, it can be programmed in any of the five IEC61131-3 standard PLC languages. Its capabilities can be extended by adding up to 64 CANopen nodes of additional axes and I/Os. As a member of the SPiiPlus family of products, it is supported by the SPiiPlus ADK powerful, yet free software support package, which includes a rich set of powerful tools with full simulation capabilities for easy setup, tuning, application program development, debugging and diagnostics. To simplify the process of prototyping the following accessories are offered: mating connectors’ kit, breakout terminal kit for easy prototype connectivity, and a din rail mounting kit.
