3D Optical Profiler

3D Optical Profiler

Nano level 3D profile quickly presents

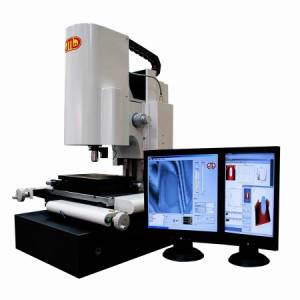

Carmar’s SWIM-1510MS designs with the latest scanning white-light interferometry technology. Outstanding performance with simple operation, customer design flexibility, high-precision scanning and graphic obtaining. 3D profile and surface texture analysis can can be done by Non contact, none constructive and general Atmospheric Environment. Moreover, Nano level surface roughness of ball and step height analysis tracing the ISO International standardization.

Powerful SWIM series Whitelight Interferometer can acquire the scanning data of FOV in a few seconds. 3D profile and height inspection results obtaining is better than point to point con-focal microscope. 3D graphic measuring ability is better than stereo 2D scanning microscope.

No matter the polishing, rough layer, or even the transparent material can be inspected by SWIM as long as the reflection rate of measuring object is over 1%. SWIM is suitable for the inspections of surface profiles and micro all kinds of materials, MEMS components. The applications are as below:
          Glass lens
          Coating surface
          Semiconductor Wafers
          Data Storage Surface (HDD, DVD, CD)
          MEMS Components
          LCD
          high-density interconnect PCB
          IC Package
          Micro Mechanical Parts
      and analysis and surface research of other materials and Precision Machined Surface.

Features:

Customer-Fitted Flexible Hardware Design

Compatible with brand-name optical microscope turrets, as Nikon, Zeiss, Olympus, Mitutoyo, and easily fitted onto the existed infinite-corrected microscopes
Reasonable price and easy operation

High-Speed Scanning and Pre-processing

Innovative patented analysis software with vertical resolution up to 0.1nm
High-speed scanning design and algorism
Easily selecting vertical scanning range
Automatic light intensity adjustment for optimal interfering fringe contrast

Professional Graphic Analysis Software

Powerful and user-friendly 3D graphic analysis software
Analysis results on surface roughness, step height, etc. traced to ISO definition
Including graphic, statistics, and FFT analysis tool boxes
Measurement results can be files with different graphic format or Excel files

Specifications:

Model	SWIM 1510MS
Configuration	Microscope, Scanning controller, Stage, Imaging unit, Computer
Microscope body	Mono microscope (standard)
Interference objectives (optional)	Magnification	FOV (mm)	Optical resolution (mm)
	10X	1	1.12
	20X	0.5	0.84
	50X	0.2	0.61
Vertical scanning controller	Scanning range	100 mm ( 400 mm, optional)
	Scanning resolution	0.1 nm
	Scanning mode	Automatic
	Light intensity adjustment	Automatic / Manual
Sample Stage	X-Y stage	150 mm x 100 mm, manual (standard) with linear scale (1 mm )
	X-Y position counter	Linear scale exchanger with USB interface
	Z stage	80 mm , manual (standard)
	Tilt stage	Manual
Imaging unit	Image sensor	Area CCD (standard)
	Sensor resolution	640 x 480 pixels (standard)
Computer	Pentium-computer, 17” LCD Monitor, 200 GB Hard disk driver
Analysis Software	MS-Windows compatible data acquisition and analysis software, including: ISO roughness/step-height analysis, FFT and filtering, various 2Dand 3D views, profile analysis, zooming, conversion to standard image formats, etc.
