CNC Bridge type Video Measuring System  PDF Download

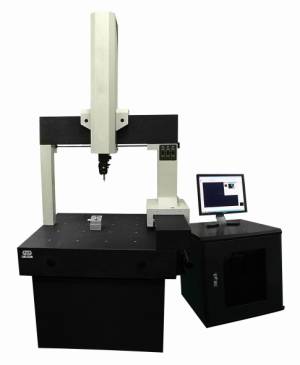

CNC Video measuring system, VMM-6060C designs with granite structure and guidance of air bearing that provides rapid movement and accurate position for high traverse. VMM-6060C is the ideal model for larger LCD and PCB inspection. Working with professional CNC software: QIM5008 satisfies various sizes measurements.

Features:
1. Support Auto focus function, joystick control and touch probing ready;
2. Duo closed loop moving control, the motor can position with excellent accuracy;
3. Servo motor control for XYZ axis to increase the positioning accuracy;
4. High resolution Sony 1/2" color CCD camera and U.S. made NAVITAR zoom lens;
5. With Air bearing design for X and Y-axis and table structure of granite ensures geometric accuracy and vibration resistance.
6. Surface cold-light source is used to enhance the performance of illumination.
7. Applying MS Windows XP with Carmar’s CNC measuring software, QIM5008 ensures the best performance for customer.

Specifications:

Model

VMM-6060C

Working table size

640 x 740

Travel (mm)

X

600

Y

600

Z

200

Resolution of X/Y/Z-axis

0.0005 mm (0.5μm)

Positioning Accuracy

0.001 mm (1μm)

Speed

400 mm/s

Indication Error of X/Y axis

 ≤ ( 3 + L/75 )μm       L (measuring length) :mm

Video System

  1. CCD Camera¡GColor 1/2“ SONY CCD
  2. Camera Lighting System : Adjustable COLD-LIGHT Surface and Transmission illumination
  3. Zoom Lens : NAVITAR Zoom Lens
    Magnification of field lens : 0.7X - 4.5X
    Total Magnifications : 34X - 220X
    Field of view : 10.6 - 1.6mm

Measuring software

QIM-5008

Weight (kg)

1280

Power Supply

AC220V/110V    50/60 Hz

Air Supply

Pressure: 0.4 Mpa ±2 ;
Consumption: 120L/min at 0.4Mpa

Environment

(20 ± 2 ) °C     55% ~ 65%

Standard and Option


Accessories

1X box (Standard)

0.5X box (Option)



Working Distance
(mm)

Zoom Lens

0.7X~4.5X

0.7X~4.5X

Appending Lens

Total
Magnification

Object View
(mm)

Total
Magnification

Object View
(mm)

0.5X (Option)

15X~95X

20~3.2

7.5X~48X

40~6.4

175

Standard

30X~190X

10~1.6

15X~95X

20~3.2

92

2X (Option)

60X~380X

5~0.8

30X~190X

10~1.6

36
