CNC Video Measuring System

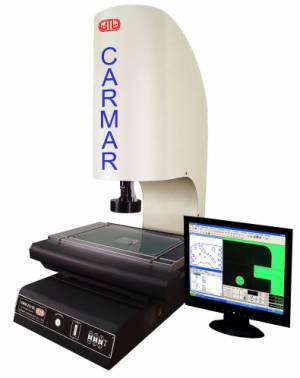

VMM-C series with AUTO FOCUS function

Features:
        All Systems are Probe-Ready , Auto focus function, joystick control;
        High accuracy with fixed working table and granite pedestal;
        Apply embedded Gugau controller for servo motor controlling increases the speed of motor responding;
        High resolution Sony 1/2" color CCD camera and NAVITAR Zoom lens;
        Supplied with USB interface linear exchanger to connect with professional measuring software:
        Surface cold-light source is used to enhance the performance of illumination
        Applying MS Windows XP with CNC measuring software, QIM5008 ensures the best performance.



Specifications:


Model

VMM-2515C

VMM-3020C

VMM-4030C

Stage Size (mm)

450 x 280

500 x 330

606 x 466

Glass Size (mm)

306 x 196

350 x 280

450 x 350

Travel (mm)

X

220

270

370

Y

120

170

270

Z

150 (for focusing)

Driving System

Servo Motor Control

Speed

400 mm/s

Resolution of X/Y/Z-axis

0.0005 mm (0.5μm)

Positioning Accuracy

0.001 mm (1 μm)

Indication Error of X/Y axis

3.0 + L/75 (μm)

Software

QIM-5008

Video System

  1. Camera : SONY Color 1/2" CCD
  2. Lightening System : Cold-light source Surface and Transmission illumination
  3. Zoom Lens : NAVITAR Coaxial Zoom Lens
    Magnification of field lens : 0.7X - 4.5X
    Total Magnifications     : 30X - 190X
    Object View            : 10.6mm - 1.6mm

Weight (kg)

170

270

Power Supply

AC220V/110V    50/60 Hz

Standard and Ordinary Option


Accessories

1X tube (Standard)

0.5X tube (Option)



Working Distance
(mm)

Zoom Lens

0.7X~4.5X

0.7X~4.5X

Appending Lens

Total
Magnification

Object View
(mm)

Total
Magnification

Object View
(mm)

0.5X (Option)

15X~95X

20~3.2

7.5X~48X

40~6.4

175

Standard

30X~190X

10~1.6

15X~95X

20~3.2

92

2X (Option)

60X~380X

5~0.8

30X~190X

10~1.6

36

Precision Option


Accessories

1X tube (Option)

2X tube (Option)



Working Distance
(mm)

Zoom Lens

Coaxial 0.7X~4.5X (Option)

Coaxial 0.7X~4.5X (Option)

Objectives Lens

Optical Mag.

Object View
(mm)

Optical Mag.

Object View
(mm)

5X    (Option)

1.74X~11.43X

4.05 ~ 0.70

3.48X~22.86X

2.30 ~ 0.35

34

10X (Option)

3.48X~22.86X

2.10 ~ 0.35

6.96X~45.72X

1.15 ~ 0.17

33

20X (Option)

6.96X~45.72X

0.91 ~ 0.17

17.40X ~ 114.30X

0.57 ~ 0.09

20

50X (Option)

17.40X ~ 114.30X

0.31 ~ 0.07

34.80X ~ 228.60X

0.23 ~ 0.04

13

150 W Halogen Lamp and Optical Fiber (Option)
