Bridge Type Non contact Video Measuring System

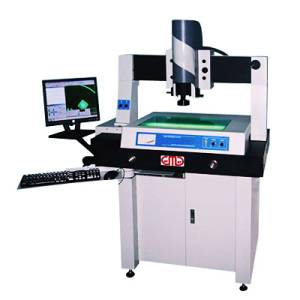

Bridge type Vision measuring systems design with granite structure and guidance of air bearing that provides rapid movement and accurate position for high traverse. VMM-AM is the ideal model for larger LCD and PCB inspection. Working with powerful CNC software satisfies various sizes measurements.

Features:
1. High accuracy with fixed working table and granite pedestal;
2. One-click edge detection.;
3. Applying MS Windows XP with CNC measuring software ensures the best price for customer;
4. High resolution Sony 1/2" color CCD camera and U.S. made NAVITAR zoom lens;
5. Air bearing design for X and Y-axis and table structure of granite ensures geometric accuracy and vibration resistance.
6. Surface light is composed of 24 individual illuminations driven by constant current.

Specifications:

Model		VMM-5030AM
Metal Table Size (mm)		700 x 450
Glass Table Size (mm)		550 x 350
Travel (mm)	X	500 (Air bearing)
	Y	300 (Air bearing)
	Z	120 (for focusing)
Resolution of all axis		0.0005 mm (0.5μm)
Positioning Accuracy		0.001 mm (1μm)
Indication Error of X/Y axis		≤ ( 3 + L/75 )μm L (measuring length) :mm
Video System		CCD Camera¡GColour 1/2“ CCD Japan Camera Lightening System¡G Adjustable LED Surface and Transmission illumination Zoom Lens ¡G NAVITAR Zoom Lens, Ø Magnification of field lens 0.7X - 4.5X Ø Total Magnifications 30X - 190X Ø Object View 10.6mm - 1.6mm
Measuring software		USB301 & M2D-AT
Weight (kg)		800
Power Supply		AC220V/110V 50/60 Hz
Air Supply		Pressure: 0.4 ~ 0.5 Mpa ; Consumption: 120L/min at 0.4Mpa
Environment requirements		(20 ± 2 ) °C 55% ~ 65%

Standard and Option

Accessories	1X box (Standard)		0.5X box (Option)		Working Distance (mm)
Zoom Lens	0.7X~4.5X		0.7X~4.5X
Appending Lens	Total Magnification	Object View (mm)	Total Magnification	Object View (mm)
0.5X (Option)	15X~95X	20~3.2	7.5X~48X	40~6.4	175
Standard	30X~190X	10~1.6	15X~95X	20~3.2	92
2X (Option)	60X~380X	5~0.8	30X~190X	10~1.6	36
