Manual Video Measuring System  PDF Download

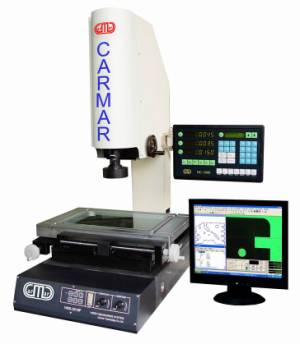

VMM-S/D series Non-contact Vision Measuring System are one of the best developed products in Carmar's scope of supply. Providing customers with precise, cost effective and high quality products are our business philosophy. Video Measuring System can satisfy all kinds of two dimensional measurements with M2D software.

Features:
1. High accuracy with fixed working table and granite pedestal;
2. Supplied with RS-232 interface and working with professional M2D measuring software:.
3. High resolution Sony 1/2" color CCD camera and U.S. made NAVITAR zoom lens;
4. The user can manage and output the graph by connecting with PC and running the M2D program.
5. One-click edge detection.

Specifications:


Model

VMM-1510S/D

VMM-2010S/D

VMM-2515S/D

VMM-3020S/D

VMM-4030S/D

Stage Size (mm)

354 x 228

404 x 228

450 x 280

500 x 330

606 x 466

Glass Size (mm)

210 x 160

260 x 160

306 x 196

350 x 280

450 x 350

X/Y Travel (mm)

150 x 100

200 x 100

250 x 150

300 x 200

400 x 300

Weight¡]kg¡^

100

110

120

140

240

Dimensions (mm)

756 x 540 x 860

670 x 660 x 950

720 x 950 x 1020

Z Travel (mm)

150 mm

Z working range (mm)

VMM-S series: 92 mm      VMM-D series: 105 mm

Indication Error of X/Y axis

 ( 3 + L/75 )μm
 L: measuring length (:mm)

DRO &
Resolution of encoder

Digital Display : DC3000
Resolution : 0.0005 mm

Measuring Software

M2D

Video System

VMM-S series

CCD Camera : Sony Colour 1/2" CCD Camera
Zoom Lens : NAVITAR Zoom Lens,
Magnification of field lens : 0.7X - 4.5X
Total Magnifications          : 30X - 190X
Object View                        : 10.6mm - 1.6mm

VMM-D series

CCD Camera : Colour 1/3" CCD Camera
Zoom Lens : Standard Zoom Lens
Magnification of field lens : 0.7X - 4.5X
Total Magnifications          : 40X - 255X
Object View                        : 7mm - 1.1mm

Lightening System

Adjustable LED Surface and Transmission illumination

Power Supply

AC220V/110V    50/60 Hz
