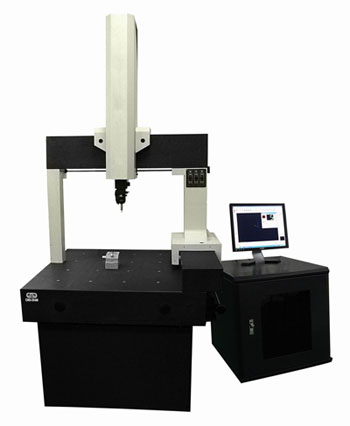

CMM-M series Coordinate Measuring Machine design with moving bridge structure, granite working table, high-resolution steel linear encoder and air bearing on all axes to optimize its stability and solidity of machine structure. Carmar''s CMMs integrates 3 D technology (high quality Renishaw probing system: MH20i for complex part measurement and CMM measuring software) to guarantee the highest performance. It can inspect the dimension, shape and position of the box, guide rail and other work pieces. CMMs are widely used in the field of mechanism, automobile, aviation and high precision tool manufacturing.



Model		CMM-554M	CMM-665M
		CMM-564M	CMM-685M
		CMM-574M	CMM-6105M
		CMM-584M
Stroke (mm)	X	500	600
	Y	500/600/700/800	600/800/1000
	Z	400	500
Operation		MANUAL
Probing System		RENISHAW   MH 20i
Measuring Software		CMM Manager
Structure		Moving Bridge
Guidance		Air Bearing
Space Accuracy (mm)		MPEE = ( 4.0 + L/200 )
Resolution (mm)		0.5
Dimensions (m)		1.0 x 1.1 x 2.2	1.14 x 1.1 x 2.4
		1.0 x 1.2 x 2.2	1.14 x 1.3 x 2.4
		1.0 x 1.3 x 2.2	1.14 x 1.5 x 2.4
		1.0 x 1.4 x 2.2
Weight (kg)		700/ 770/ 840/ 910	900/ 1040/ 1180
Max. Load (kg)		200	500
Packaging Dimensions (m)		1.45 x 1.37 x 2.1	1.35 x 1.55 x 2.4
		1.45 x 1.47 x 2.1	1.35 x 1.75 x 2.4
		1.45 x 1.57 x 2.1	1.35 x 1.95 x 2.4
		1.45 x 1.67 x 2.1
Environments
Power Supply		220 V ± 10%      50/60 Hz
Air Consumption		120 L/min (0.4 MPa)
Air Supply		>= 0.5 MPa
Temperature		18-22 degree
Humidity		40 % ~ 70 %
