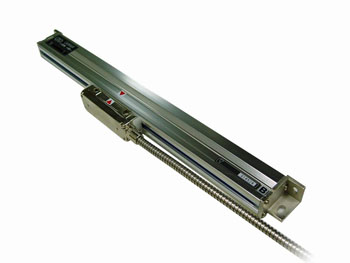

All series of digital readouts and linear encoders produced by CARMAR are designed withfive bearings on the slide for superior repeatability, high slide accuracy and long servicelife. The scale frame is manufactured from anode treated aluminum alloy and comes with ahard chrome scale head treated for corrosion resistance. The signal wires employ amultiple layer braided net and are guarded with stainless steel shades for waterproof andanti-interference performance. The pitch of line grating is 20 microns and is fitted withABS reference signals at the centre of the measuring length and 20 mm to each end, asstandard. The response speed is 60 m/min.

1.          High accuracy optical glass scale;

2.          Response speed: over 60 meters per second;

3.          No intermediate interface is needed over 100 meters long-distance data transmission;

4.          Using 5 sets of bearing, assures excellent repeatability positioning, good sliding and durability;

5.          Multiple-shielding and soft metal cable protection and excellent anti-jamming and water- proof for EMI;

6.          Anode process of Aluminum alloy for etching proof;

7.          Anti-dust sealing is made by special plastics, with lower friction;

8.          Easy installation and maintenance by special design, with good watering-proof and dust-proof;

9.          The sensors adopt the glass precise computation as the measuring benchmark;



1.          Resolution: 0.005mm; 0.001mm

2.          Measuring Length (ML):50mm-1000mm

3.          Output signal: 5V, TTL square wave

4.          Accuracy: ±(5+L/200) μm

5.          Max. Response Speed: 60 M/min.
