Features:

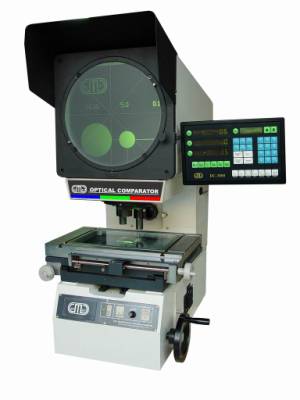

PV-3025CE series profile projectors own high quality optical measuring performance. There is a rotary lens turret which equips with three different lenses. When working in different magnifications, users can rotate the lens, instead of changing lens individually.
Specifications:
Model |
PV-3025CE |
||||
The metal table size (mm) |
450 x 280 |
||||
The glass table size (mm) |
306 x 196 |
||||
X-axis travel (mm) |
250 |
||||
Y-axis travel (mm) |
150 |
||||
Z-axis travel (mm) |
100 (for focusing) |
||||
Measuring accuracy (μm) |
3.0 + L/75 ; L: measuring length (mm) |
||||
Resolution (X/Y-axis) |
0.0005 mm |
||||
Projector Screen |
Size (mm) |
Ø312, usable range > Ø300 |
|||
Rotation range |
0 ~ 360º |
||||
Angle resolution |
1’ or 0.01º |
||||
Objective Lens |
Magnification |
10X(Std.) |
20X(Opt.) |
50X(Opt.) |
100X(Opt.) |
Object view (mm) |
Ø30 |
Ø15 |
Ø6 |
Ø3 |
|
Working Dist. (mm) |
77.7 |
44.3 |
38.4 |
25.3 |
|
Max. work piece height (mm) |
100 |
100 |
100 |
100 |
|
Data processing system |
DC-3000 multi-function data processing system : |
||||
Illumination |
Transmission and reflection light source : 24V/150W-halogen lamp |
||||
Power |
110V/220V(AC)¡A50/60Hz¡A400W total power |
||||
Light source cooling |
Forced air cooling |
||||
Instruments dimension (mm) |
780 x 780 x 1100 |
780 x 780 x 1100 |
810 x 780 x 1100 |
||
Weight (kg) |
160 |
160 |
180 |
||
Option |
Mini-printer, Edge detector and so on, please refer to accessories of optical comparator for more detail. |
||||
