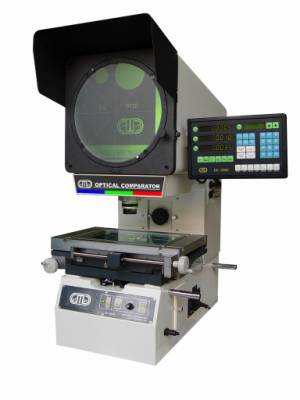

Enhanced Optical Comparator

PV-3000A series (Reverse image)
PV-3000AE series (Erect image)

Features:
The accuracy of PV-3000 series optical profile projector can reach the international level.

Max travel distance can reach 250 x 150 x 100
High precision table design can afford load of 50 kgs without affecting the measuring performance.
Design with elevation of projecting screen for focusing to ensure stability and high precision.

Specifications:

Model		PV-3015A(E)	PV-3020A(E)		PV-3025A(E)
The metal table size (mm)		354 x 228	404 x 228		450 x 280
The glass table size (mm)		210 x 160	260 x 160		306 x 196
X-axis travel (mm)		150	200		250
Y-axis travel (mm)		100	100		150
Z-axis travel (mm)		100 (for focusing)	100 (for focusing)		100 (for focusing)
Measuring accuracy (μm)		3.0 + L/75 ; L: measuring length (mm)
Resolution (X/Y-axis)		0.0005 mm
Projector Screen	Size (mm)	Ø312¡Ausable range > Ø300
	Rotation range	0 ~ 360º
	Angle resolution	1’ or 0.01º
Objective Lens	Magnification	10X(Std.)	20X(Opt.)	50X(Opt.)	100X(Opt.)
	Object view (mm)	Ø30	Ø15	Ø6	Ø3
	Working Dist. (mm)	77.7	44.3	38.4	25.3
	Max. work piece height (mm)	100	100	100	100
Data processing system		DC-3000 multi-function data processing system : 1. Gathering the data and measuring point, circle, angle and distance 2. Coordinate rotation 3. RS-232 data output
Illumination		Transmission and reflection light source : 24V/150W-halogen lamp
Power		110V/220V(AC), 50/60Hz, 400W total power
Light source cooling		Forced air cooling
Instruments dimension (mm)		780 x 780 x 1100	780 x 780 x 1100		810 x 780 x 1100
Weight (kg)		160	160		180
Option		Mini-printer, Edge detector and so on, please refer to accessories of optical comparator for more detail.
