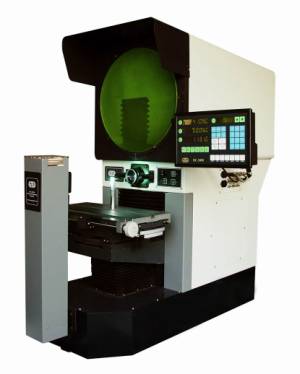

Digital Horizontal Optical Comparator
Features:
1. Helix angle stage adjustable: ± 15°
2. Heavy-duty, metal construction
3. Greater range and high accuracy
4. Powerful DRO provides fast geometric computations in a simple, easy to use format.
Specifications:
Model |
PH-3020 |
PH-4025 |
|||||
Working table size (mm) |
400 x 150 |
450 x 200 |
|||||
X-axis travel (mm) |
200 |
250 |
|||||
Z-axis travel (mm) |
100 |
150 |
|||||
Y-axis travel (mm) |
75 (for focusing) |
100 (for focusing) |
|||||
Turning range |
± 15° |
± 15° |
|||||
Measuring accuracy (μm) |
< 4.0 + L/25 ; L: measuring length (mm) |
||||||
Resolution (X/Z-axis) |
0.0005 mm |
||||||
Projector Screen |
Size (mm) |
Ø300 |
Ø400 |
||||
Rotation range |
0 ~ 360º |
0 ~ 360º |
|||||
Angle resolution |
1’ or 0.01º |
1’ or 0.01º |
|||||
Lens |
|
PH-3020 |
|||||
Magnification |
10X(Std.) |
20X(Opt.) |
50X(Opt.) |
100X(Opt.) |
|||
Object view (mm) |
Ø30 |
Ø15 |
Ø6 |
Ø3 |
|||
Working Dist. (mm) |
77.7 |
44.3 |
38.4 |
25.3 |
|||
|
PH-4025 |
||||||
Magnification |
5X(Opt.) |
10X(Std.) |
20X(Opt.) |
50X(Opt.) |
100X(Opt.) |
||
Object view (mm) |
Ø80 |
Ø40 |
Ø20 |
Ø8 |
Ø4 |
||
Working Dist. (mm) |
93.7 |
103.9 |
95.1 |
65.7 |
35.0 |
||
Data processing system |
DC-3000 multi-function data processing system : |
||||||
Illumination |
Transmission : 24V/150W-halogen lamp, Forced air cooling |
||||||
Power |
110V/220V(AC)¡A50/60Hz¡A400W total power |
||||||
Instruments dimension (mm) |
1090 x 830 x 1010 |
1215 x 646 x 1210 |
|||||
Weight (kg) |
160 |
240 |
|||||
Option |
Mini-printer, Edge detector and so on, please refer to accessories of optical comparator for more detail. |
||||||
