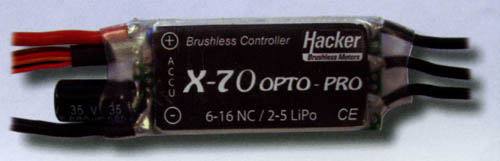

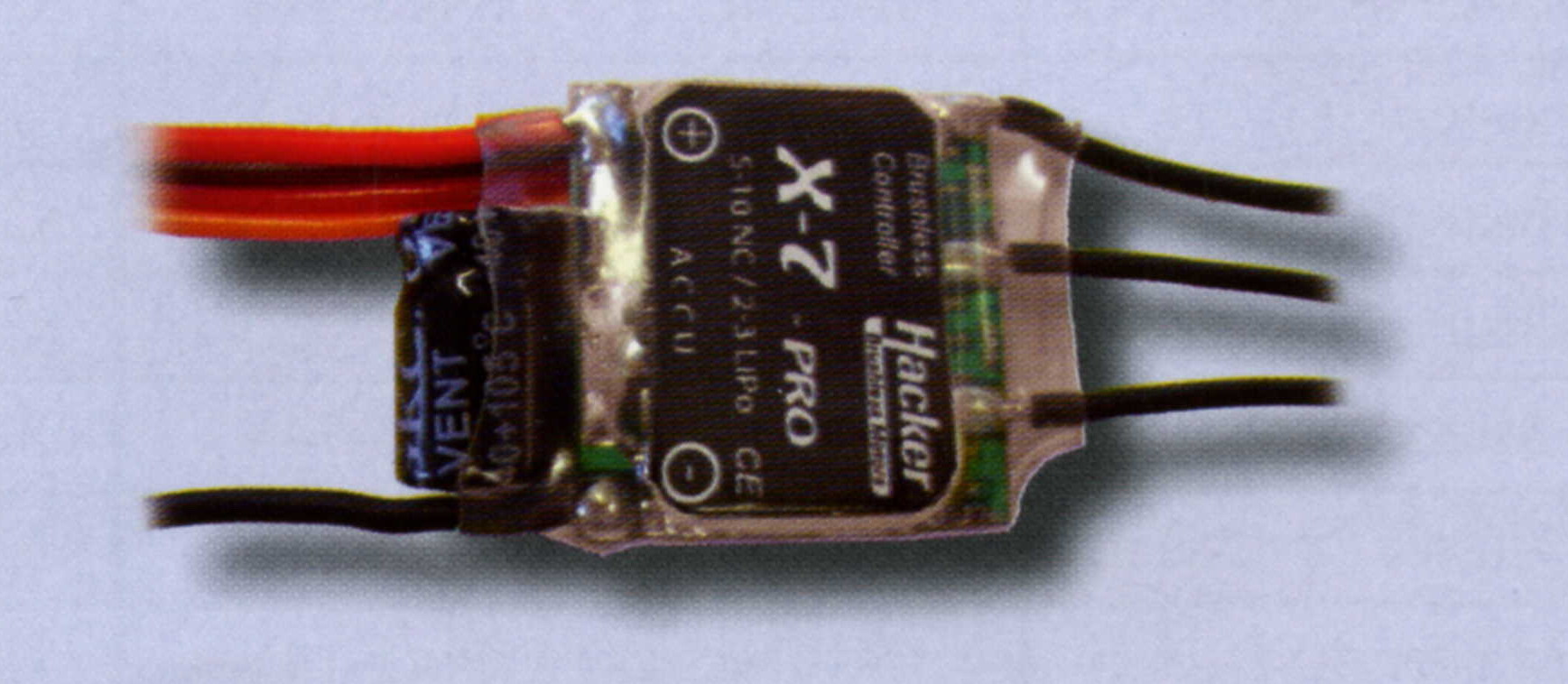

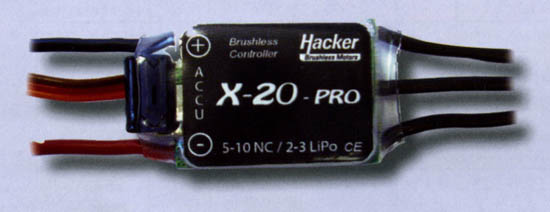

The X-Pro-Series Controller,are sensorless speed controllers especially for 'Hacker Brushless A-Series-Motors 'and other Brushless Motor Designs.Special programming options are provided to ensure the best possible power and performance from your mtor system.

All ESC 's are designed for the new LiPo cells.Using the optional new X-Pro-USB-Interface,precise adjustments are possible.

The number of cells can be adjusted and also the cell Cut-off voltage can be selected.For the first time, the user can define the exact ESC Cut-off voltage to protect the LiPo against harmful deep discharging.

All adjustments only need to be programmed once. The ESC automatically remenbers the adjustments and does not need to be programmed over and over again

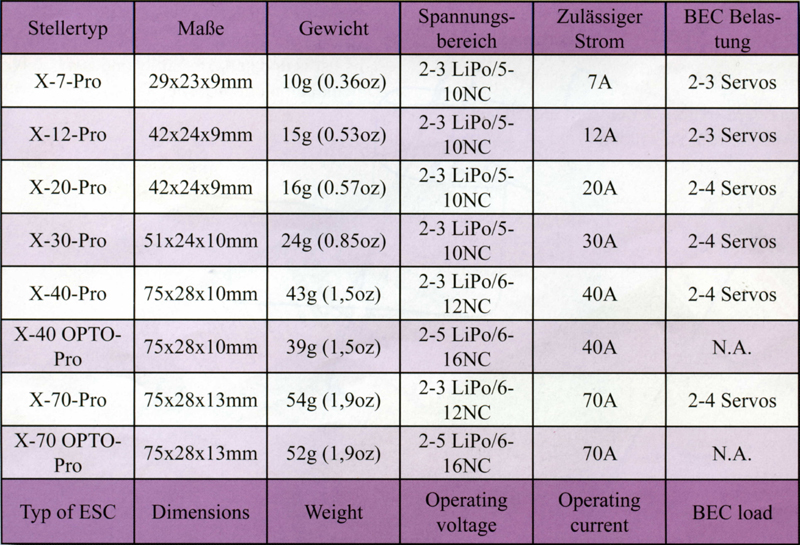

A large range of X-Pro ESC 's are available for many applications. Univerasl style ESC 's operate from 5 to 30 NiMh cells and /or 2 to 10 LiPo cells.

All ESC 's have the possibility of timing adjustment. Thus the timing(Advance) can also be adapted to any Brushless Motor.

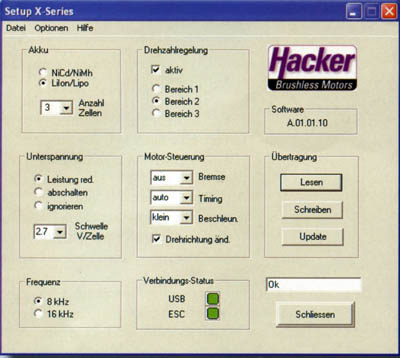

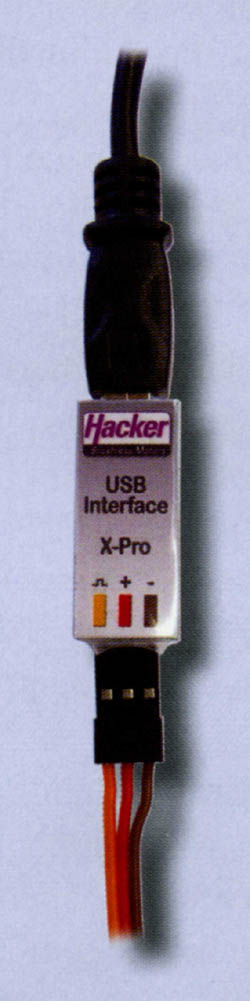

The programming can be made very easily with the new X-Pro-USB-Interface.

Settings can also be read from the ESC and stored at the Computer.Never the less,all X-Pro-ESC s are "STickprogrammable" as before.

A govenormode with active RPM-Controll is also inside.

From the 40A-BEC-Type on your will find here a switching BEC inside. This provides a strong BEC for up to 18 NiMh and/or 6 LiPo eclls for up to 6 Servos.
