| MECHANICAL SPECIFICATIONS |
| Materials |
Cover: Aluminium
Housing: Aluminium
Shaft: Brass |
| Bearings |
Ballraces |
| Bearings lifetime |
1×1010 rev. |
| Housing fixing |

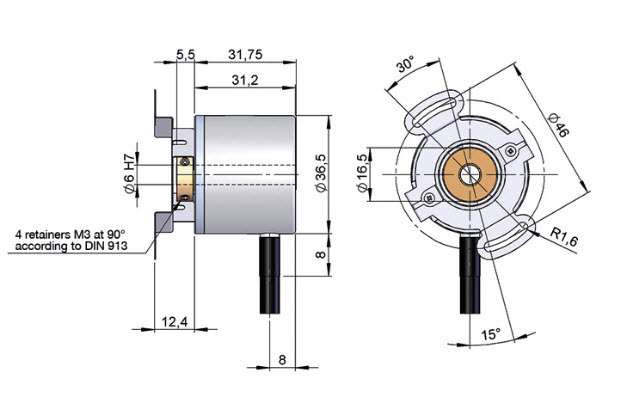

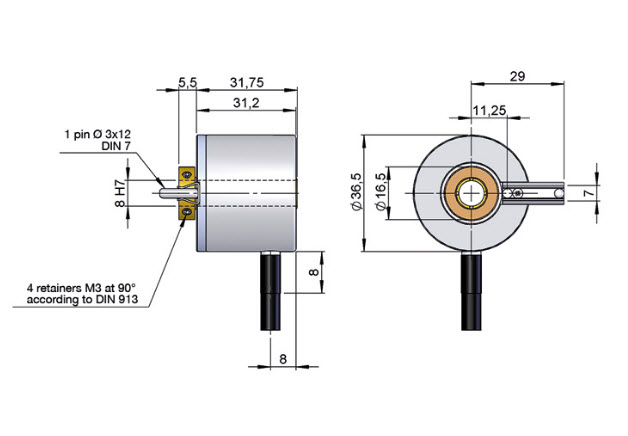

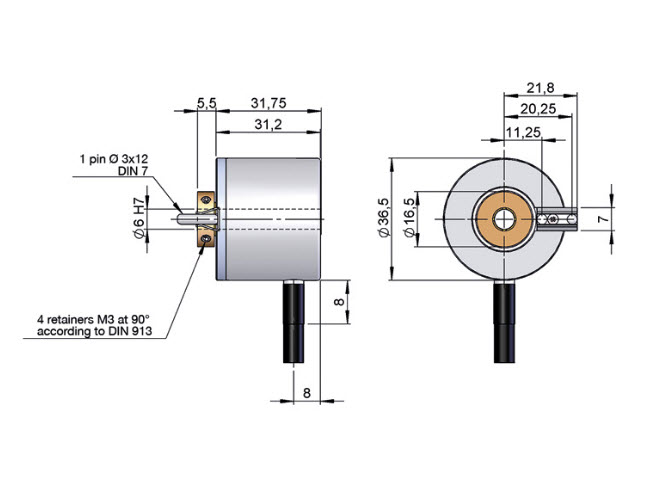

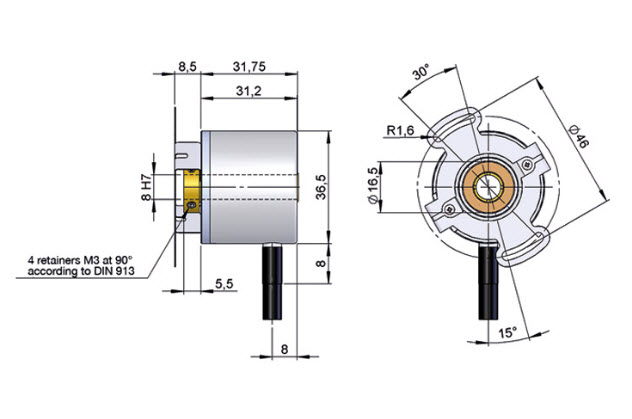

Anti-rotation pin or flexible flange (included) |
| Permitted misalignment |
±0.3 mm axial, ±0.1 mm radial (90.0108204, 90.0108208)
±0.3 mm axial, ±0.2 mm radial (90.1037)
±0.2 mm axial, ±0.1 mm radial (90.1111) |
| Shaft fixing |
Setscrew |
| Hollow shaft diameter |
6 or 8 mm. |
| Maximum number of revolutions permitted mechanically |
6000 rpm |
| Protection against dust and splashes according to DIN EN 60529 |
IP50 |
| Rotor inertia moment |
2 gcm2 |
| Starting torque at 20ºC (68ºF) |
≤ 0,01 Nm |
| Maximum load permitted on axial shaft |
20 N |
| Maximum load permitted on radial shaft |
40 N |
| Weight aprox. |
0,1 Kg |
| Operating temperature range |
-20ºC to +80ºC – Standard
-40ºC to +80ºC – Special Customer PT00 |
| Vibration according to DIN EN 60068-2-6 |
100 m/s2 (10Hz…2000Hz) |
| Shock according to DIN EN 60068-2-27 |
1000 m/s2 (6ms) |
| Maximum pulses per turn |
3.600 |
| Radial connection |
2 meters cable or industrial connector M12
(other cable lenghts available on order)
Female connector included |
