| MECHANICAL SPECIFICATIONS |
| Materials |
Cover: Aluminium
Housing: Aluminium
Shaft: Stainless Steel |
| Bearings |
Ballraces |
| Bearings lifetime |
1×1010 rev. |
| Housing fixation |

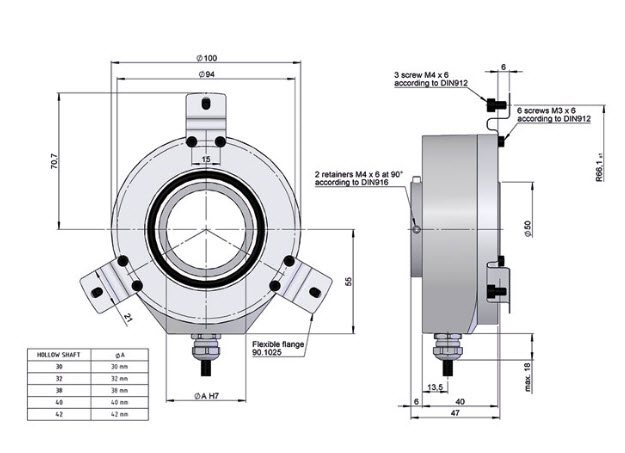

Elastic flange |
| Shaft fixation |

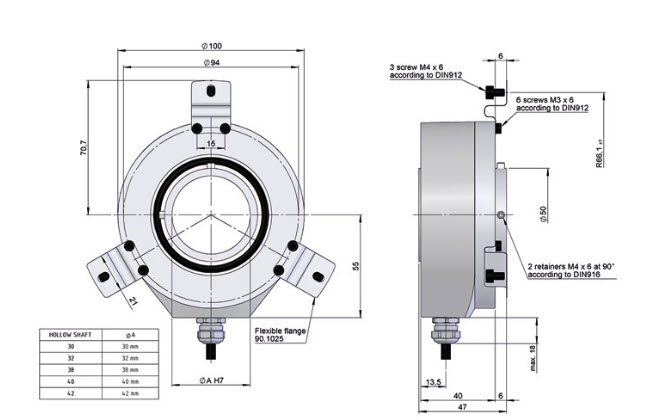

Front or Rear setscrews |
| Hollow shaft diameter |
30, 32, 38, 40 or 42 mm |
| Maximum number of revolutions permitted mechanically |
3600 rpm. |
| Protection against dust and splashes according to DIN EN 60529 |
IP65 |
| Rotor inertia moment |
≤ 1 – 1.8 Kg cm2 |
| Starting torque at 20ºC (68ºF) |
≤ 0,04 Nm |
| Maximum load permitted on axial shaft |
≤ 100 N |
| Maximum load permitted on radial shaft |
≤ 200 N |
| Permitted misalignment: |
±0.5 mm axial, ±0.3 mm radial (90.1025 – one)
±0.4 mm axial, ±0.2 mm radial (90.1025 – three) |
| Weight aprox. |
0,7 Kg. |
| Operating temperature range |
-20°C to +80°C – Standard
-40°C to +80°C – Special Customer MT |
| Vibration according to DIN EN 60068-2-6 |
100 m/s2 (10Hz…2000Hz) |
| Shock according to DIN EN 60068-2-27 |
1000 m/s2 (6ms) |
| Maximum pulses per turn |
5.000 |
| Radial connection |
2 meters cable or industrial connector M12, M23
(other cable lenghts available on order)
Female connector included |
