Hight - powered spot LED light


Features
●High-powered coaxial spot lights compatible with machine micro lenses (MMLs)
●Proprietary collector optics and light guides for maximum illuminance
●Available in four colors, red, green, blue and white, according to subject and application
●Small and lightweight for easy handling
●Stable illumination when used with a dedicated constant-current power source.

Major applications
●Coaxial episcopic lighting (for wafers and liquid-crystal glass-substrate alignment)
●Spot lighting
●Mounted on movable modules
Model explanation



Lineup of shadowless, ring-type LEDs(Click Picroduct Name for Drawing)
Model

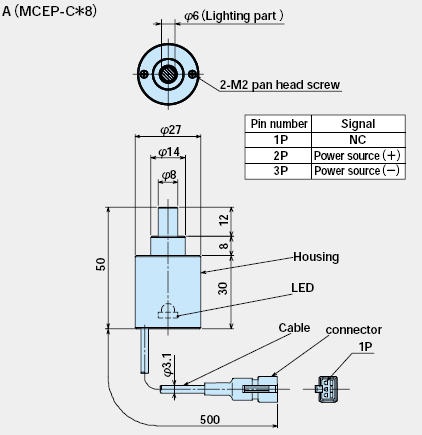

Exterior view
Luminescent color
Dominant wavelength
Color temperature
Average life (hrs)
Max. rated current IFM (A)
Weight(g)
MCEP-CR8
A
Red
620.5~645nm
30,000
-
0.35
50
MCEP-CG8
A
Greeen
525~535nm
30,000
-
0.35
MCEP-CB8
A
Blue
470~480nm
30,000
-
0.35
MCEP-CW8
A
White
All
30,000
5000~6000K
0.35

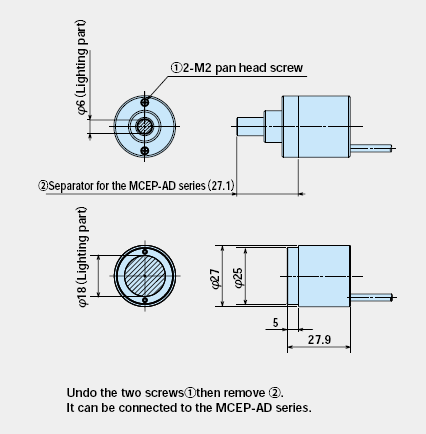

Detaching the head rod (Click Pruduct Name for Drawing)

New power source designed for the MCEP series

The constant current power source designed for the MCEP lights
As part of our initiatives to address environmental issues, this
model is designed in compliance with the Restriction of Hazardous
Substances in Electrical and Electronic Equipment (RoHS directive)
to be enforced in Europe in July 2006, and will comply with the
RoHS directives in the future. It features digital light adjustments for
1ch or 3ch, multiple voltage input (AC100 to 230V) and compliance
with the CE marking (scheduled for August 2005).
* The analog light adjustment type is available by remodeling.


Specifications
Model
Exterior view
Luminescent color

Output
Single-channel output with a maximum output of 350mA (at the forward voltage for connected LEDs of 3.6V)
There-channel output with a maximum output of 350mA each (at the foward voltage for connected LEDS of 3.6V)

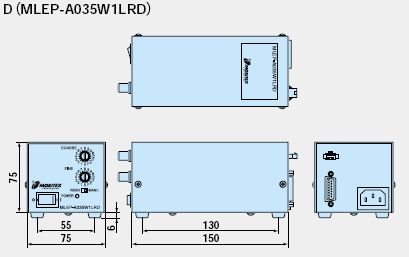

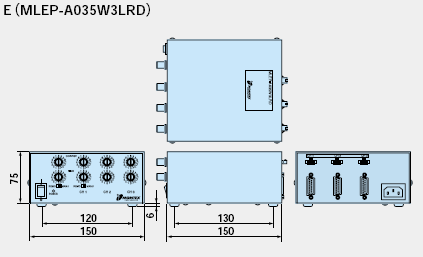

Exterior

D
E

Input voltage

AC100 - 230V 50/60 Hz
AC100 - 230V 50/60Hz

Input current

0.35/0.25 A (at AC 100/240V)
0.35/0.25 A (at AC240V)

Surge current

20A or lower (at AC100V)
40A or lower (at AC240V)
20A or lower (at AC100V)
40A or lower (at AC240V)

Operating tempurature

0~+45C
0~+45C

Output system

Continuous DC output
Continuous DC output

Output control system

Constant current control (the current can be changed)
Constant current control (the current can be changed)

External light control

Supported (8bit digital)
Supported (fir each channel, 8bit digital)

Lighting on/off function

Supported (photocoupler insulstion)
Supported (photocoupler insulstion)

Error output

Supported (photocoupler insulation, control error)
Supported (photocoupler insulation, control error)

Cooling system

Natural air cooling
Natural air cooling

Installation
Horizontal installation on the rubber supports at the bottom of the unit
Horizontal installation on the rubber supports at the bottom of the unit

Weight
Approximately 0.9kg
Approximately 1.4kg
Exterior View
Options for the power supply
Model
Exterior view
MC-AC200A-2.0M
AC200V power supply cable (European plug type, 2m)
MC-AC200B-2.0M
AC200V power supply cable (JIS plug type, 2m)
* The AC 100V compactible input cable comes as standard with the AC100V/230V input power source


Contection specifications for MLEP-A035W1LRD/MLEP-A035W3LRD
(Click Product Name for Drawing)
No.
Names
No.
Names
1

8bit digital input 1 (LSB)
9

COMMON (+)

2

8bit digital input 2

10

Output On/Off signals (input)

3

8bit digital input 4

11

NC
4

8bit digital input 8

12

NC
5

8bit digital input 16

13

NC
6

8bit digital input 32

14

NC
7

8bit digital input 64

15

NC
8

8bit digital input 128 (MSB)


Options for fiber connection
The MCEP series can be used as a small power source when connected with an optical fiber light guide.The options take advantage of Moritex's optical fiber technology to effectively direct the light to the light guide without losing intensity, thereby achieving higher illuminance.They are multi-adapter units compatible with all models of our standard light guides.

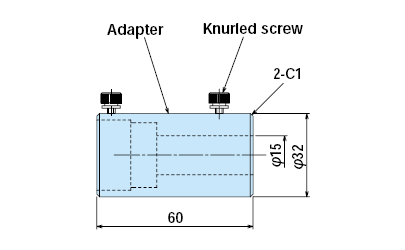

MCEP-ADLG (Single-lamp type)

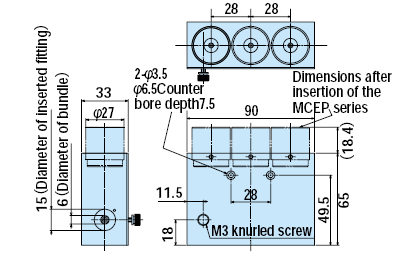

MCEP-AD3LGB (Three-lamp type)

Model
Exterior view
Weight (g)
Single-lamp type
50
Three-lamp type
270

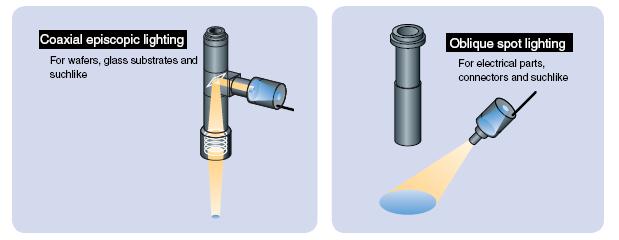

Typical applications of the MCEP series

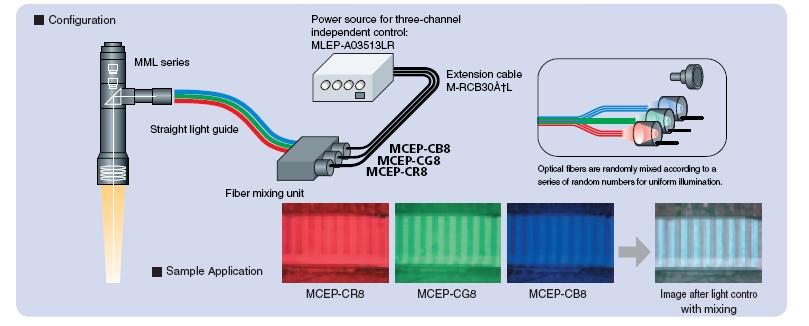

Example of applications


Example of applications

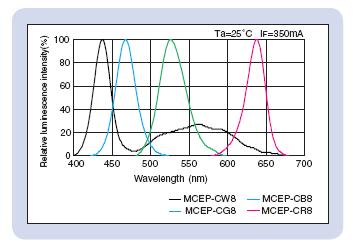

Spectroscopic characteristics

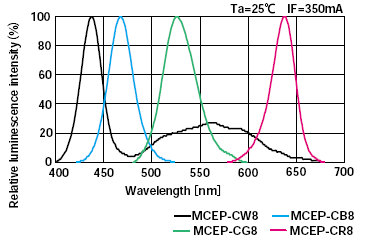

Spectroscopic characteristics

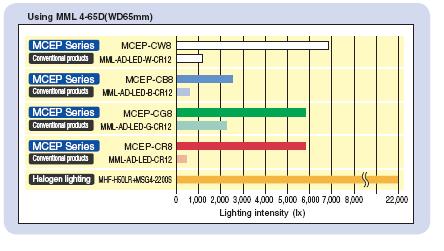

Intensity Comparison




Luminous intensity distribution characteristics
