Coaxial / simulated coaxial episcopic light


Features
Coaxial type : Compact coaxial light designed for the MML series, ideal for objects with highly reflective surfaces
Pseudo-coaxial type : Produces simulated even coaxial lighting for telecentric MML lenses and other lenses without coaxial episcopic illumination

Major applications
●Alignment and surface inspection of highly reflective surfaces such as wafers, metal surfaces, film, liquid crystals and glass
●Pattern inspection of printed boards
Model explanation

Coaxial

Simulated coaxial

Lineup of coaxial lights (Click Product Name for Drawing)
Model
Exterior view
Luminescent color
Max. rated current lFM(A)
External diameter of the ring(mm)
Weight(g)
MCEL-CR8

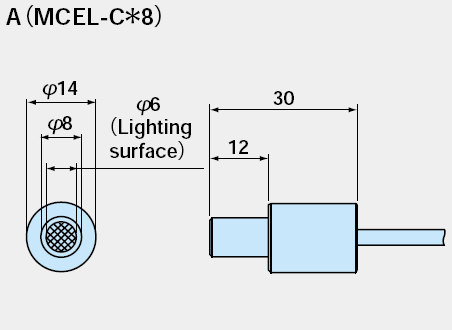

A
Red
0.04
8
35
MCEL-CG8
A
Green
0.03
8
MCEL-CB8
A
Blue
0.03
8
MCEL-CW8
A
White
0.03
8


Lineup of simulated coaxial lights( Click Product Name for Drawing)
Model
Exterior view
 Luminescent color Max.rated current lFM (A) Box height (mm) Optical path length extension (mm) Weight(g)

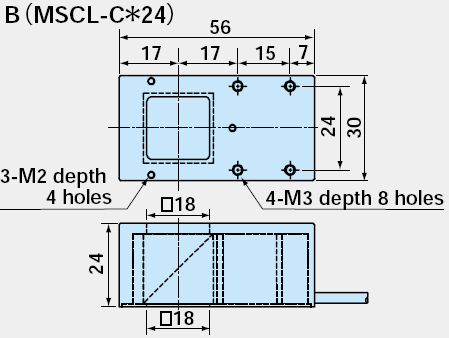

B
 Rad 0.09 24 6.8 110
B
 Green 0.20 24
B
 Blue 0.20 24
B
 White 0.20 24

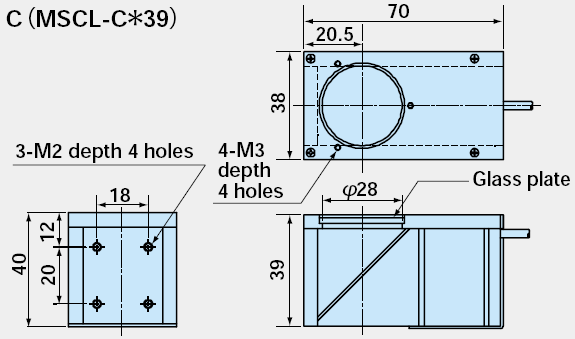

C
 Red 0.16 39 1.2 160
C
 Green 0.31 39
C
 Blue 0.31 39
C
 White 0.31 39

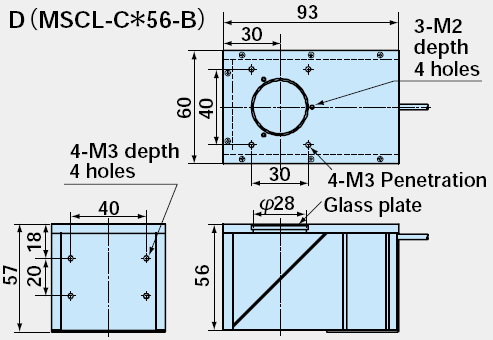

D
 Red 0.33 56 1.2 320
D
 Green 0.66 56
D
 Blue 0.66 56
D
 White 0.66 56

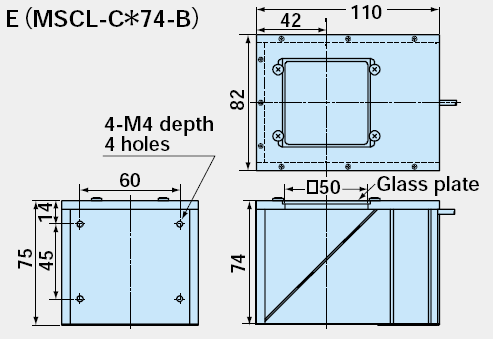

E
 Red 0.62 74 1.2 520
E
 Green 1.11 74
E
 Blue 1.11 74
E
 White 1.11 74

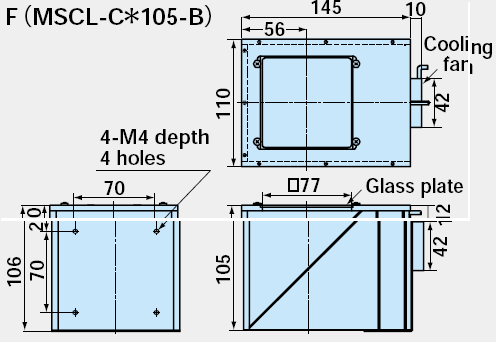

F
 Red 2.14 105 1.2 920
F
 Green 2.07 105
F
 Blue 2.07 105
F
 White 2.07 105

About installation


Without MSCL-CR24

With MSCL-CR24

Lighting configuration

MCEL

MSCL
* Lens attachment adapters are available



Imaging examples
MCEL (coaxial illumination)

Microcell
MSCL (simulated coaxial illumination)

Two-dimensional code



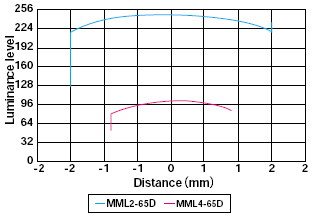

Luminous intensity distribution characteristics

MCEL-CR4

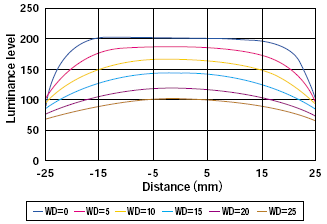

MSCL-CR56-b (X-axis)

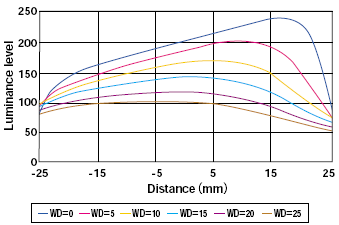

M SCL-CR56 (Y-axis)
