Major applications

MBRLseries - LED defect inspection - Recognition of multiple shapes - Fabrieation crack inspoection - Shape recognition and size measurement of electronic parts - Replacement of straight pipe fluorescent lamp

MLNLseries - Lighting for single-dimensional linear CCD cameras - lnspection for scratches on glass substrates - lnspection for bent connector pins or suchlike

MDQLserries - QFP,SOP inspection - Metal board surface inspection

Model explanation

Lineup of bar lights (Click Product Name for Drawing)

Model	Exterior view	Luminescent color	Max.rated current lFM (A)	Dimensions of the lighting area (mm)	Weight(g)

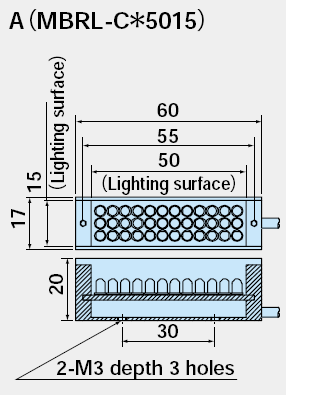

MBRL-CR5015	A	Red	0.13	50x50	50
*MBRL-CG5015	A	Green	0.26	50x15
MBRL-CB5015	A	Blue	0.26	50x15
MBRL-CW5015	A	White	0.26	50x15

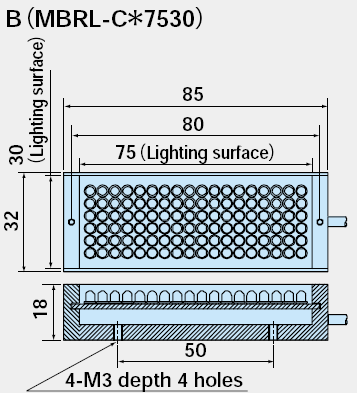

MBRL-CR7530	B	Red	0.36	75x30	120
MBRL-CG7530	B	Green	0.52	75x30
MBRL-CB7530	B	Blue	0.52	75x30
MBRL-CW7530	B	White	0.52	75x30

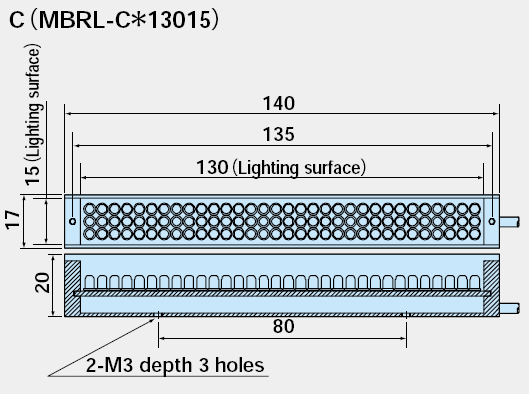

MBRL-CR13015	C	Red	0.32	130x15	85
*MBRL-CG3015	C	Green	0.53	130x15
MBRL-CB13015	C	Blue	0.53	130x15
MBRL-CW13015	C	White	0.53	130x15

Lineup of linear lights ( Click Product Name for Drawing)

Model	Exterior view	Luminescent color	Max.rated current lFM (A)	Line width (mm)	Weight(g)

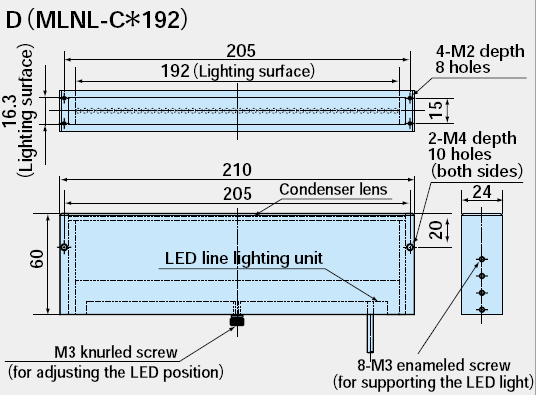

MLNL-CR192	D	Rad	0.18	192	420
*MLNL-CG192	D	Green	0.36	192
MLNL-CB192	D	Blue	0.36	192
MLNL-CW192	D	White	0.36	192
