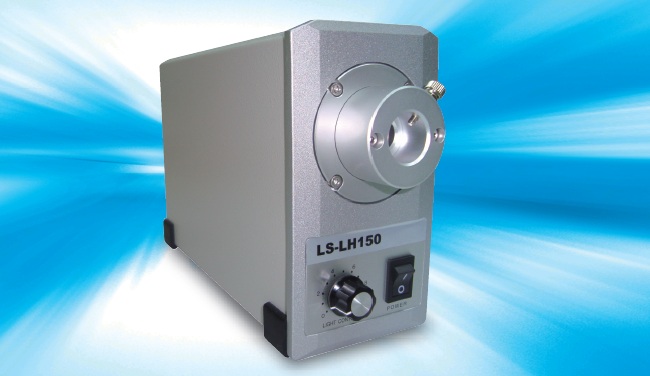

LED Light Source

The Light Source illuminates with about 200,000 lux with a stable continuous output with little energy consumption. A fiber optic light guide attachment can be used for applications requiring flexibility.


Power input: AC 100-240V +10%, 50/60 Hz input frequency

Power consumption: 26W

Intensity: approx. 200,000 Lux (measured 50mm from optical port)

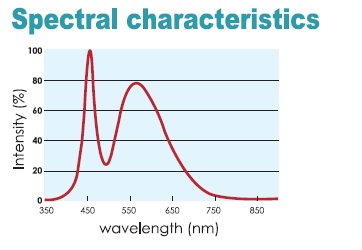

Light color: Cool white

LED life: approx. 30,000 hours

Dimmer control: Knob adjustment (manual), analog input voltage DC0-DC5V (remote)

Shutter control: Manual or remote

Cooling method: Forced air cooling

Working environment: 0-40°C, 20-80% relative humidity

Weight: 2 kg

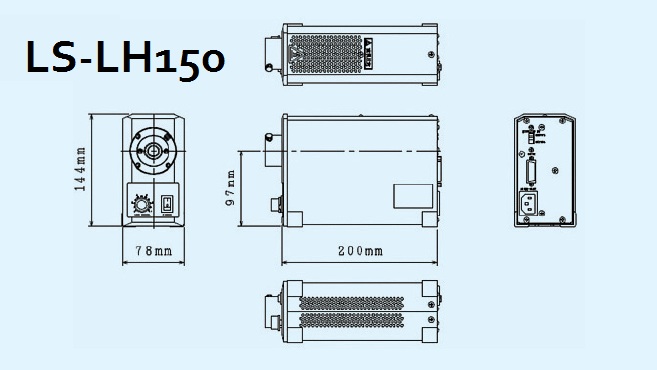

Dimensions: 78mm (width) x 144mm (height) x 200mm (depth)
