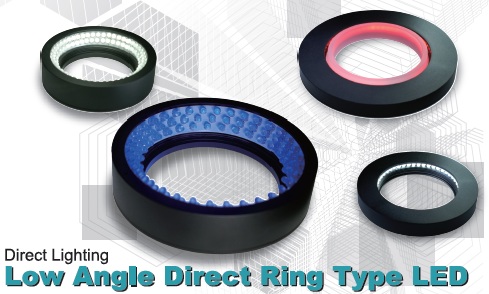

Low Angle Ring-type LED.

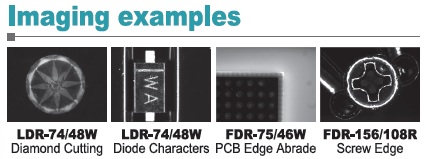

This light features 360 degrees of illumination without reflection with a steeper angle than the standard ring-type LED, lighting more from the side. This is especially useful for inspecting slightly uneven surfaces and scratches. Other uses include inspection of BGA solder balls, edge extraction, wafers or glass substrates for scratches and stains, and reading laser engravings. FDR models illuminate at an inward-facing, completely horizontal angle.


Available Models: 60 degrees

Model Color Power consumption Weight Diameter
(click for diagram)
LDR-48/22R Red 12V/1.9W 47g 22mm (inner)
48mm (outer)
LDR-48/22W/B/G White/Blue/Green 12V/2.8W
LDR-74/48R Red 12V/3.9W 81g 48mm (inner)
74mm (outer)
LDR-74/48W/B/G White/Blue/Green 12V/5.8W
LDR-100/68R Red 12V/7.2W 140g 68mm (inner)
100mm (outer)
LDR-100/68W/B/G White/Blue/Green 12V/5.8W

Available Models: 90 degrees (completely horizontal)

Model Color Power consumption Weight Inner diameter
(click for diagram)
FDR-75/46R Red 12V/2.0W 55g 46mm
FDR-75/46W/B/G White/Blue/Green 12V/2.9W
FDR-84/54R Red 12V/2.0W 65g 54mm
FDR-84/54W/B/G White/Blue/Green 12V/2.9W
FDR-96/60R Red 12V/2.4W 91g 60mm
FDR-96/60W/B/G White/Blue/Green 12V/3.6W
FDR-122/92R Red 12V/2.9W 95g 92mm
FDR-122/92W/B/G White/Blue/Green 12V/4.4W
FDR-156/108R Red 12V/3.9W 195g 108mm
FDR-156/108W/B/G White/Blue/Green 12V/5.8W
