Microscope Ring Light

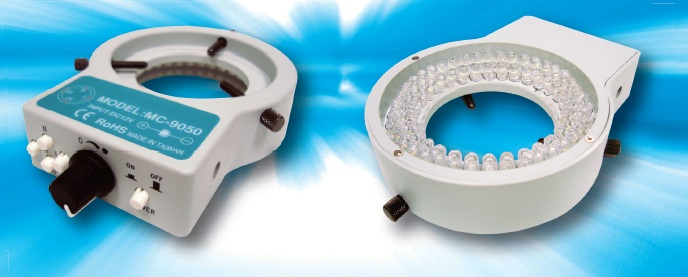

The MC90/50 microscope ring light is a compact source of LED lighting with a fully adjustable, high-resolution dimmer that provides uniformity and stability. It consists of 72 individual LEDs that do not heat or flicker, superior to fluorescent and halogen lamps. Four zone control buttons allow the user to individually control each quadrant of the LEDs. Addition of the MC-90/50-D diffusion board reduces reflective interference. This fits all microscopes and can be applied toward medical/scientific uses, semiconductor/TFT industry, and measurement equipment, among others. It is CE and Rohs compliant.



Power input: DC 12V/0.5A

Power supply: Included

Power consumption: 6W

Intensity: >70,000 Lux

Light color: 5500k (white)

LED life: 10,000-30,000 hours

Unit weight: 100g

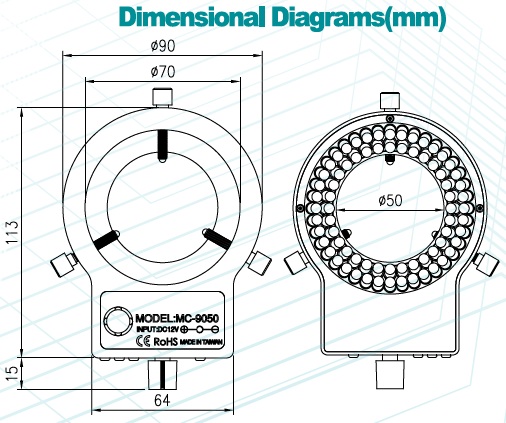

Inner ring diameter: 50mm

Outer diameter: 90mm

Working distance: 50-160mm
     (Brightness is highest at 50mm)
