: : : : : : : : : : Area Irradiation Type Direct UV Light Source : : : : : : : : : :

  • Direct irrradiation type for quick hardening by UV intensity two to three times greater than the fiber irradiation type
  • Keeptin great UV intensity and covering wide area irradiation from 10 to 30 dia.
  • Also supporting irradiation in a ring state
  • Slim light source for easy ling installation
Main Unit
Model ANUP-5256
Power Supply Ingle-phase AC 90 to 120 V, 50/60Hz common,5A
Lamp Preset ultrahigh-pressure mercury lanp:250W(Item No.LUM-250)
Shutter Opening and closing manually or by timer
External Output Signal Lamp lighting detection,lamp stability detection,and shutter open/close detection
External Control Lamp ON/OFF and shutter open/close(manual or timer)
Weight Ling source section:9kg Power supply section:5 kg
Commodity Code

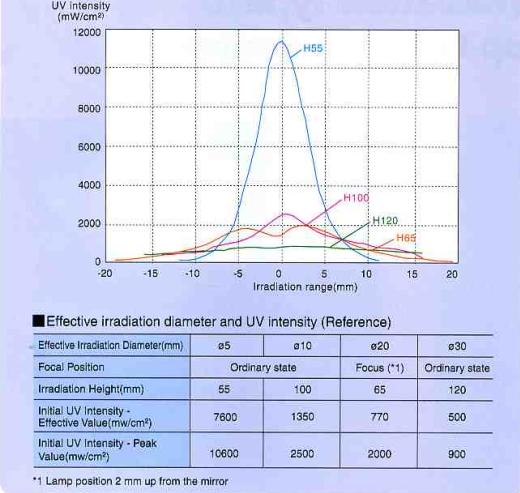

      UV intensity distribution
  • The data is based on measurement and not guanteed.
  • UIT-150 is used for measurement.
  • For improvement,the specifications and appearance are subject to change without notice.
  • Part of this product classified as strategic material (or sevice ) requires export (or service transaction) permission based on the Foreigm Exchange and Foreign Trade Law for its export. For details, consuit Moritex
      Direct irradiation unit-intensity distribution : Three types of condensing direct=irradiation units are made for MUV-202U
