FireRepeater-800 PRO™

Unibrain introduces a new 1394b (Firewire-800) repeater, oriented towards industrial and machine vision applications.
FireRepeater-800 PRO™ provides the ability to connect up to four (4) firewire 1394b devices and it's metallic compact case minimizes the risk of physical damage.
The repeater incorporates locking 9 pin bilingual ports, multiple mounting points and an optional metal bracket to ensure an even more secure physical connection. meters distance over fiber optic cable.

FireRepeater-800 PRO™ is based on two TSB81BA3D Texas Instruments 1394b PHY chips, providing fully reliable 1394b speed and configuration.

Basic Specifications

Four (4) fully backward Compatible, (1394a-2000 Fully Compliant) Bilingual 1394b Cable Ports operating at 100/200/400/800 Megabits per Second (Mbits/s) with screw lock cable support.
Compact size: 93 x 62 x 22 mm.
DC Power connector: Walkman-type 2.0 mm DC, Power Input Range: DC 8V~30V, max. 1.35A.
Power Consumption: 1.5W max.
Full Duplex Data Rate at 100/200/400/800 Mbps.
Operating Temperature: 0' - 60' C.

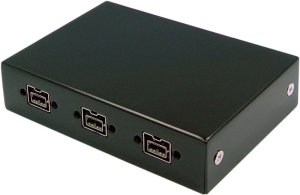

front side

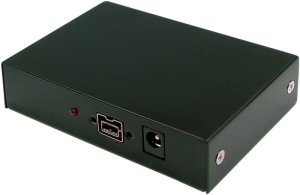

back side

Order Part numbers:

FireRepeater-800 Pro™ standalone: 2502
FireRepeater-800 Pro™ kit with 12V power supply: 2503
12V Power supply: 1611
