A range of illumination
system components help tailor an MML system to your
specific application. Please refer to the Moritex's Fiber Optic illumination
Systems Catalogue for complete details. If this is not available on-line,
please
send your request by e-mail or contact form, and a hard copy will be
sent to
you by return.
![](moritex micro lenses ring light_files/ringlightheader.gif)

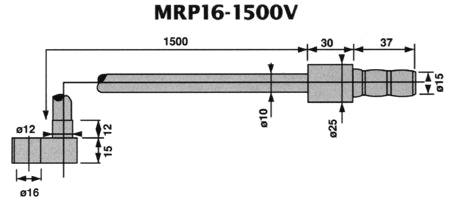

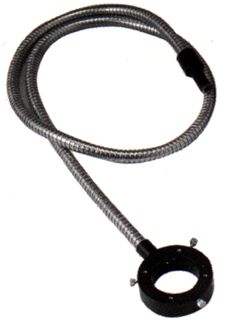

Fibreoptic light guides
for ring light illumination.
![](moritex micro lenses ring light_files/halogen2.jpg)
![](moritex micro lenses ring light_files/halogen3.jpg)
![](moritex micro lenses ring light_files/ringl1.jpg)

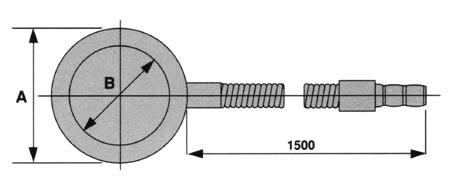

Light Guide |
Outer Diameter (A) |
Inner Diameter (B) |
MRG25-1500S |
o 60mm |
o25mm |
MRG31-1500S |
o 60mm |
o 31mm |
MRP35-1500S |
o 50mm |
o 35mm |
MRG40-1500S |
o 75mm |
o40mm |
MRG48-1500S |
o 75mm |
o 48mm |
MRG53-1500S |
o 80mm |
o 53mm |
MRG61-1500S |
o 90mm |
o 61mm |
MRG75-1500S |
o 100mm |
o 75mm |
|
