Combined Bearings
Lifting and handling in a economical way.

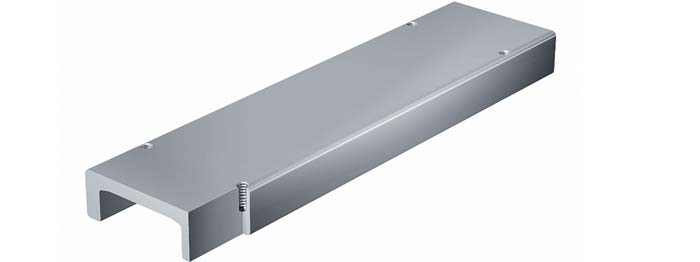

PR U-profiles drilled type PG - PR-profiles
Advantages:
Product Information
Max. length 12 m. Special lengths on request.
- Ready to mount profiles with standardized thread holes.
- All profiles fine straightened ± 0,3 mm/m.
- Min. clearance between bearing and profile.

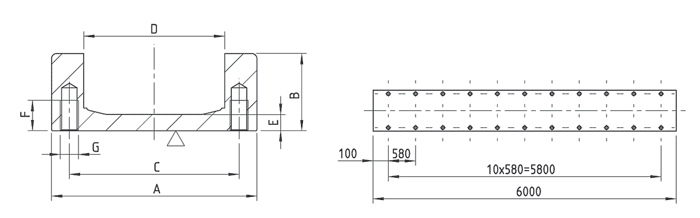

Profile |
A |
B |
C |
D |
E |
F |
G |
PG-PR 0 Nb |
86,5 |
35 |
75,8 |
65 |
6,0 |
15 |
M8 |
PG PR 1 Nb |
103,2 |
39 |
89,0 |
74 |
6,7 |
18 |
M10 |
PG PR 2 Nb |
121,3 |
39 |
101,7 |
82 |
8,8 |
20 |
M12 |
PG PR 3 Nb |
135,4 |
51 |
114,2 |
93 |
10,7 |
20 |
M12 |
PG PR 4 Nb |
157,2 |
59 |
134,6 |
112 |
11,8 |
20 |
M12 |
PG PR 5 Nb |
175,0 |
64 |
151,5 |
128 |
14,0 |
30 |
M16 |
PG PR 6 Nb |
201,5 |
69 |
177,8 |
154 |
17,2 |
30 |
M16 |
Order example
PG-2Nb [Profile] · 6000 [Available lengths = amount of pitches (580mm) + 200mm]
Dimentionsing
Q = Load capacity (N)
L = Load distance to suspension point (mm)
P = Suspension point
A = Bearing distance (mm) recommended 500-1000 mm
Formula
Fmax [N] = (Q * L) / (2 * A)
stat.radial
To avoid wear out in the profile, which is not hardened, the pressure between bearing and profile should be max.
Pzul = 860 N/mm² for Nb-profiles (St.0-St.6 + PR0-PR6)
Pzul = 750 N/mm² for all profiles except Nb-series.
Here indicated are F maxstat radial + axial for each bearing.
Selection of bearings over the hertzian pressure
Radial Bearing |
Combined Bearing Axial Bearing fix |
Combined Bearing Axial Bearing adjustable |
Combined Bearing Axial Bearing adjustable |
Combined Bearing with eccentric bearing |
Combined Bearing with combined bolt |
FR KN max. stat. radial |
FA KN max. stat. axial |
Profiles |
||
- |
4.052 P |
- |
- |
- |
- |
0,80 |
0,40 |
A |
- |
- |
- |
4.053 |
- |
- |
- |
- |
5,23 |
1,68 |
S |
- |
- |
(PR) 2.054 |
(PR) 4.054 |
(PR) 4.454 |
(PR) 4.072 |
JC 4.054 |
KB (PR) 4.072 |
9,40 |
3,10 |
0 NB |
PR 0 NB |
- |
(PR) 2.055 |
(PR) 4.055 |
(PR) 4.455 |
(PR) 4.073 |
JC 4.055 |
KB (PR) 4.073 |
11,30 (8,59) |
3,73 (2,86) |
1 NB |
PR 1 NB |
(3018) |
(PR) 2.056 |
(PR) 4.056 |
(PR) 4.456 |
(PR) 4.074 |
JC 4.056 |
KB (PR) 4.074 |
11,72 |
3,87 |
2 NB |
PR 2 NB |
- |
- |
4.057 |
4.057 |
4.075 |
- |
- |
(8,92) |
(2,97) |
- |
- |
(3019) |
(PR) 2.058 |
(PR) 4.058 |
(PR) 4.458 |
(PR) 4.076 |
JC 4.058 |
KB (PR) 4.076 |
20,47 (15.57) |
6,76 (5,19) |
3 NB |
PR 3 NB |
(3020) |
- |
4.059 |
4.059 |
4.077 |
- |
- |
(15,47) |
(5,15) |
- |
- |
(2912) |
- |
4.060 |
4.060 |
4.078 |
- |
- |
(16,49) |
(5,49) |
- |
- |
(3100) |
(PR) 2.061 |
(PR) 4.061 |
(PR) 4.461 |
(PR) 4.0784 |
JC 4.061 |
KB (PR) 4.0784 |
21,68 |
7,16 |
4 NB |
PR 4 NB |
- |
(PR) 2.062 |
(PR) 4.062 |
(PR) 4.462 |
(PR) 4.079 |
JC 4.062 |
KB (PR) 4.079 |
30,92 (23,52) |
10,20 (7,84) |
5 NB |
PR 5 NB |
(3353) |
(PR) 2.063 |
(PR) 4.063 |
(PR) 4.463 |
- |
JC 4.063 |
- |
54,02 |
17,80 |
6 NB |
PR 6 NB |
- |
- |
- |
- |
(PR) 4.080 |
- |
KB (PR) 4.080 |
37,81 |
17,80 |
6 NB |
PR 6 NB |
- |
- |
- |
4.089 |
- |
- |
- |
41,71 |
13,91 |
10 |
- |
- |
- |
- |
4.090 |
- |
- |
- |
58,00 |
19,40 |
16 |
- |
- |
- |
- |
4.091 |
- |
- |
- |
84,00 |
28,00 |
18 |
- |
- |
- |
- |
4.092 |
- |
- |
- |
101,50 |
33,90 |
28 |
- |
- |
- |
- |
4.093 |
- |
- |
- |
139,40 |
46,50 |
36 |
42 |
- |
