Multi axis units
High load capacity, speed and precision.

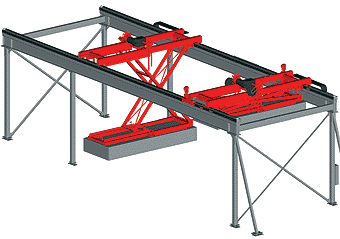

Building material industry




Handling of building material

  • Load capacity: 500 kg
  • Speed:
    1.5 m/sec horizontal
    0.2 m/sec vertical
  • Stroke horizontal: 2.0 m
  • the units can be contaminated with dust and dirt













Handling of building material

  • Load capacity: 500 kg
  • Speed:
    1.5 m/sec horizontal
    0.2 m/sec vertical     Stroke horizontal: 2.0 m
  • the units can be contaminated with dust and dirt




Carbon elektrode handling - SLE 2 Z-Axis as lift carriage

  • Load capacity: 500 kg
  • Stroke:
    x = 24.0 m
    y = 5.0 m
    z = 2.5 m
  • these units work under dust, dirt and high temperature








Carbon elektrode handling - SLE 2 Z-Axis as lift carriage

  • Load capacity: 500 kg
  • Stroke:
    x = 24.0 m
    y = 5.0 m
    z = 2.5 m
  • these units work under dust, dirt and high temperature

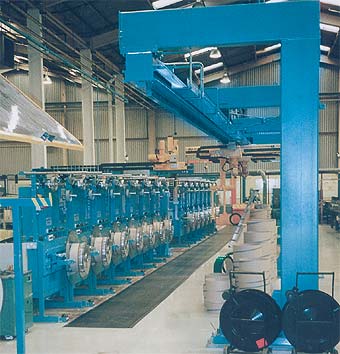

Handling of coil windings

  • Load capacity: 1 axis 3,000 kg, 2 axis 100 kg each
  • Stroke:
    x = 19.0 m
    y = 2.0 m
    z = 1.5 m


Building material industry - SLE 3

  • Load capacty: 2,000 kg
  • Stroke:
    x = 25.0 m
    z = 2.5 m
  • Speed:
    x = 2.0 m/sec
    z = 1.0 m/sec



Handling of coils

  • Load capacity: 300 kg
  • Stroke:
    x = 26.0 m
    y = 2.0 m
    z = 1.5 m






Handling of construction material

  • Load capacity: 800 kg
  • Speed: max. 2.0 m/sec
  • Stroke:
    y = 3.5 m
    z = 0.3 m


Building material industry - SLE 3

  • Load capacty: 2,000 kg
  • Stroke:
    x = 25.0 m
    z = 2.5 m
  • Speed:
    x = 2.0 m/sec
    z = 1.0 m/sec
