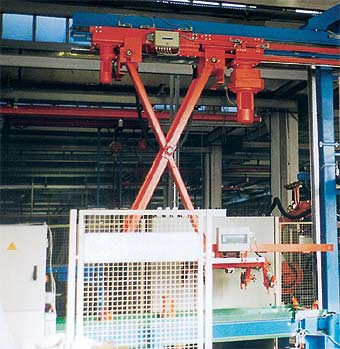

Horizontal axis with scissor lift for the car industry

• Load capacity: 1,000 kg
• Stroke:
  14.0 m horizontal
  2.5 m vertikal
• Speed:
  1.5 m/sec horizontal
  1.0 m/sec vertical



Car industry

• Load capacity: 200 kg
• Stroke:
  x = 6.0 m
  y = 2.5 m
  z = 1.7 m (telescopic)
• Speed:
  x = 1.5 m/sec
  y = 1.5 m/sec
  z = 0.6 m/sec



Car industry

• Load capacity: 200 kg
• Stroke:
  x = 6.0 m
  y = 2.5 m
  z = 1.7 m (telescopic)
• Speed:
  x = 1.5 m/sec
  y = 1.5 m/sec

Car industry

• Load capacity: 150 kg
• Stroke:
  x = 6.0 m
  y = 4.0 m
  z = 1.8 m
• Speed:
  x = 2.0 m/sec
  y = 2.0 m/sec
  z = 1.0 m/sec

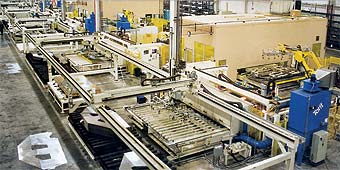

Handling of car body parts, 3-shift use

• Load capacity: 500 kg
• Stroke:
  x = 3 x 30 m
  y = 4.5 m
  z = 1.5 m
• Speed:
  x = 1.5 m/sec
  y = 1.5 m/sec
  z = 1.0 m/sec
