Multi axis units
High load capacity, speed and precision.

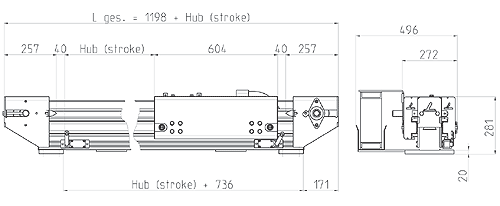

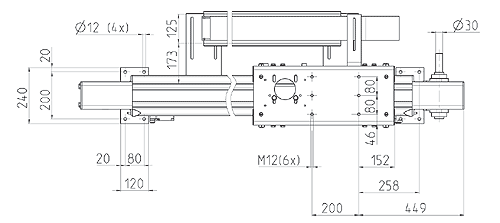

Dimensions horizontal axis Type
SLE - 0 ZR-H


timing belt drive for load capacity up to 300 kg
stroke max. 8 m



INTRODUCTION - <br> <br> Multi-axis-units

Order example
Type [SLE] · Size [0] · Driving-system [ZS] · Horizontal [H] · Stroke [mm] · Overall-length [mm] · Accessories [ ]
