Combined Bearings
Lifting and handling in a economical way.

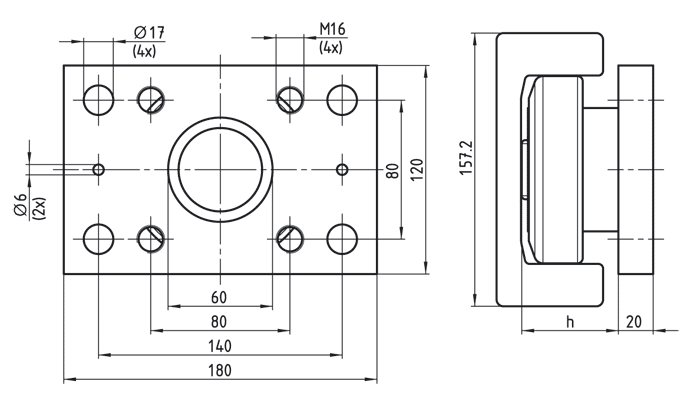

Flange plates rectangular
for
Combined Bearings and Radial Bearings

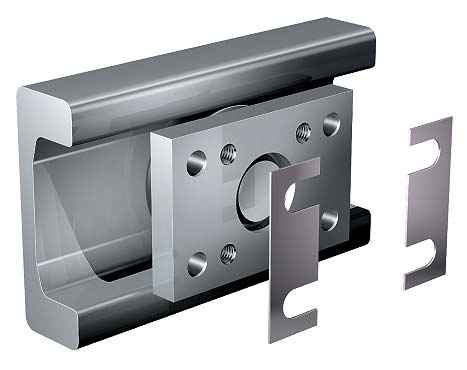

WINKEL flange plates in combination with Combined Bearings are suitable for screw joints between constructions and guide profiles.
- all flange plates incl. welded in Combined Bearings axial adjusting with washers type DS
- all flange plates in corrosion protected version
Special designs on request.
 |
|||||
Type |
Bearing |
Profile |
h |
Weight |
Washer |

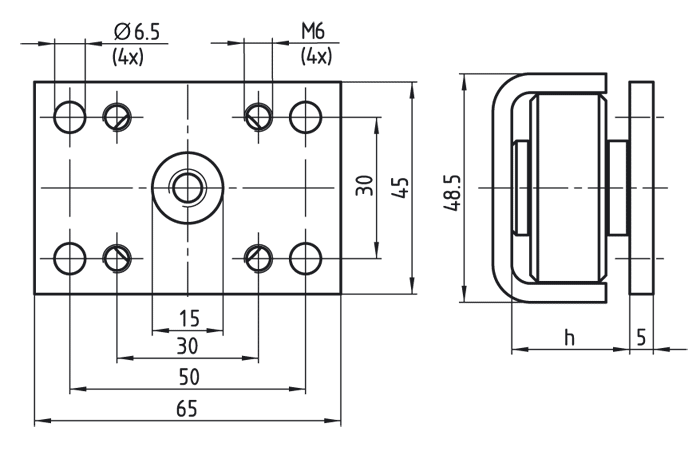

AP A |
4.052 P |
Standard A |
25,0 |
0,10 kg |
DS-A-0,5 DS-A-1,0 |
 |
|||||
Type |
Bearing |
Profile |
h |
Weight |
Washer |

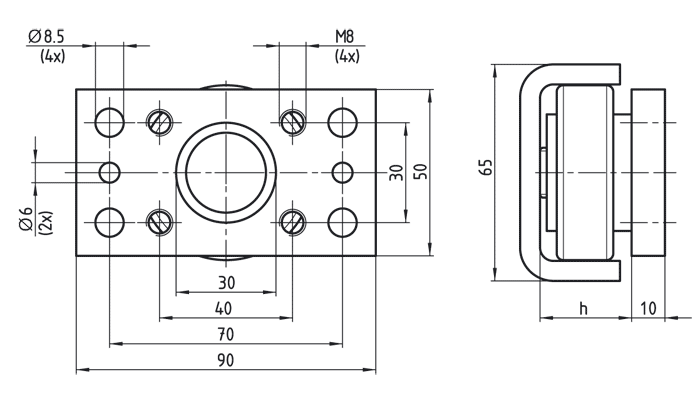

AP S |
4.053 |
Standard S |
27,0 |
0,25 kg |
DS-S-0,5 DS-S-1,0 |
 |
|||||
Type |
Bearing |
Profile |
h |
Weight |
Washer |

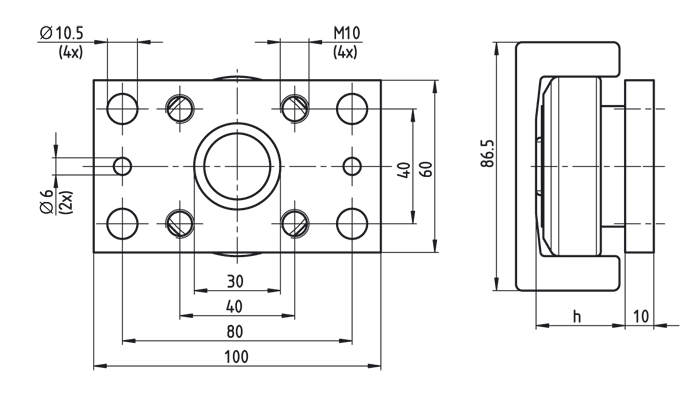

AP 0 |
2.054 |
Standard 0 |
30,5 |
0,35 kg |
DS-0-0,5 DS-0-1,0 |
4.054 |
Standard 0 |
30,5 |
|||
4.454 |
Standard 0 |
30,5-32,0 |
|||
4.072(P) |
Standard 0 |
33,0 |
|||
PR 2.054 |
PR 0 |
29,5 |
|||
PR 4.054 |
PR 0 |
30,5 |
|||
PR 4.454 |
PR 0 |
30,5-32,0 |
|||
 |
|||||
Type |
Bearing |
Profile |
h |
Weight |
Washer |

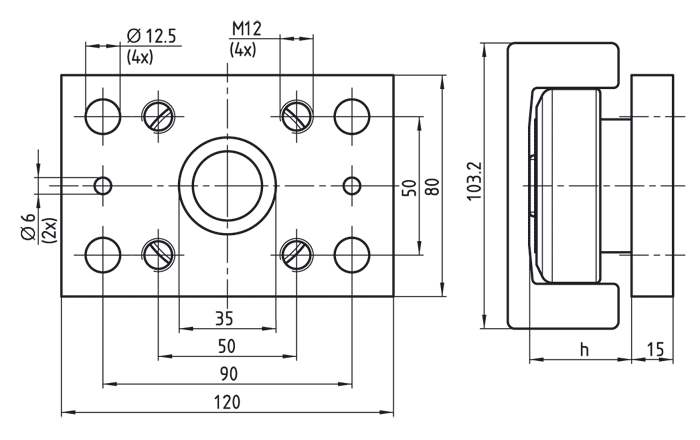

AP 1 |
2.055 |
Standard 1 |
36,0 |
0,90 kg |
DS-1-0,5 DS-1-1,0 |
4.055 |
Standard 1 |
36,0 |
|||
4.455 |
Standard 1 |
36,0-37,5 |
|||
4.073(P) |
Standard 1 |
40,0 |
|||
PR 2.055 |
PR 1 |
36,0 |
|||
PR 4.055 |
PR 1 |
36,0 |
|||
PR 4.455 |
PR 1 |
36,0-37,5 |
|||
 |
|||||
Type |
Bearing |
Profile |
h |
Weight |
Washer |

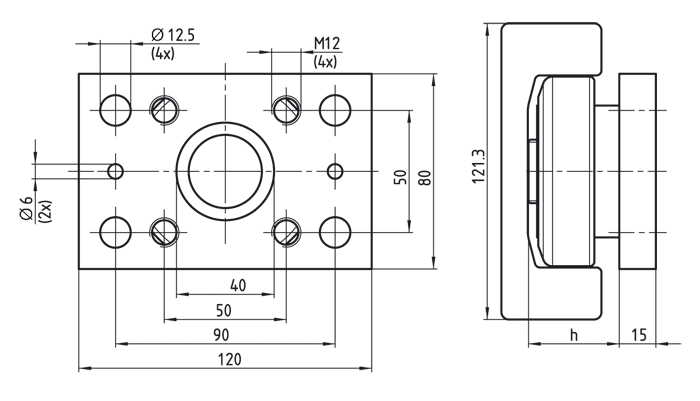

AP 2 |
2.056 |
Standard 2 |
36,5 |
0,85 kg |
DS-2-0,5 DS-2-1,0 |
4.056 |
Standard 2 |
36,5 |
|||
4.456 |
Standard 2 |
37,0-38,5 |
|||
4.074(P) |
Standard 2 |
39,5 |
|||
PR 2.056 |
PR 2 |
36,5 |
|||
PR 4.056 |
PR 2 |
36,5 |
|||
PR 4.456 |
PR 2 |
37,0-38,5 |
|||
 |
|||||
Type |
Bearing |
Profile |
h |
Weight |
Washer |

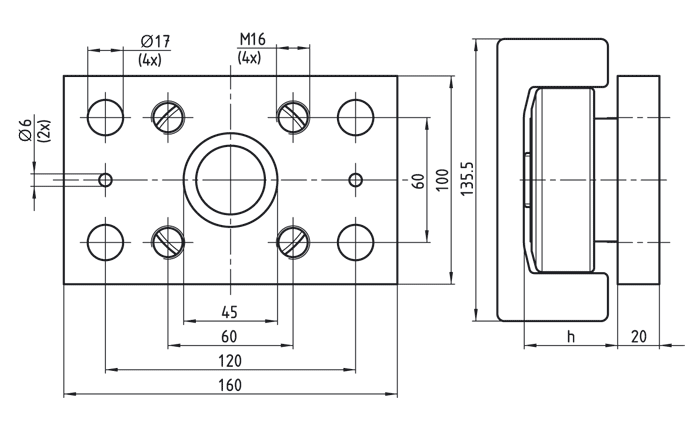

AP 3.1 |
2.058 |
Standard 3 |
44,0 |
2,35 kg |
DS-3.1-0,5 DS-3.1-1,0 |
4.058 |
Standard 3 |
44,0 |
|||
4.458 |
Standard 3 |
44,0-45,5 |
|||
4.076(P) |
Standard 3 |
48,0 |
|||
PR 2.058 |
PR 3 |
44,0 |
|||
PR 4.058 |
PR 3 |
44,0 |
|||
PR 4.458 |
PR 3 |
44,0-45,5 |
|||
 |
|||||
Type |
Bearing |
Profile |
h |
Weight |
Washer |
AP 4 |
2.061 |
Standard 4 |
55,0 |
2,65 kg |
DS-4-0,5 DS-4-1,0 |
4.061 |
Standard 4 |
55,0 |
|||
4.461 |
Standard 4 |
55,0-57,0 |
|||
4.0784(P) |
Standard 4 |
55,0 |
|||
PR 2.061 |
PR 4 |
55,0 |
|||
PR 4.061 |
PR 4 |
55,0 |
|||
PR 4.461 |
PR 4 |
55,0-57,0 |
|||
2.062 |
Standard 5 |
56,0 |
|||
4.062 |
Standard 5 |
56,0 |
|||
4.462 |
Standard 5 |
56,0-60,0 |
|||
4.079(P) |
Standard 5 |
59,5 |
|||
PR 2.062 |
PR 5 |
56,0 |
|||
PR 4.062 |
PR 5 |
56,0 |
|||
PR 4.462 |
PR 5 |
56,0-60,0 |
|||
 |
|||||
Type |
Bearing |
Profile |
h |
Weight |
Washer |

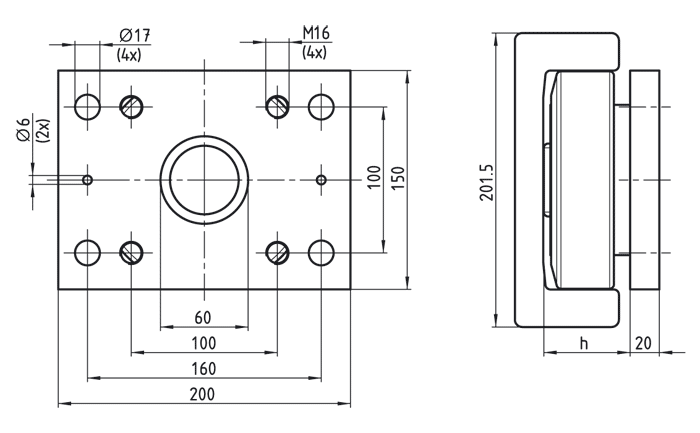

AP 6 |
2.063 |
Standard 6 |
58,5 |
4,0 kg |
DS-6-0,5 DS-6-1,0 |
4.063 |
Standard 6 |
58,5 |
|||
4.463 |
Standard 6 |
58,5-62,5 |
|||
4.080 |
Standard 6 |
69,0 |
|||
4.080 P |
Standard 6 |
62,0 |
|||
PR 2.063 |
PR 6 |
58,5 |
|||
PR 4.063 |
PR 6 |
58,5 |
|||
PR 4.463 |
PR 6 |
58,5-62,5 |
|||
Dimentionsing
Q = Load capacity (N)
L = Load distance to suspension point (mm)
P = Suspension point
A = Bearing distance (mm) recommended 500-1000 mm
Formula
Fmax [N] = (Q * L) / (2 * A)
stat.radial
To avoid wear out in the profile, which is not hardened, the
pressure between bearing and profile should be max.
Pzul = 860 N/mm² for Nb-profiles (St.0-St.6 + PR0-PR6)
Pzul = 750 N/mm² for all profiles except Nb-series.
Here indicated are F maxstat radial + axial for each bearing.
Selection of bearings over the hertzian pressure
Radial Bearing |
Combined Bearing Axial Bearing fix |
Combined Bearing Axial Bearing adjustable |
Combined Bearing Axial Bearing adjustable |
Combined Bearing with eccentric bearing |
Combined Bearing with combined bolt |
FR KN max. stat. radial |
FA KN max. stat. axial |
Profiles |
||
- |
4.052 P |
- |
- |
- |
- |
0,80 |
0,40 |
A |
- |
- |
- |
4.053 |
- |
- |
- |
- |
5,23 |
1,68 |
S |
- |
- |
(PR) 2.054 |
(PR) 4.054 |
(PR) 4.454 |
(PR) 4.072 |
JC 4.054 |
KB (PR) 4.072 |
9,40 |
3,10 |
0 NB |
PR 0 NB |
- |
(PR) 2.055 |
(PR) 4.055 |
(PR) 4.455 |
(PR) 4.073 |
JC 4.055 |
KB (PR) 4.073 |
11,30 (8,59) |
3,73 (2,86) |
1 NB |
PR 1 NB |
(3018) |
(PR) 2.056 |
(PR) 4.056 |
(PR) 4.456 |
(PR) 4.074 |
JC 4.056 |
KB (PR) 4.074 |
11,72 |
3,87 |
2 NB |
PR 2 NB |
- |
- |
4.057 |
4.057 |
4.075 |
- |
- |
(8,92) |
(2,97) |
- |
- |
(3019) |
(PR) 2.058 |
(PR) 4.058 |
(PR) 4.458 |
(PR) 4.076 |
JC 4.058 |
KB (PR) 4.076 |
20,47 (15.57) |
6,76 (5,19) |
3 NB |
PR 3 NB |
(3020) |
- |
4.059 |
4.059 |
4.077 |
- |
- |
(15,47) |
(5,15) |
- |
- |
(2912) |
- |
4.060 |
4.060 |
4.078 |
- |
- |
(16,49) |
(5,49) |
- |
- |
(3100) |
(PR) 2.061 |
(PR) 4.061 |
(PR) 4.461 |
(PR) 4.0784 |
JC 4.061 |
KB (PR) 4.0784 |
21,68 |
7,16 |
4 NB |
PR 4 NB |
- |
(PR) 2.062 |
(PR) 4.062 |
(PR) 4.462 |
(PR) 4.079 |
JC 4.062 |
KB (PR) 4.079 |
30,92 (23,52) |
10,20 (7,84) |
5 NB |
PR 5 NB |
(3353) |
(PR) 2.063 |
(PR) 4.063 |
(PR) 4.463 |
- |
JC 4.063 |
- |
54,02 |
17,80 |
6 NB |
PR 6 NB |
- |
- |
- |
- |
(PR) 4.080 |
- |
KB (PR) 4.080 |
37,81 |
17,80 |
6 NB |
PR 6 NB |
- |
- |
- |
4.089 |
- |
- |
- |
41,71 |
13,91 |
10 |
- |
- |
- |
- |
4.090 |
- |
- |
- |
58,00 |
19,40 |
16 |
- |
- |
- |
- |
4.091 |
- |
- |
- |
84,00 |
28,00 |
18 |
- |
- |
- |
- |
4.092 |
- |
- |
- |
101,50 |
33,90 |
28 |
- |
- |
- |
- |
4.093 |
- |
- |
- |
139,40 |
46,50 |
36 |
42 |
- |
