Combined Bearings
Lifting and handling in a economical way.
|
Flange plates square for
Jumbo Combined Bearings |
|

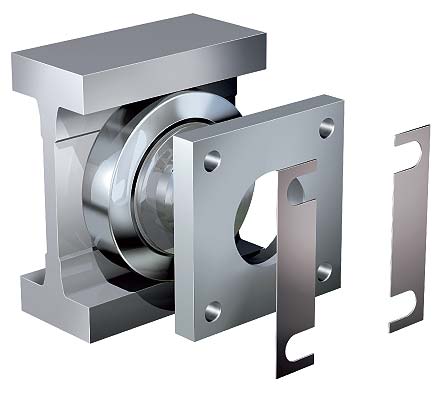

WINKEL flange plates in combination with Combined Bearings are suitable for screw joints
between constructions and guide profiles.
- all flange plates incl. welded in Combined Bearings
- axial adjusting with washers type DS
- all flange plates in corrosion protected version
Special designs on request.
.
|
|
|
Type |
Bearing |
Profile |
h |
Weight |
Washer |

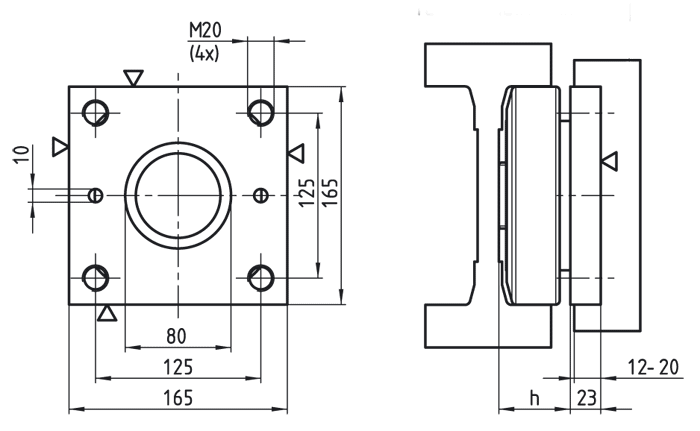

AP 89-Q |
4.089 |
Standard 10 |
55-56 |
4,9 |
DS-89-0,5 DS-89-1,0 |
|
|
Type |
Bearing |
Profile |
h |
Weight |
Washer |

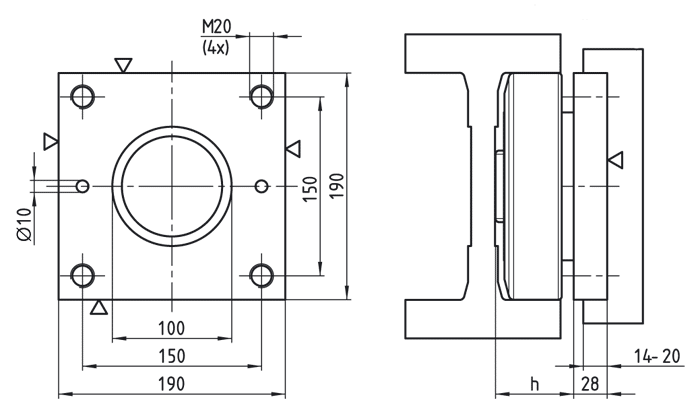

AP 90-Q |
4.090 |
Standard 16 |
64,5-67,5 |
7,9 |
DS-90-0,5 DS-90-1,0 |
|
|
Type |
Bearing |
Profile |
h |
Weight |
Washer |

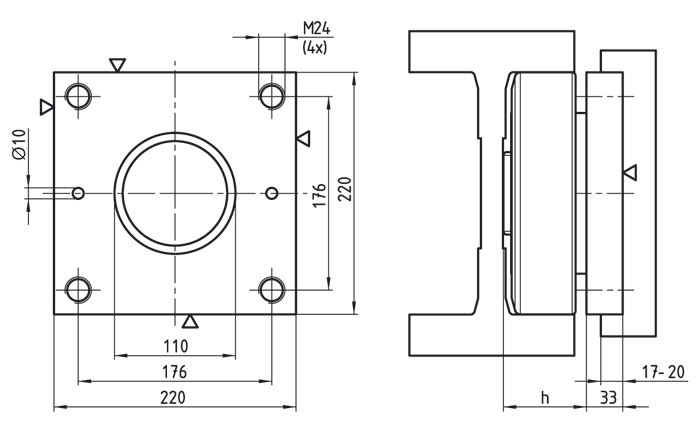

AP 91-Q |
4.091 |
Standard 18 |
74,5-77,5 |
12,5 |
DS-91-0,5 DS-91-1,0 |
|
|
Type |
Bearing |
Profile |
h |
Weight |
Washer |

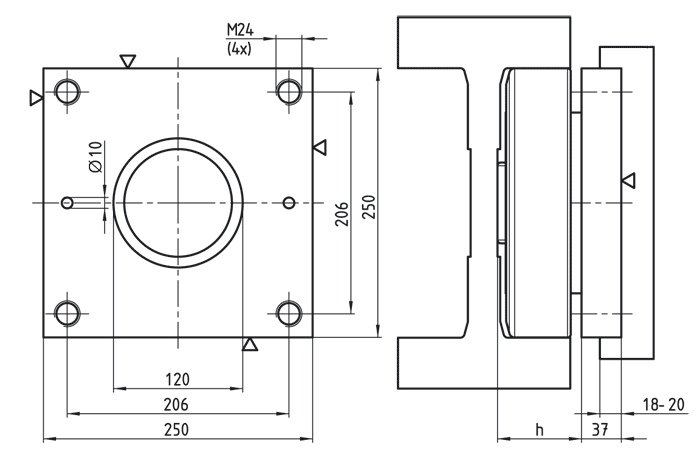

AP 92-Q |
4.092 |
Standard 28 |
77-80 |
18,0 |
DS-92-0,5 DS-92-1,0 |
|
|
Type |
Bearing |
Profile |
h |
Weight |
Washer |
AP 93-Q |
4.093 |
Standard 36
Standard 42 |
89,5-93,5 |
22,0 |
DS-93-0,5 DS-93-1,0 |
|
Dimentionsing
Q = Load capacity (N)
L = Load distance to suspension point (mm)
P = Suspension point
A = Bearing distance (mm) recommended 500-1000 mm
Formula
Fmax [N] = (Q * L) / (2 * A)
stat.radial
To avoid wear out in the profile, which is not hardened, the pressure between bearing and profile should be max.
Pzul = 860 N/mm² for Nb-profiles (St.0-St.6 + PR0-PR6)
Pzul = 750 N/mm² for all profiles except Nb-series.
Here indicated are F maxstat radial + axial for each bearing.
Selection of bearings over the hertzian pressure
|
|
|
Radial Bearing |
Combined
Bearing
Axial Bearing
fix |
Combined
Bearing
Axial Bearing
adjustable |
Combined
Bearing
Axial Bearing
adjustable |
Combined
Bearing with
eccentric
bearing |
Combined
Bearing with
combined
bolt |
FR KN
max. stat.
radial |
FA KN
max. stat.
axial |
Profiles |
- |
4.052 P |
- |
- |
- |
- |
0,80 |
0,40 |
A |
- |
- |
- |
4.053 |
- |
- |
- |
- |
5,23 |
1,68 |
S |
- |
- |
(PR) 2.054 |
(PR) 4.054 |
(PR) 4.454 |
(PR) 4.072 |
JC 4.054 |
KB (PR) 4.072 |
9,40 |
3,10 |
0 NB |
PR 0 NB |
- |
(PR) 2.055 |
(PR) 4.055 |
(PR) 4.455 |
(PR) 4.073 |
JC 4.055 |
KB (PR) 4.073 |
11,30 (8,59) |
3,73 (2,86) |
1 NB |
PR 1 NB |
(3018) |
(PR) 2.056 |
(PR) 4.056 |
(PR) 4.456 |
(PR) 4.074 |
JC 4.056 |
KB (PR) 4.074 |
11,72 |
3,87 |
2 NB |
PR 2 NB |
- |
- |
4.057 |
4.057 |
4.075 |
- |
- |
(8,92) |
(2,97) |
- |
- |
(3019) |
(PR) 2.058 |
(PR) 4.058 |
(PR) 4.458 |
(PR) 4.076 |
JC 4.058 |
KB (PR) 4.076 |
20,47 (15.57) |
6,76 (5,19) |
3 NB |
PR 3 NB |
(3020) |
- |
4.059 |
4.059 |
4.077 |
- |
- |
(15,47) |
(5,15) |
- |
- |
(2912) |
- |
4.060 |
4.060 |
4.078 |
- |
- |
(16,49) |
(5,49) |
- |
- |
(3100) |
(PR) 2.061 |
(PR) 4.061 |
(PR) 4.461 |
(PR) 4.0784 |
JC 4.061 |
KB (PR) 4.0784 |
21,68 |
7,16 |
4 NB |
PR 4 NB |
- |
(PR) 2.062 |
(PR) 4.062 |
(PR) 4.462 |
(PR) 4.079 |
JC 4.062 |
KB (PR) 4.079 |
30,92 (23,52) |
10,20 (7,84) |
5 NB |
PR 5 NB |
(3353) |
(PR) 2.063 |
(PR) 4.063 |
(PR) 4.463 |
- |
JC 4.063 |
- |
54,02 |
17,80 |
6 NB |
PR 6 NB |
- |
- |
- |
- |
(PR) 4.080 |
- |
KB (PR) 4.080 |
37,81 |
17,80 |
6 NB |
PR 6 NB |
- |
- |
- |
4.089 |
- |
- |
- |
41,71 |
13,91 |
10 |
- |
- |
- |
- |
4.090 |
- |
- |
- |
58,00 |
19,40 |
16 |
- |
- |
- |
- |
4.091 |
- |
- |
- |
84,00 |
28,00 |
18 |
- |
- |
- |
- |
4.092 |
- |
- |
- |
101,50 |
33,90 |
28 |
- |
- |
- |
- |
4.093 |
- |
- |
- |
139,40 |
46,50 |
36 |
42 |
- |
|
|
|
|
