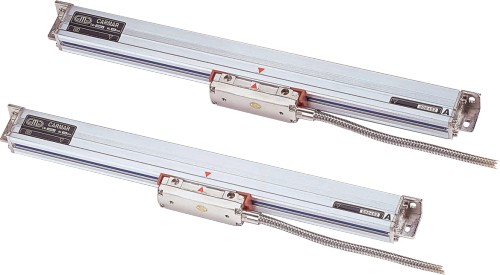

Standard Linear Scale
1
Features:
  1.  High accuracy optical glass scale
  2.  Response speed: over 60 meters per second;
  3.  No intermediate interface is needed over 100 meters long-distance data transmission;
  4. Using 5 sets of bearing, assures excellent repeatability positioning, good sliding and durability;
  5. Multiple-shielding and soft metal cable protection and excellent anti-jamming and water- proof for EMI;
  6. Anode process of Aluminum alloy for etching proof;
  7. Anti-dust sealing is made by special plastics, with lower friction;
  8. Easy installation and maintenance by special design, with good watering-proof and dust-proof;
  9. The sensors adopt the glass precise computation as the measuring benchmark;

Specifications:
  1. Resolution:0.005mm (standard)¡F0.001mm (optional)
  2. Measuring Length (ML):50mm~1000mm
  3. Output signal:5V¡A TTL (standard)
  4. Accuracy: ±(5+L/200) μm
  5. Max. Response Speed: 60 M/min.
Order number:

Res \ ML
50mm
100mm
150mm
200mm
250mm
300mm
350mm
0.005mm
LE0050
LE0100
LE0150
LE0200
LE0250
LE0300
LE0350
0.001mm
LE0050
LE0100
LE0150
LE0200
LE0250
LE0300
LE0350
Res \ ML
400mm
450mm
500mm
600mm
700mm
800mm
900mm
0.005mm
LE0400
LE0450
LE0500
LE0600
LE0700
LE0800
LE09003
0.001mm
LE0400
LE0450
LE0500
LE0600
LE0700
LE0800
LE0900
Res \ ML
1000mm
1100mm
1200mm
1300mm
1400mm
1500mm
1600mm
0.005mm
LE1000
LE1100
LE1200
LE1300
LE1400
LE1500
LE1600
0.001mm
LE1000
LE1100
LE1200
LE1300
LE1400
LE1500
LE1600
Res \ ML
1800mm
2000mm
2200mm
2600mm
2800mm
3000mm

0.005mm
LE1800
LE2000
LE2200
LE2600
LE2800
LE3000

0.001mm
LE1800
LE2000
LE2200
LE2600
LE2800
LE3000
