Machining centers
NC lathes
Grinding machines
Precision machining
Heavy cutting machines
High positioning accuracy
Transfer devices
Precision measure equipment

More Information :

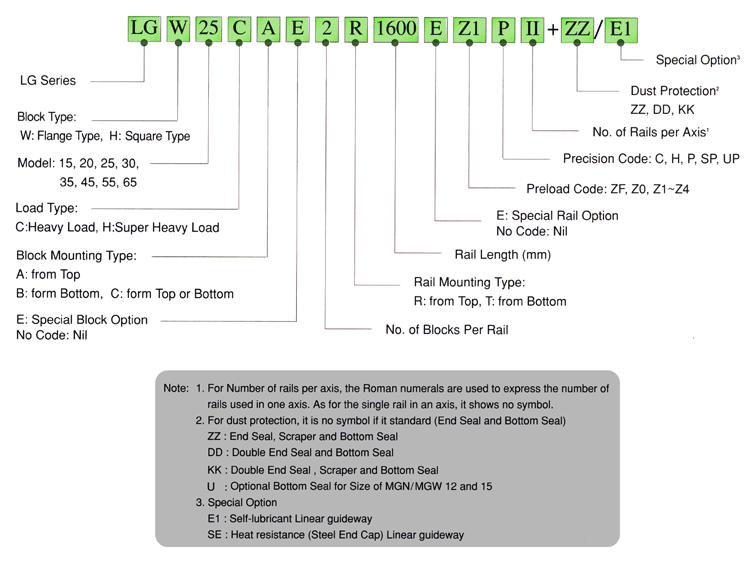

• Model# Guide (non-interchangeable)

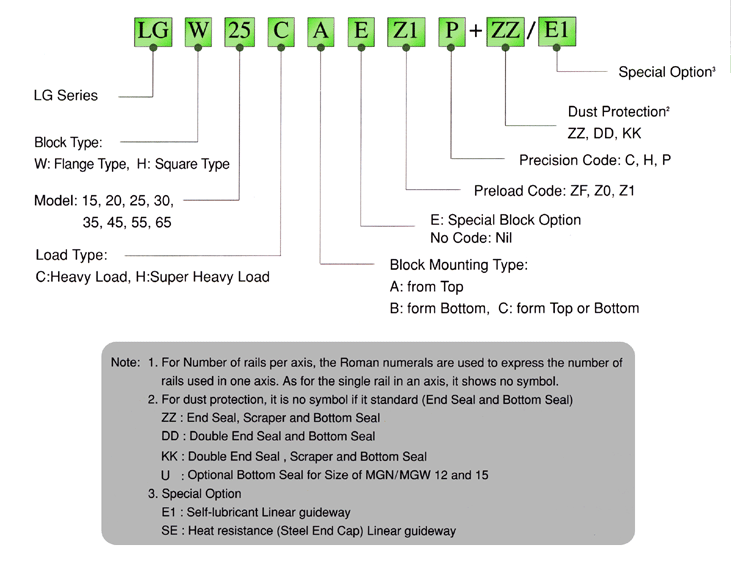

• Model# Guide (interchangeable block)

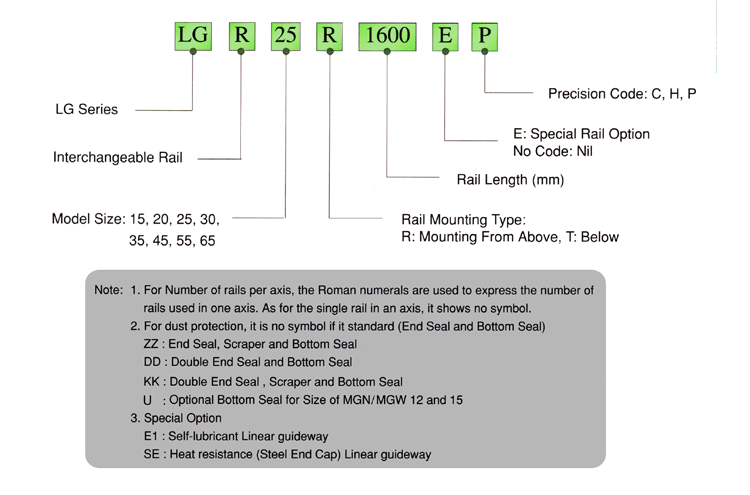

• Model# Guide (interchangeable rail)

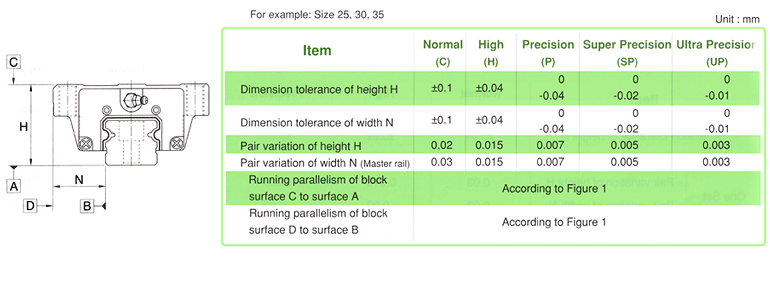

• Accuracy (non-interchangeable)

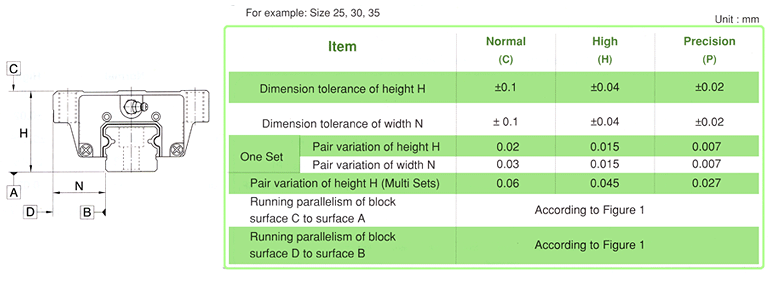

• Accuracy (interchangeable)

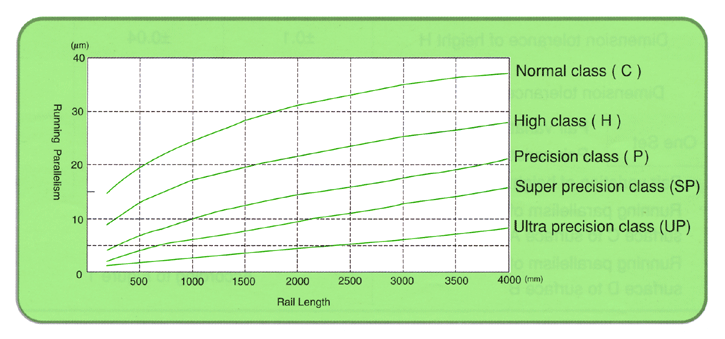

• Accuracy (running parallelism)

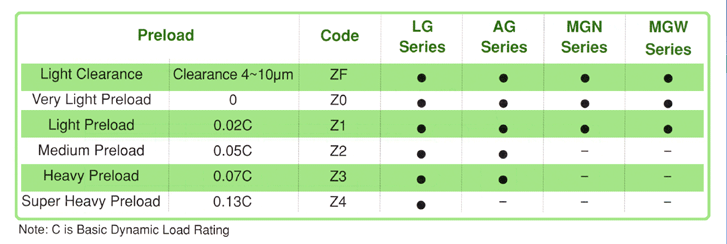

• Preload Codes

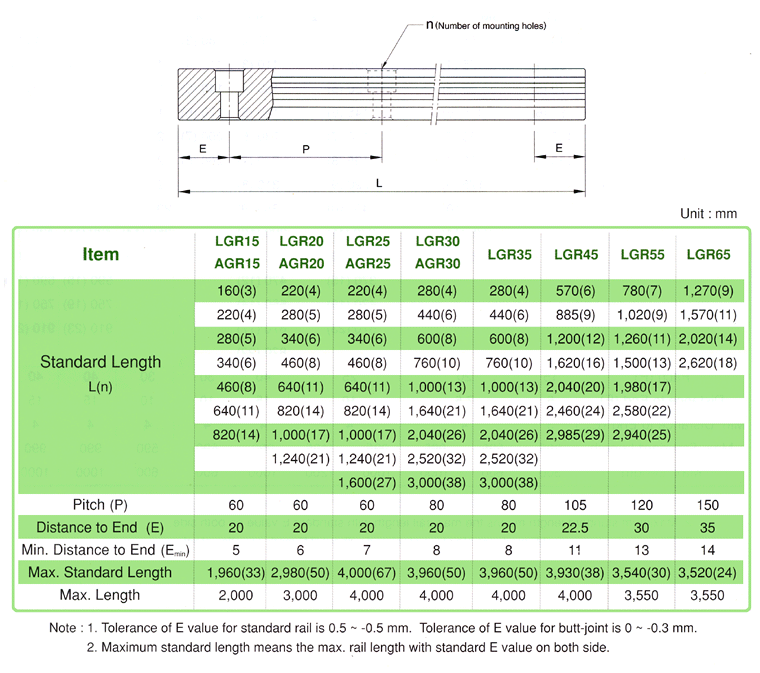

• Length (standard/max)

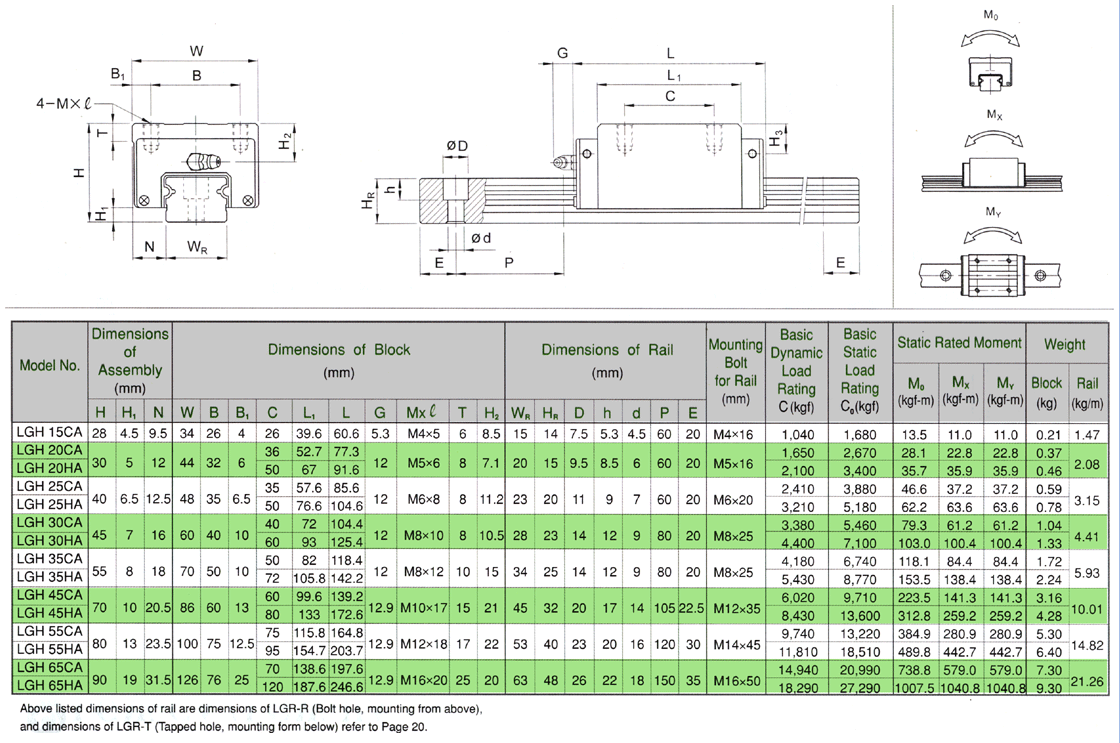

• LGH-CA/LGH-HA

  *tapped hole, mounting from bottom

Downloads:

• Linear Guideway Catalog (PDF)
• Linear Guideway RFQ (PDF)
