Available in NEMA 23, 34 and 42 frame, both H and E Series are high efficiency, low loss hybrid step motors in conventional (round frame) configurations. A selection of industry standard windings and standard options assure the best motor for your application with holding torques up to 4276 oz-in. Select from terminal board connections (via conduit), MS connectors or flying lead connections in waterproof or standard enclosures. Options include shaft keyways or flats, oversized drive shaft, rear shaft extensions and various encoder options. Bipolar or unipolar phase sequencing is also available. will also work with you to design custom features as an economical solution to your application specific requirement.
    Our general purpose hybrid steppers allow you to tailor a motor to your in-plant or OEM application. Select from an array of capabilities to optimize your motion requirements. From common "workhorse" applications to your most demanding velocity and positioning requirements. For increased torque and acceleration, E Series general purpose motors feature our patented Sigmax(R) technology. Both H and E Series motors provide the high speed capability required for rapid traverse applications.

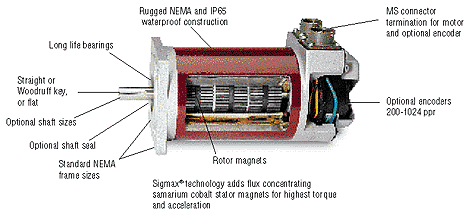

    Unequaled in performance, hybrid step motors have the highest torque per frame size in the industry. A rugged space saving enclosure plus a host of options mean these hybrid steppers offer industrial design, industrial quality and industrial performance for your application.
Features Benefits
Torque production over wide speed range
High quality long life motor
Extensive selection of shaft, end bell, termination, encoder and splashproof options
An array of options to meet your needs
UL recognized models
Safety and acceptability
Wide range of industry standard winding configurations
Match motor performance to your application
Sigmax technology
Flux focusing increases torque
NEMA 23, 34 and 42 frames
Broad selection to meet your application specific requirements
Two year warranty
High quality, dependable operation

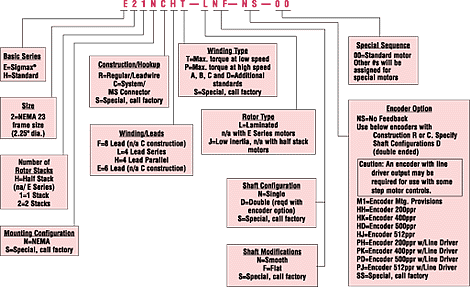

Sample Model Number Code

This chart identifies the components of a typical model number code for conventional hybrid stepper motors.

Selection Overview

GENERAL PURPOSE CONVENTIONAL HYBRIDS

NEMA 23

NEMA 34

NEMA 42

(2.3" square frame)

(3.4" square frame)

(4.2" square frame)

Holding Torque

Holding Torque

Holding Torque

oz-in (Nm)

oz-in (Nm)

oz-in (Nm)

E Series - Sigmax® technology 1 stack

85-126
(0.60-0.89)

223-349
(1.58-1.90)

957-1378
(6.76-9.73)

2 stacks

148-225
(1.05-1.59)

443-676
(3.13-4.75)

1805-2698
(12.75-19.06)

3 stacks

656-995
(4.63-5.40)

2667-3958
(18.84-27.95)

4 stacks

879-1300
(6.21-9.18)




H Series - Standard Hybrid 1/2 stack

36-51
(0.25-0.36)


1 stack

59-87
(0.41-0.61)

158-186
(1.21-1.71)

585-839
(4.13-5.93)

2 stacks

103-156
(0.73-1.10)

314-471
(2.22-3.32)

1118-1652
(7.90-11.66)

3 stacks

466-698
(3.29-4.93)

1529-2651
(10.80-18.72)

4 stacks



624-916
(4.41-6.47)



SPECIAL PURPOSE
CONVENTIONAL HYBRIDS

E "J" Series - Sigmax technology - low inertia rotor 1 stack

77-108
(0.54-0.77)


2 stacks

139-196
(0.98-1.39)




H "J" Series - Standard hybrid - low inertia rotor 1 stack

54-77
(0.38-0.54)


2 stacks

99-141
(0.70-0.99)



* Holding Torque/Rotor Inertia ...a figure of merit for acceleration capability
