MiKrotron Cameras

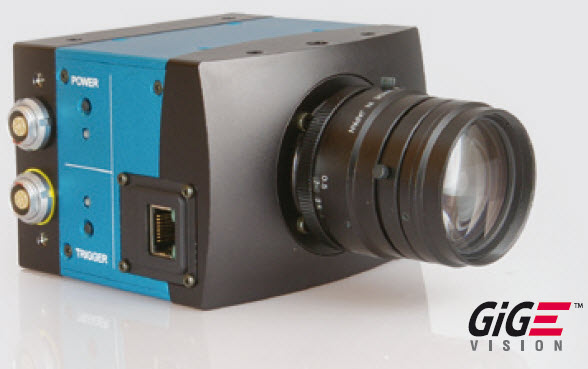

MotionBLITZ EoSens® mini1 Maximale Leistung bei minimalen Abmessungen



    • Extremely light sensitive:
    2,500 ASA monochrome, 2,000 ASA RGB
    • Up to 506 frames per second at
    1,280 x 1,024 pixel resolution

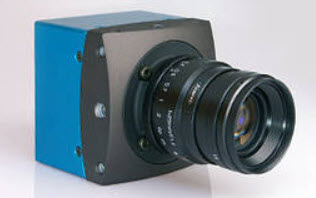

MotionBLITZ EoSens® mini2 Maximale Leistung bei minimalen Abmessungen



    • Extremely fl exible in resolution and speed:
    3 Megapixel resolution up to 523 frames per second
    at 1,696 x 1,710 pixel resolution
    • Stepless adjustable frame rate up to more than
    200,000 frames per second at reduced resolution

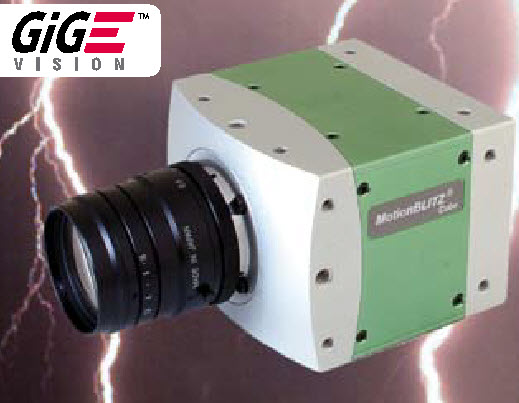

MotionBLITZ® Cube4 High-Speed Recording Camera



    Up to 1,000 fps are capable at the camera’s
    1280(H) x 1024(V) resolution, however increasable
    to impressing 93,000 fps by reduction of the Region
    of Interest (RoI).


MotionBLITZ EoSens ® Cube6 High-Speed Recording Camera System



    • Maximum photo sensitivity:
    2,500 ASA monochrome, 2,000 ASA RGB
    • Up to 506 frames per second at
    1,280 x 1,024 resolution
    • Stepless adjustable frame rate up to more than


MotionBLITZ EoSens ® Cube7 High-Speed Recording Camera System



    Extremely fl exible in resolution and speed:
    3 Megapixel resolution up to 523 frames per second
    at 1,696 (H) x 1,710 (V) pixel resolution
    • Stepless adjustable frame rate up to more than
    200,000 frames per second at reduced resolution

  • Mikrotron Cameras MC1302
1
    -Fast 1,3 MPixel CMOS Imaging Camera
    -Monochrome Base Camera Link® Camera up to 100 fps
    -Resolution: 1280(H) x 1024(V) Pixel
Details
  • Mikrotron Cameras MC1303
2
    -Fast 1,3 MPixel colour CMOS Imaging Camera
    -
    Colour Base Camera Link® Camera up to 100 fps
    -Resolution: 1280(H) x 1024(V) Pixel
Details
  • Mikrotron Cameras MC1308
3
    -Fast 1,3 MPixel monochrome CMOS Imaging Camera
    -
    Monochrome Base Camera Link® Camera up to 100 fps
    -Resolution: 1280(H) x 1024(V) Pixel
Details
  • Mikrotron Cameras MC1309
4
    -Fast 1,3 MPixel colour CMOS Imaging Camera
    -
    Colour Base Camera Link® Camera up to 100 fps
    -Resolution: 1280(H) x 1024(V) Pixel
Details
  • Mikrotron Cameras MC1310
5
    -High Speed 1,3 MPixel monochrome CMOS Imaging Camera
    -
    Monochrome Base Camera Link® Camera up to 500 full fps
    -Resolution: 1280(H) x 1024(V) Pixel
Details
  • Mikrotron Cameras MC1311
6
    -High Speed 1,3 MPixel Colour CMOS Imaging Camera
    -
    Colour Full Camera Link® Camera up to 500 full fps
    -Resolution: 1280(H) x 1024(V) Pixel
Details
  • Mikrotron Cameras MC1318
7
    -High Speed 1,3 MPixel monochrome CMOS Imaging Camera
    -
    Monochrome Full Camera Link® Camera up to 500 full fps
    -Resolution: 1280(H) x 1024(V) Pixel
Details
  • Mikrotron Cameras MC1319
10
    -High Speed 1,3 MPixel Colour CMOS Imaging Camera
    -
    Colour Full Camera Link® Camera up to 500 full fps
    -Resolution: 1280(H) x 1024(V) Pixel
Details
  • Mikrotron Cameras MC1324
11
    -Fast 1,3 MPixel CMOS GigE Vision Imaging Camera
    -
    Monochrome GigE Vision® Camera up to 80 fps
    -Resolution: 1280(H) x 1024(V) Pixel
Details
  • Mikrotron Cameras MC1325
12
    -Fast 1,3 MPixel CMOS Colour GigE Vision Imaging Camera
    -
    Colour GigE Vision® Camera up to 80 fps / 500 filtered fps
    -Resolution: 1280(H) x 1024(V) Pixel
Details

Frame Grabbers

  • Inspecta-5 Camera Link Framegrabber
20
    -Inspecta-5 framegrabber provides up to 1GB for fast
    -528 MB/sec. maximum datarate on PCI-X Bus
    -SDK for Windows® NT 4.0/2000/SP and drivers for HALCON
Details
  • Inspecta -4C Frame Grabber
21
    -The Inspecta-4C frame grabber is another member of the INSPECTA
    -
    Parallel 24-bit RGB true color
    -Function library for DOSX, Windows 9x/ME, Windows NT 4.0/2000 and Linux
Details
  • Inspecta-4D Frame Grabber
23
    -The most striking feature of the INSPECTA frame grabbers is their direct image data transfer at a PCI bus transfer rate of up to 132 MB/sec
    -
    Parallel 24-bit RGB true color
    -Function library for DOSX, Windows 9x/ME, Windows NT 4.0/2000 and Linux
Details
  • Inspecta-4A Frame Grabber
24
    -The most striking feature of the INSPECTA frame grabbers is their direct image data transfer at a PCI bus transfer rate of up to 132 MB/sec
    -
    Parallel 24-bit RGB true color
    -Function library for DOSX, Windows 9x/ME, Windows NT 4.0/2000 and Linux
Details
