	This type test hammer is used to test the concrete compressive strength of construction and bridge... Specifications: test range: 10~60 Mpa impact energy: 2.207J (0.225kgf.m) impact stroke: 75mm friction of slider: 0.5~0.8N spherical radius of impact pole:25+/-1mm calibration value on test anvil:80+/-2 dimension: 278*D54mm weight: 1kg
	HTV-225B type concrete test Specifications: test range: 10~60 Mpa impact energy: 2.207J (0.225kgf.m) impact stroke: 75mm friction of slider: 0.5~0.8N spherical radius of impact pole:25+/-1mm calibration value on test anvil:80+/-2 dimension: 278*D54mm
	The instrument is used to test the mortar compressive strength in general construction Specifications: test range: 1~25 Mpa impact energy: 0.196J (0.02kgf.m) impact stroke: 75mm friction of slider: 0.4~0.6N spherical radius of impact pole:25mm calibration value on test anvil:74+/-2 dimension: 268*D54mm weight: 1kg
	This instrument is applied to measure mortar compressive strength. Traits: 1) center guider bar is made from imported metal materials, wear proof and high precision. 2)the shell is made of high polymer material, relieve product weight, convenience user. Specifications: test range: 1~25 Mpa impact energy: 0.196J( 0.02kgf.m) impact stroke: 75mm friction of slider: 0.4~0.6N spherical radius of impact pole:25mm calibration value on test anvil:74+/-2 weight: 1kg
	HTV-75 belong to light energy tester Specifications: impact energy：0.735J impact stroke：75mm Size：L268mm*D54mm
	HTV-550 is mid type test hammer, used to test the compressive strength of high rise building, bridge and big concrete construction. Parameter: test range: 60~90 Mpa 1. impact energy: 5.5J 2. impact stroke: 100mm 3. tension spring rigidity: 1100N/m 4. calibration values: 83+/-2 5. spherical radius of impact pole:SR=18mm 6. N.W: 1.28kg 7. size: 350*D54mm
	HTV-1000 test hammer is used to test strong concrete compressive strength, like high rise, bridge. Specifications: test range: 50~80 Mpa impact energy: 9.8J (1kgf.m) impact stroke: 140mm friction of slider: 0.5~0.8N calibration value on test anvil:83+/-2 dimension: 486*D65mm weight: 3.5kg
	HTV-3000 is large test hammer with large impact Specifications: Impact energy: 29.43J (3kgf.m) tension spring rigidity: 1.6kg/cm spherical radius of impact pole (SR): 53+/-1mm dimension: 680*320*105mm weight: 8kg

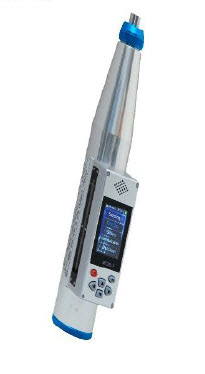

	Test range: 10~60Mpa impact energy: 2.207J spring rigidity: 785N/m impact stroke: 75mm difference from scale: <= 0.5 calibration value: 80+/-2 color LCD with 5 level backlight storage: 300*100*16 test points in plant with uniform curve, at most 20 special curve power source: 3.6V/1300mAH lithium battery battery charger: 5V/2A last work more than 13 hours without voice service USB type connection with PC weight: 1.1kg
	HTV225-W is similar as HT225-V, it's economic type of digital test hammer.
	HTV225-W+ is similar as HT225-V, only the power source is AA battery, more convenient for transportation.
	GWV50+ Rebar Locator Function GW50(+) Rebar diameter range(mm) Φ6-Φ50 Maximum error of cover thickness +/- 1 Cover thickness range(mm) First range(mm) 6-90 Second range(mm) 7-180 Maximum error of cover thickness First range(mm) Second range(mm) 6-59 7-79 +/- 1 60-69 80-119 +/- 2 70-90 120-180 +/- 4 Environmental requirement Working temperature℃ -10~40℃ Relative humudity <90% Power source Alkaline cellX6, >30 hour
