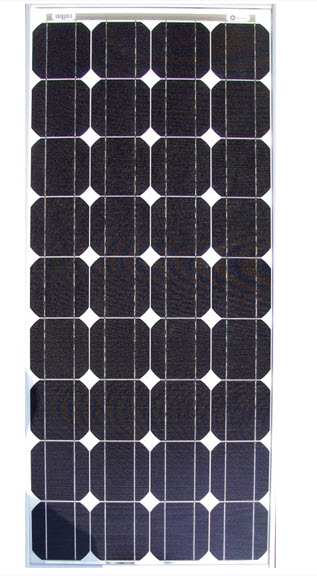

Name: 80-95 Watt Mono-Crystalline Silicon Photovoltaic Module
-Type: TBEA480/85/90/95
-Brief introduction:
Typical electrical characteristics TBEA495 TBEA490 TBEA485 TBEA480

Rated Power (Pmax) 95W 90W 85W 80W
Voltage at Pmax (Vmp) 18.2V 17.9V 17.8V 17.2V
Current at Pmax (Imp) 5.2A 5.03A 4.8A 4.7A
Short circuit current (Isc) 5.7A 5.4A 5.1A 5.1A
Open circuit voltage (Voc) 22.2V 22.1V 22.0V 22.0V
Temperature coefficient of Isc (0.065±0.015)%/ °C
Temperature coefficient of Voc -(80±10)mV/°C
Temperature coefficient of Pmax -(0.5±0.05)%/ °C
NOCT 47±2°C (Air 20°C; Sun0.8kW/m2 ; Wind 1m/s)
Maximum series fuse rating 15A
Maximum system voltage 1000V (IEC 61215 rating)
Dimensions Length x Width x Depth: 1209mm x 537mm x 50mm
Weight 7.7 kg
Cells 36 cells (125mm x 125mm) in a 4 x 9 matrix
connected in series
