LifePo4 Advantage , Life Advantage & Performance Comparision with others.

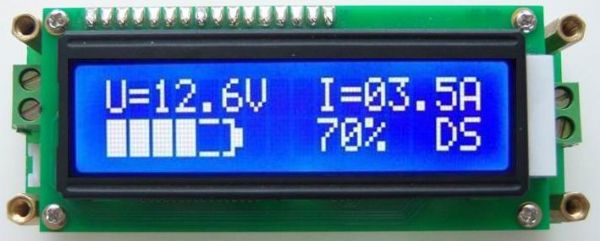

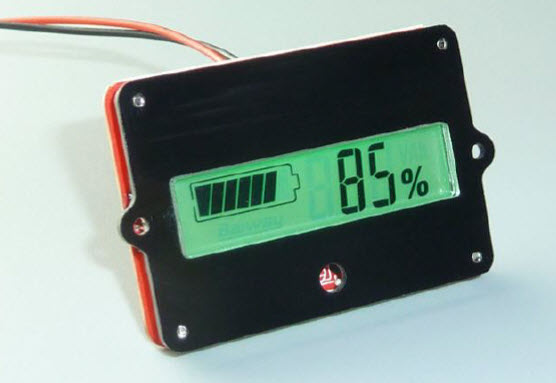

Battery fuel gauge battery monitor

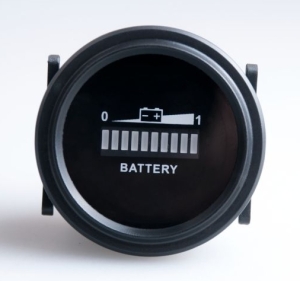

Battery fuel gauge battery monitor

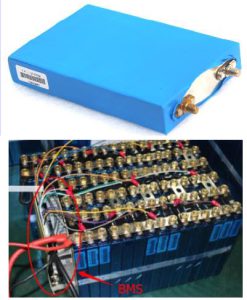

LithiumFerrumPhosphate LiFePo4 cell aluminium casing6Ah,8A,10Ah,12Ah (Square FLat) Very Best in Heat-Dissippation
Clik to See wiring Diagram 36V pack & BMS
Clik to See wiring Diagram 72V pack & BMS

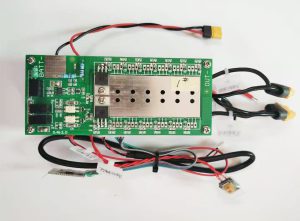

High Performance BMS,PCM for LiFePO4 Battery Packs
Small LiFe BMS D132 Series
Available Models:
4S, 8S, 12S, 16S, 32S
for more info of each model
Charging current: 10A to 25A
Discharging current: 25A
Medium LiFe BMS D131 Series
Available Models:
8S,12S, 16S, 20S, 24S
for more info of each model
Charging current: 50A
Discharging current: 50A
Large LiFe BMS, D138 Series
Available Models:
12S,16S, 20S,24S, 26S,
for more info of each model
Charging current: 80A
Discharging current: 100A
Large LiFe BMS, D170 Series
25A/50A
Available Models: 12S,16S, 24S, 32S
for more info of each model
Charging current: 80A
Discharging current: 250A
BMS SV24S is designed special for LiPo,LiFe and LiTo battery pack applied to storage energy system and Electrical Vehicle including EV,E-Motorcycle,E-Scooter so on. The unit can measure or detect the battery voltage, cell voltage, charge & discharge current, battery temperature, and battery SOC(State of Charge) , displayed with TFT color LCD.
4S to 96S BMS Intelligent : BMS4S96S300A
Q-3147 Hi Volt BMS Low cos

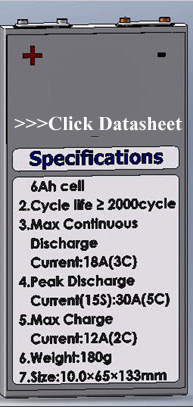

For 6Ah Cell Specification See Below
Lithium Ferrum Phosphate LiFePo4 cell aluminium casing for COOLING , All Encloser with Aluminium casing for Cooling , very Best in Heat dissipate during Discharge with high current .
capacity = 6Ah , with size = 10 x 65 x 133 mm. , Weight = 180 g.
max. continuous discharge current = 18A (3C)
Peak discharge current 15S = 30A (5C)
max. Charge current = 12A (2C)
cycle life > 2,000 cycle
For 8Ah Cell Specification See Below
Lithium Ferrum ( Iron ) Phosphate LiFePo4 cell aluminium casing for COOLING , All Encloser with Aluminium casing for Cooling , very Best in Heat dissipate during Discharge with high current .
capacity = 8Ah , with size = 13 x 65 x 133 mm. , Weight = 220 g.
max. continuous discharge current = 24A (3C)
Peak discharge current 15S = 40 A (5C)
max. Charge current = 16A (2C)
cycle life > 2,000 cycle
For 10Ah Cell Specification See Below
Lithium Ferrum Phosphate LiFePo4 cell aluminium casing for COOLING , All Encloser with Aluminium casing for Cooling , very Best in Heat dissipate during Discharge with high current .
capacity = 10Ah , with size = 16.5 x 65 x 139 mm. , Weight = 270 g.
max. continuous discharge current = 50A (5C)
Peak discharge current 15S = 80A (8C)
max. Charge current = 30A (3C)
cycle life > 2,000 cycle

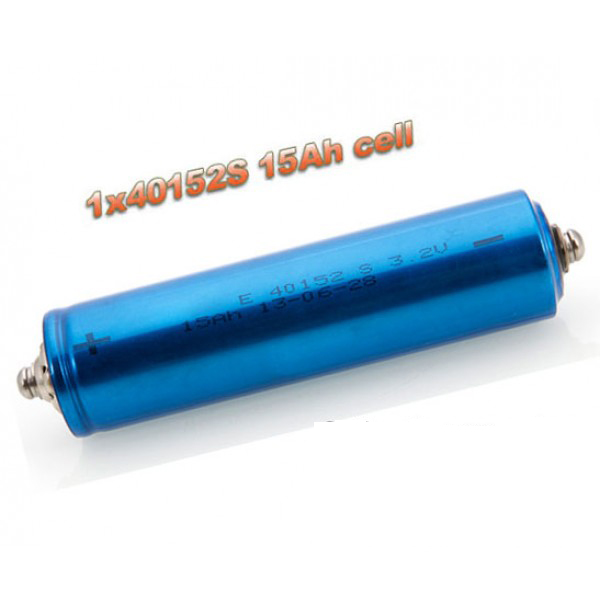

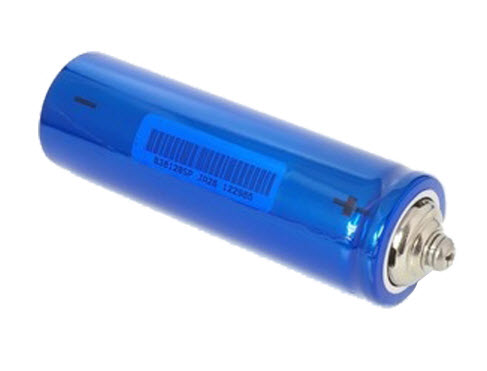

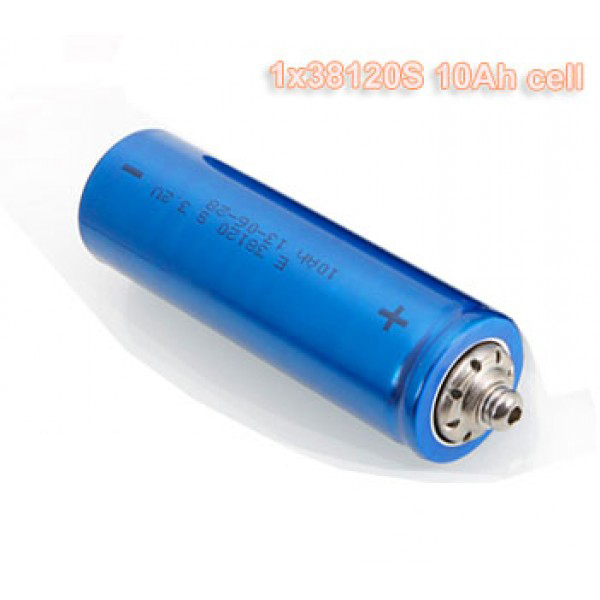

Headway cylindrical cell LiFePo4

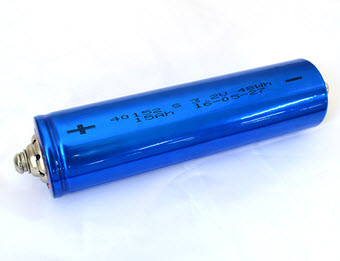

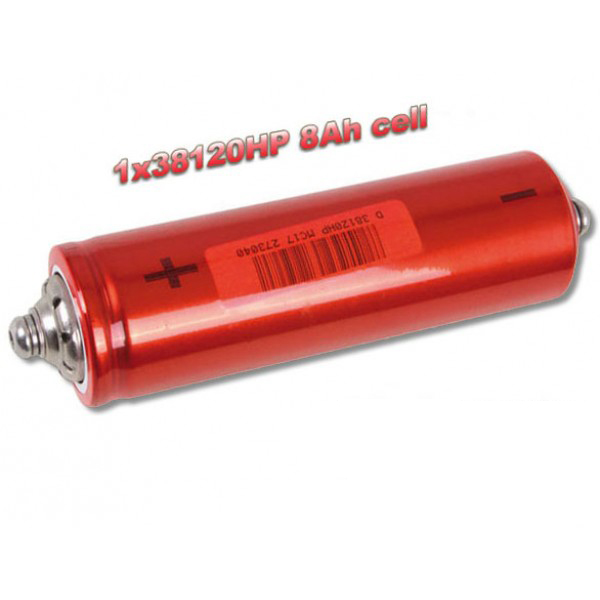

LiFePo4 cylindrical cell

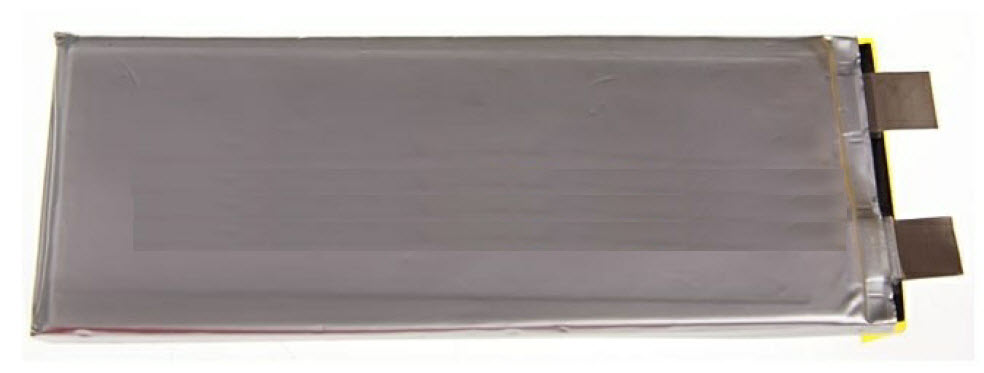

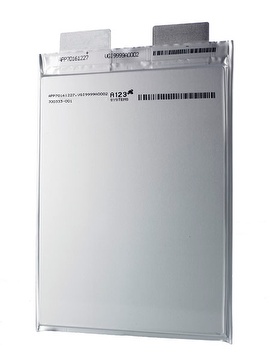

Pouch LiFePo4 cell
Li-ion Cylindrical cell

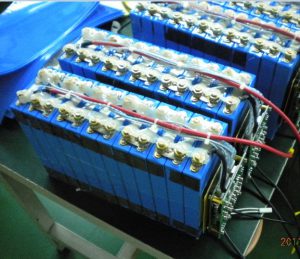

LiFePO4 Battery Pack

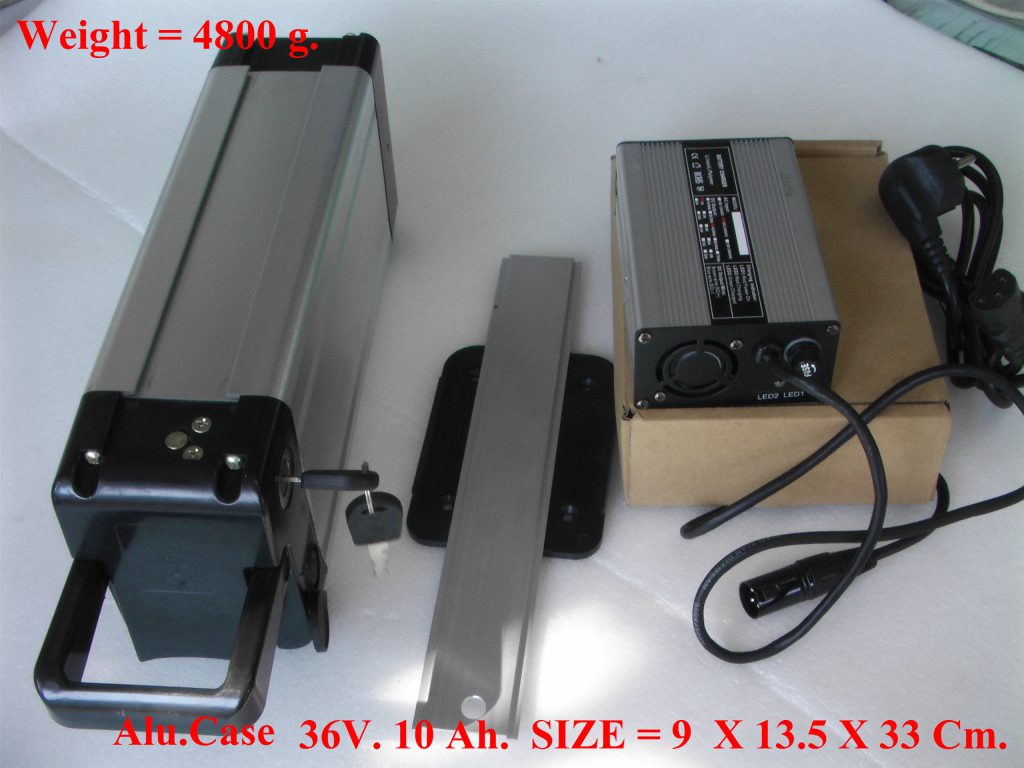

GM Aluminium Casing
Water Bottle LiMn
Lithium Battery Water Bottle Style
Various Type of Battery Case

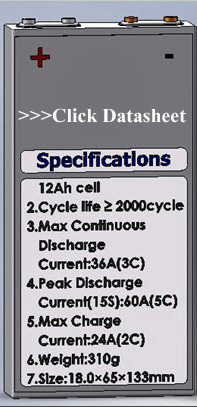

For 12Ah Cell Specification See Below
Lithium Ferrum Phosphate LiFePo4 cell aluminium casing for COOLING , All Encloser with Aluminium casing for Cooling , very Best in Heat dissipate during Discharge with high current .capacity = 12Ah , with size = 18 x 65 x 133 mm. , Weight = 324 g.max. continuous discharge current = 60A (5C)Peak discharge current 15S = 96A (8C)max. Charge current = 32A (2C)
cycle life > 2,000 cycle

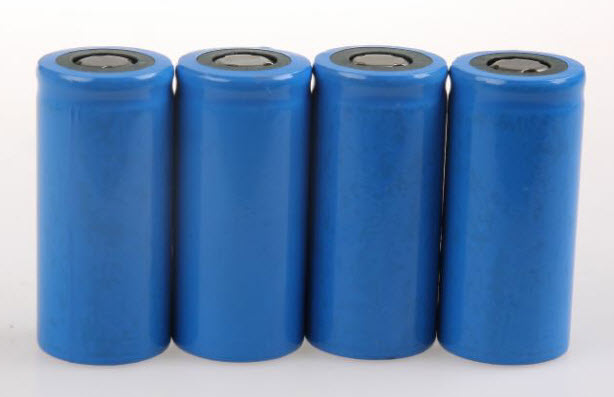

Special Product(OEM) Lifepo4 LR-32700 3.2V 5Ah Cell.
– Material :LiFePO4
– Typical capacity : 5AH
– Nominal Volt :3.2V
– Dimension: 32x 70mm
– N.W : 144g
– 2500 cycles to 80% with 100% DOD under normal temperature
Special Product(OEM) Lifepo4 KHY-9059156 6Ah Cell.
– Material :LiFePO4
– Typical capacity : 6AH
– Nominal Volt :3.2V
– Dimension: 156x59x9 mm
– N.W : 152g
– 2500 cycles to 80% with 100% DOD under normal temperature
Special Product(OEM) LifePO4 3.2V 20Ah Cell.
– Material :LiFePO4
– Typical capacity : 20AH
– Nominal Volt :3.2V
– Dimension: 22x 90X148mm
– N.W : 550g
– 2800 cycles to 80% with 100% DOD under normal temperature
