Detail Specifications:
Product Model: |
Shrinker-2010 |
| Frame: |
Aluminium alloy 6061 T6 |
| Rim: |
Al alloy twin wall and CNC side wall |
| Tyres: |
12"x2.25", pneumatic |
| Spokes: |
stainless steel |
| Brakes (Front/Rear): |
V-brakes |
| Gears: |
Single speed |
| Chain: |
Rust resistant |
| Motor: |
36V/200W, brushless motor |
| Battery: |
36V7AH Li-on battery |
| Charger: |
36V1.35A DC, 100-240VAC |
| Max Speed: |
25 km>

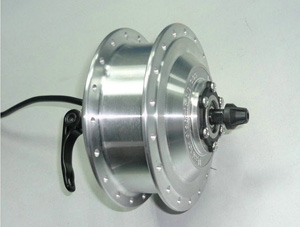

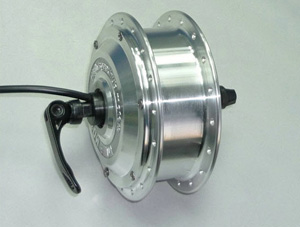

250w hub motor quick release style is designed for electric bicylces. If you want to coververt your bike to electric bicycle, this quick release hub motor is front driver. The nominal voltage is 24V and we can make it 36V 250W.It is a high speed brushless planetary gear motor which is light weight and can creat big torque.
E-bike conversion kit hub motor front diver
Model: QB02-A,the front wheel hub motor brushless for electric bicylces.
Rated Voltage: 24V/36V
Rated Power: 250W
Motor diameter: 143MM
Motor Width: 78MM
Weight:2.8 kg/set
Dropout size:100mm (quick release hub motor)
Application:36 spoke holes,160MM—180MM disc brake,axis length 114mm
Used for electric bike conversion kit 16 inch to 28 inch wheel duoble rim |
|
|
