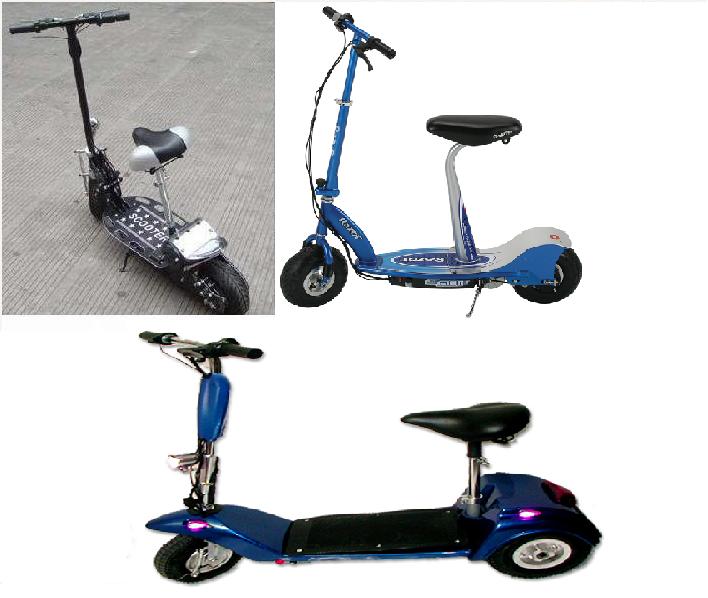

Electric Scooter Hub Motors รถสกูตเตอร์ไฟฟ้า,รถ 3 ล้อไฟฟ้า,รถ 3 ล้อไฟฟ้าขนาดเล็ก,รถสามล้อ 4 ไฟฟ้า,Segway 2 ล้อ

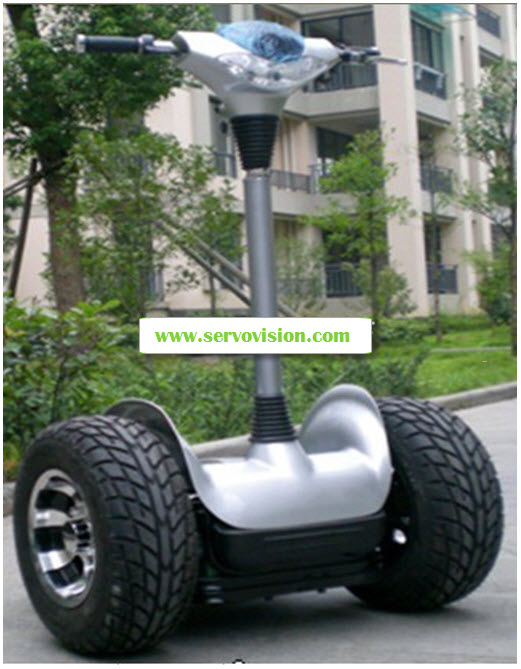

( 2 Wheel_SegWay) BIG Foot Segway, Segway ล้อใหญ่,Segway กำลังสูง ,Off -Road Segway high torque Segway,
 |

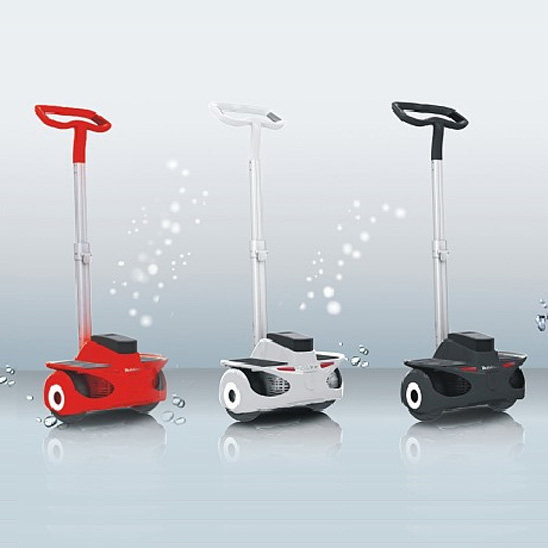

SPECIFICATION Model:Robin-M1 |
Max cruise speed 20km/h |
Min turning radius 0 |
Net Weight 18.5kg |
Volume 0.15cbm |
Dimension 460*320*900mm(scalable) |
Distance(after single charging) 20-30km |
Charging time 1-3h |
Max load 150kg |
Max climb capability 15 degree |
Battery lithium |
Lifetime of battery 3-5years |
warranty 1 year or 2000km |
Full lifetime 35000km |
voltage 100v-240v,for global use |
Power 1300watts |
|
ACCESSORIES |
Remote key ,Charger, screwdriver |
User manual ,Teaching DVD |
|
| <<CLIK>>Robin-M1 personal transporter Function&Characteristic |
|
 |
| City Model EC23 |
1.Load capacity: ≤100kg/220lbs
2.weight:50kg/110lbs
3.Platform height: 235mm/9.25in.
4.Tires: 3.50-10
5.Ground clearance:100 mm/3.94in.
6.Dimensions: 770X700X1280mm
30.31X27.55X50.39in.
7.Turning radius: 0m
8.Tire pressure: 25PSI
9.Charger voltage: 100-250V,50-60HZ(adjustable)
10.Battery:48V,13.2-16AH(LiFePO)
11.Charger time:2-4h
12.Range: 40～60 Km/24.8～37.2 Mile
13.Packing size:842*548*655 mm 33.14*25.74*25.78in.
14.Lading: 224pcs/4OHQ 84 pcs/20FCL Motor Power :350W Max Speed:12km/h |
| |
|
 |

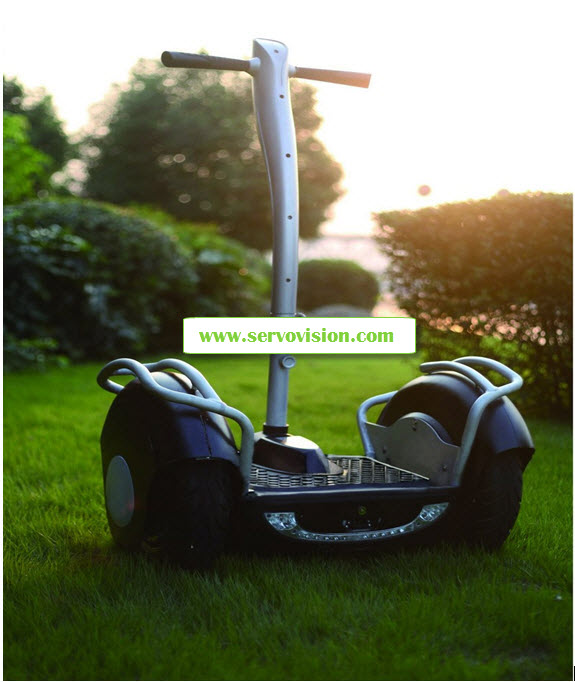

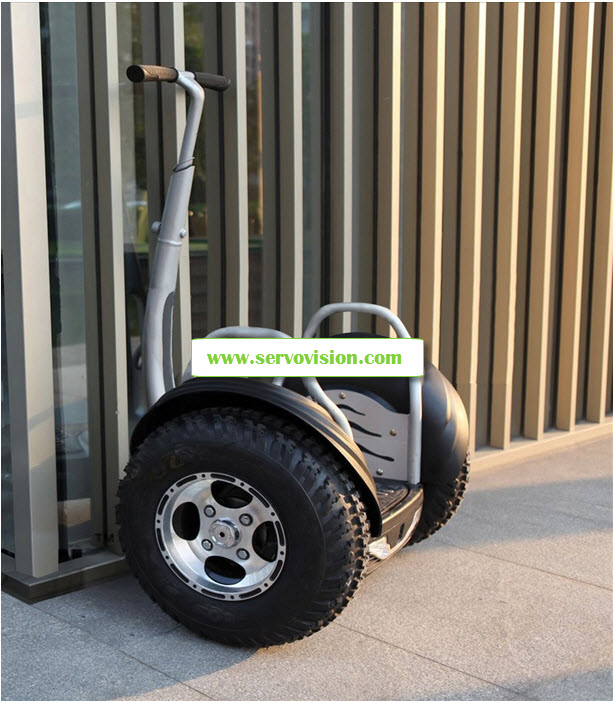

| Off-road EC24 |
1.Load capacity:≤120kg/264lbs
2.Weight:56kg/12Lbs
3.Platform height:245mm/9.65in
4.Tires: 20*6-10 or 21*7-10
5.Ground clearance:110 mm/4.33in.
6.Dimensions: 830*720*1300 mm
32.67X28.34X51.18in.
7.Turning radius: 0m
8.Tire pressure: 25PSI
9.Charger voltage: 100-250V,50-60HZ(adjustable)
10.Battery:48V,13.2-16AH(LiFePO)
11.Charger time:2-4h
12.Range: 40～60 Km/24.8～37.2 Mile
13.Packing size:855*755*690mm 33.66*29.72*27.16in.
14.Lading: 126pcs/4OHQ 54pcs/20FCL
Motor Power :350W Max Speed:12km/h
|
| |
|
 |
| EC25 |
1.Load capacity:≤130kg/286lbs
2.Weight:80kg/176.0Lbs
3.Tires: 210/7-10(front)
: 9X3.50-4(rear)
4.Dimensions: 800X780X1270mm
31.49X30.78X50.00in.
5.Motor: 500W*2 (brushless) Max Speed: 28km/h
6.Charger voltage: 100-250V,50-60HZ(adjustable)
7.Battery:38V,14AH*3(Lead Acid)
8.Charger time:4-8h
9.Range: 35～50Km/21.8～37.2 Mile
10.Packing size:855X850X580mm 33.66*33.46*22.83in.
11.Lading: 112pcs/4OHQ 42pcs/20FCL |
| |
|
 |

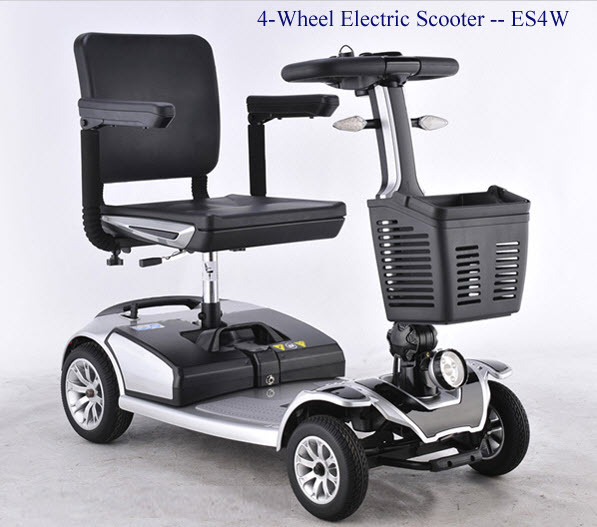

Specifications:
- Speed: 8km/h Battery Pack: 24V20AH Portable Travel Range: 28km LED Lights: front/rear/turning Turn Radius: 110cm Climb Degree: 15% Base Clearance: 6.8cm Vehicle weight: 36kg
- Wheel diameters: 18.3cm/front; 23.3cm/rear
|
 |

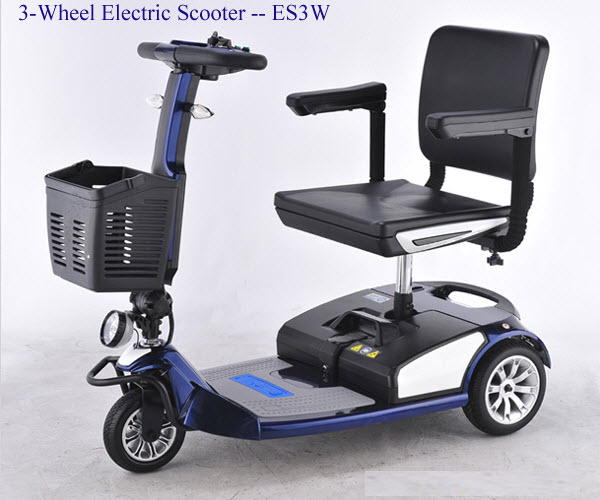

Specifications:
- Speed: 8km/h Battery Pack: 24V20AH Portable Travel Range: 28km LED Lights: front/rear/turning Turn Radius: 110cm Climb Degree: 15% Base Clearance: 6.8cm Vehicle weight: 36kg
- Wheel diameters: 18.3cm/front; 23.3cm/rear
|
Electric Scooter Hub Motors (Super Integrated)
|
มอเตอร์ล้มไฟฟ้าสำหรับสกูตเตอร์,รถยืน,รถ2ล้อขนาดเล็ก |
มอเตอร์ล้อ(Hubmotor) 16 นิ้ว |

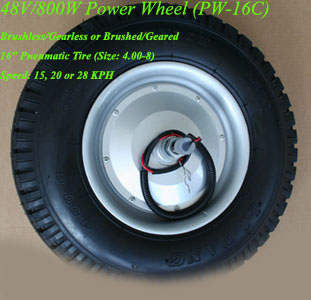

Model: PW16C -- 16" Motor Wheel
Voltage:48V (Brushless)
Power Rate:800W
Weight: 13Kgs Drawing(PDF)
Motor Performance Curve(PDF)
|
มอเตอร์ล้อ(Hubmotor10นิ้ว |
Model: PW-10S -- 10" Scooter Motor (brush/gear)
Built-in EMB Parking Brake
Manual Brake Release
Easy Replaceable Tire Design
Input Voltage: 24 VDC
Output Power: 300W
Weight: 7.7Kgs
Drawing(PDF)
|
|
 |
|
|
